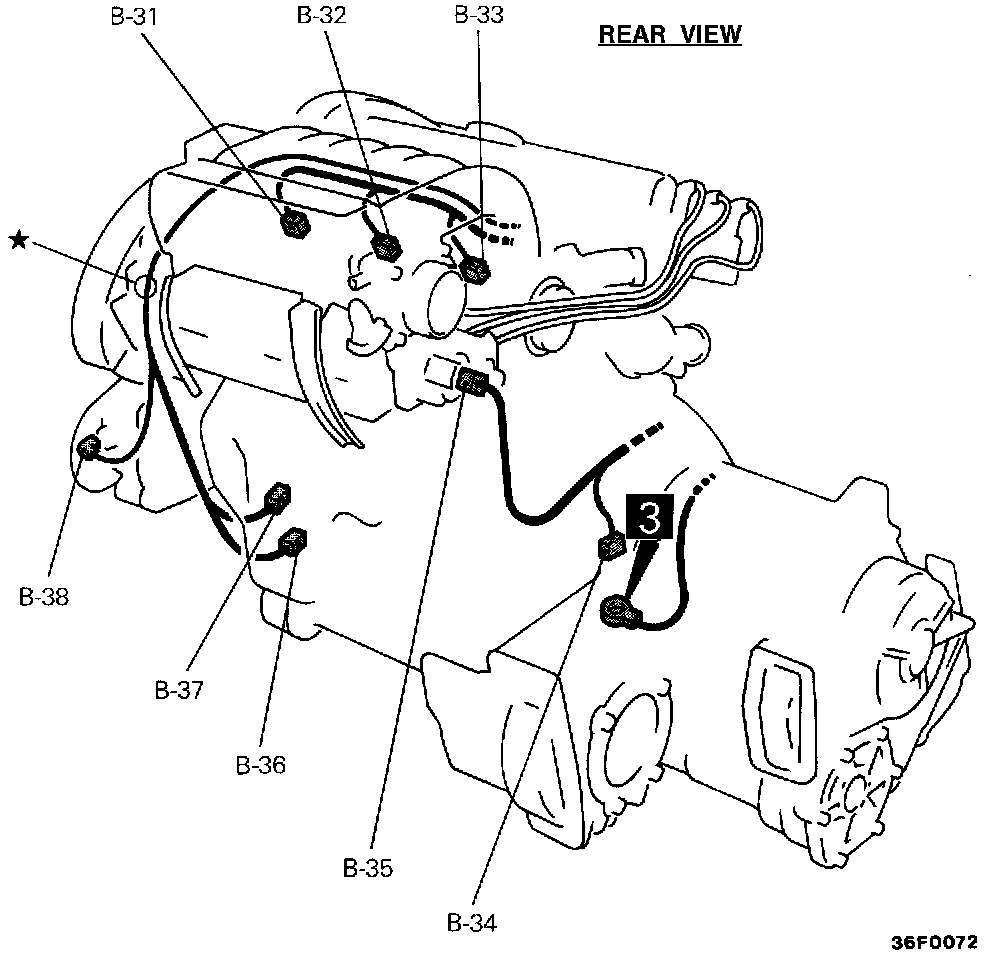

B Connectors - Engine And Transaxle <DOHC-A/T> (Part 1 Of 2):




B Connectors - Engine And Transaxle <DOHC-A/T> (Part 2 Of 2):






B-O1 Engine coolant temperature gauge unit
B-02 Engine coolant temperature sensor
B-03 -
B-04 -
B-05 Throttle position sensor
B-06 Control wiring harness and oil pressure wiring harness combination
B-07 Control wiring harness and injector wiring harness combination
B-08 Knock sensor
B-09 Variable induction servo motor (with intake control valve position sensor)
B-10 Variable induction servo motor (with intake control valve position sensor)
B-11 Injector No.5
B-12 Injector No.3
B-13 Injector No.1
B-14 Ignition coil
B-15 Capacitor
B-16 Left bank heated oxygen sensor (front)
B-17 Generator
B-18 Generator
B-19 Right bank heated oxygen sensor (front)
B-20 Magnetic clutch
B-21 Power transistor
B-22 Power transistor
B-23 Starter motor
B-24 Starter motor
B-25 -
B-26 Park/Neutral position switch
B-27 ELC-4 A/T control solenoid valve
B-25 -
B-29 Volume air flow sensor (with intake air temperature sensor and atmospheric sensor)
B-30 Control wiring harness and battery cable combination
B-31 Injector No.2
B-32 Injector No.4
B-33 Injector No.6
B-34 Speed sensor
B-35 Idle air control motor (stepper motor)
B-36 Oil pressure gauge unit
B-37 Oil pressure switch
B-38 Power steering pressure switch
B-39 -
B-40 Camshaft position sensor
B-41 Crankshaft position sensor
B-42 Kickdown servo switch
B-43 A/T fluid temperature sensor
B-44 Right bank heated oxygen sensor (rear)
B-45 Left bank heated oxygen sensor (rear)

Remarks
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
