A Connectors - Engine Compartment Harness

A Connectors - Engine Compartment (Part 1 Of 2):

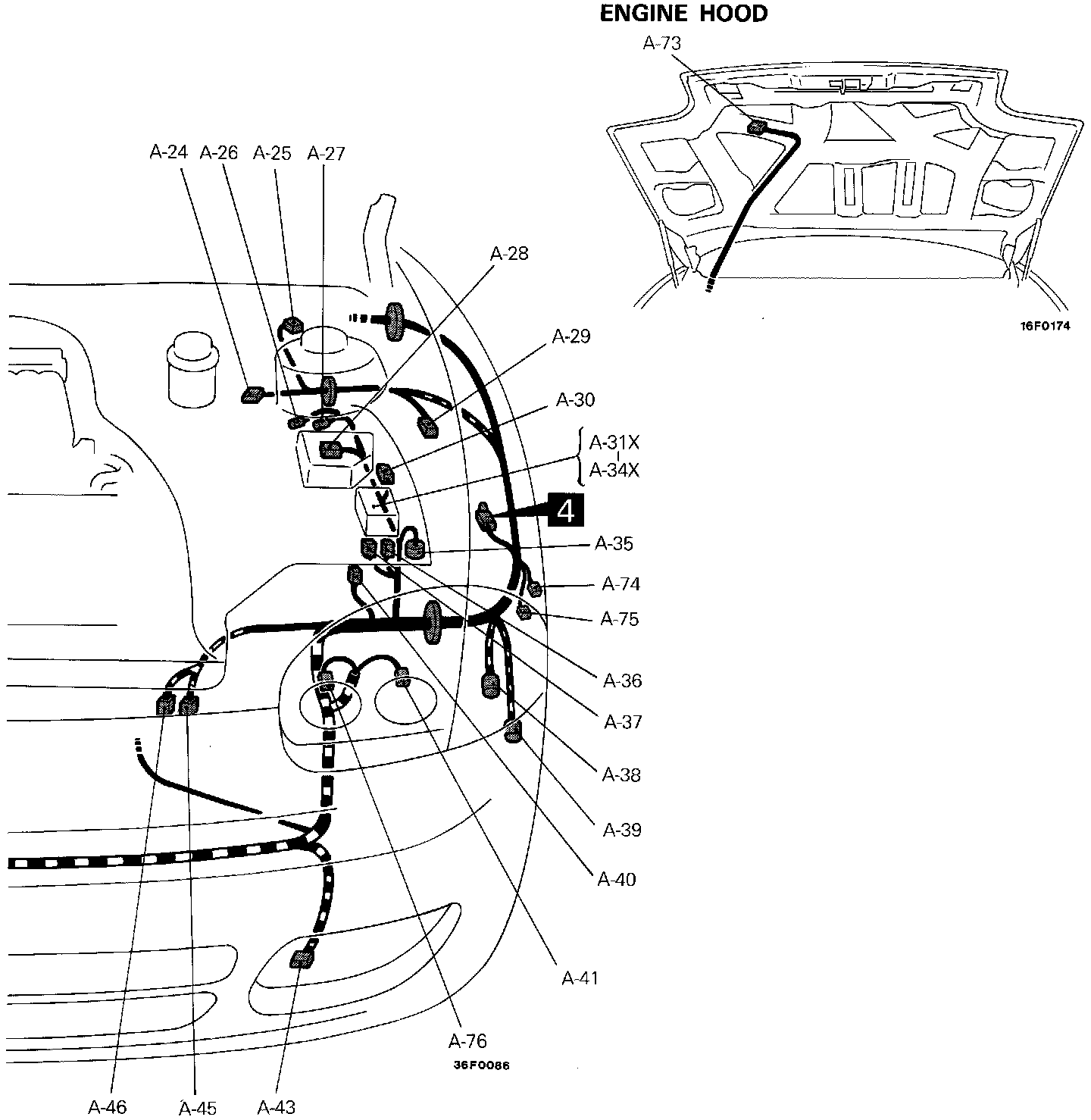

A Connectors - Engine Compartment (Part 2 Of 2):

A-01X to A-11X Refer to CENTRALIZED JUNCTION
A-O1X Headlight relay
A-02X ABS power relay
A-03X Foglight relay
A-04X Radiator fan motor relay (LO)
A-05X Taillight relay
A-O6X Horn relay
A-o7X Radiator fan motor relay (HI)
A-08X -
A-09X Starter relay
A-1OX Generator relay
A-11x IOD or Storage connector
A-12 ABS front speed sensor (RH)
A-13 ECS front shock absorber (RH)
A-14 Washer fluid level sensor
A-15 Front wiper motor
A-16 Engine speed detection connector
A-17 Fuel pump check connector
A-18 Ignition timing adjustment connector
A-19 Front washer motor
A-2O Evaporative emission purge solenoid
A-21 EGR solenoid
A-22 EGR temperature sensor
A-23 -
A-24 Brake fluid level sensor
A-25 ECS front shock absorber (LH)
A-26 Theft-alarm horn
A-27 Theft-alarm horn
A-28 Auto-cruise vacuum pump
A-29 ABS front speed sensor (LH)
A-30 4WS fluid level sensor
A-31X to A-34X Refer to CENTRALIZED JUNCTION
A-31X Condenser fan motor relay (HI)
A-32X -
A-33X Magnetic clutch relay
A-34X Condenser fan motor relay (LO)
A-35 Dual pressure switch
A-36 Air conditioning relay box
A-37
A-38 SRS front impact sensor (LH)
A-39 Front combination light (LH)
A-4O Inspection light switch
A-41 Headlight (LO, LH)
A-42 -
A-43 Fog light (LH)
A-44 -
A-45 Condenser fan motor
A-46 Condenser fan motor
A-47 Horn
A-50 Horn
A-51 Fuel pump resistor
A-52 -
A-53 -
A-54 Pulse generator
A-55 Radiator fan motor
A-56 Engine coolant level sensor
A-57 -
A-58 Fog light (RH)
A-59 -
A-60 -
A-61 Headlight (LO, RH)
A-62 Front combination light (RH)
A-63 SRS front Impact sensor (RH)
A-64 ABS hydraulic unit
A-65 ABS hydraulic unit
A-66 Hood switch
A-67 Front wiring harness and control wiring harness combination
A-68 Diode (for ABS circuit)
A-69 Resistor
A-70 Turbocharger waste gate solenoid
A-71 Fuel pressure solenoid
A-72 Control wiring harness and solenoid valve harness combination
A-73 Inspection light
A-74 Daytime running light control unit
A-75 Upper beam relay
A-76 Headlight (HI, LH)
A-77 Headlight (HI, RH)
A-78 No connection

Remarks
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
