Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Vehicle Harness Without Radio & Tape Player >> Part 1 of 2

Part 1 of 2

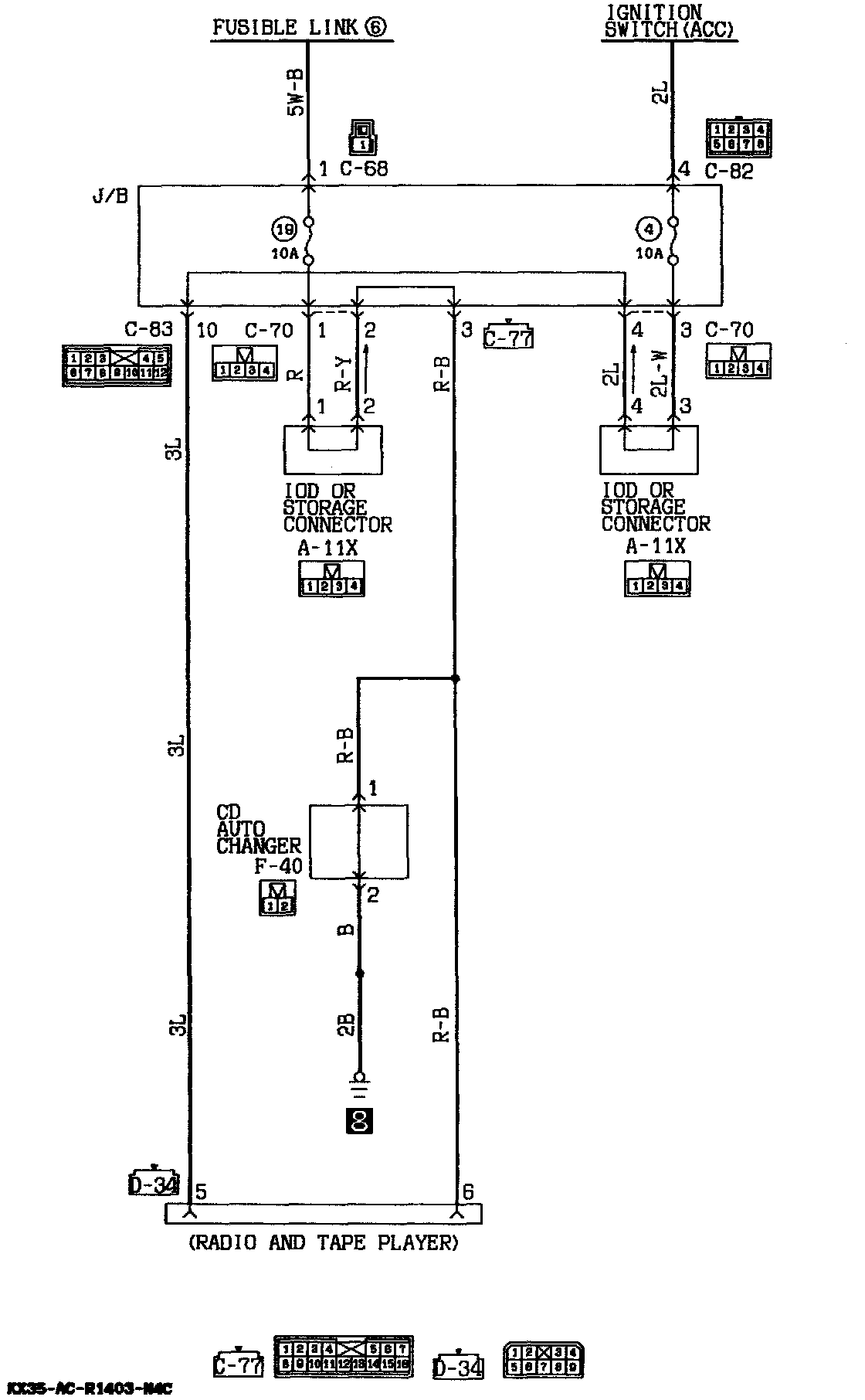

Vehicles Harness Without Radio And Tape Player (Part 1 Of 2):



Vehicles Harness Without Radio And Tape Player (Part 2 Of 2):
