Excessive or Inadequate Delay

1. Verify delay as follows:
a. Minimum delay is 1/2 to 2 seconds.
b. Maximum delay is 15 to 25 seconds.
2. If there is excessive delay or no variations in delay, remove wiper motor wiring harness while motor is parked in Off position.

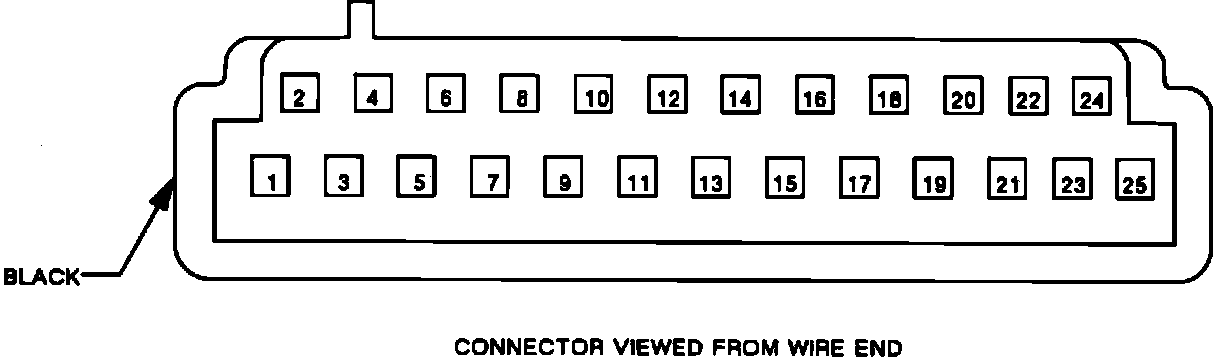

Fig. 21 Body Controller 25-way Connector:

3. Remove 25-way (Black) body controller connector.
4. Set wiper control to maximum delay position.
5. With ignition switch in On position, measure voltage between terminal 9 and body ground.
6. If voltage is present, remove wiper motor circuit fuse.
7. If no voltage is present, set wiper control switch to minimum delay position and measure voltage between terminal 9 and body ground. If no voltage is present, check for an open circuit in the intermittent wipe wiring harness.
