Wipers/Washers - Wiring Diagram Revision
NUMBER: 08-69-94BGROUP: Electrical
DATE: Dec. 9, 1994
REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS**
Models:
1994 LeBaron, Spirit, Acclaim, Shadow and Sundance - Publication No. 81-270-4101
DESCRIPTION OF CHANGES

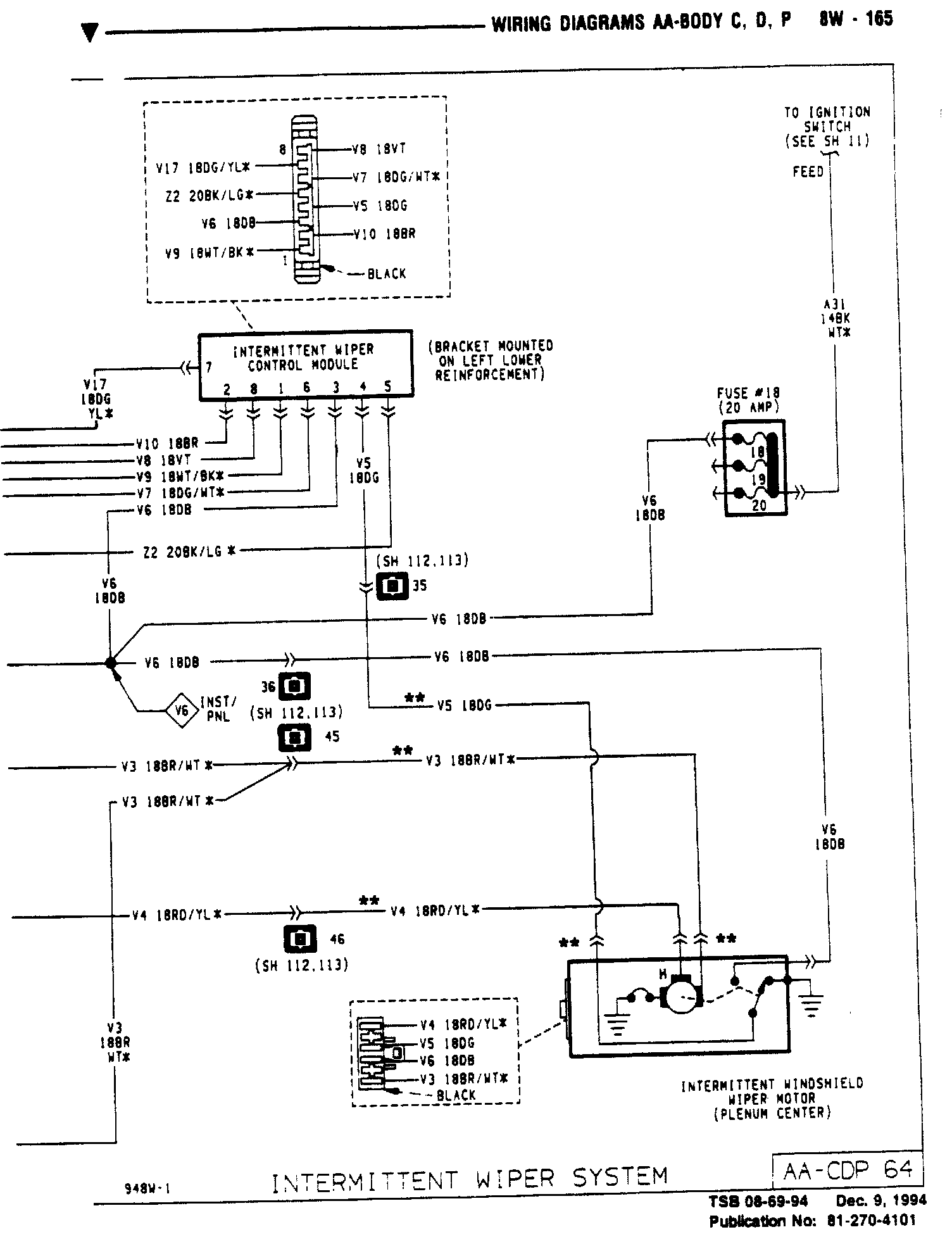

Intermittent Wiper System
8W-165
