Front Door Stationary Glass Channel Weatherstrip Replacement

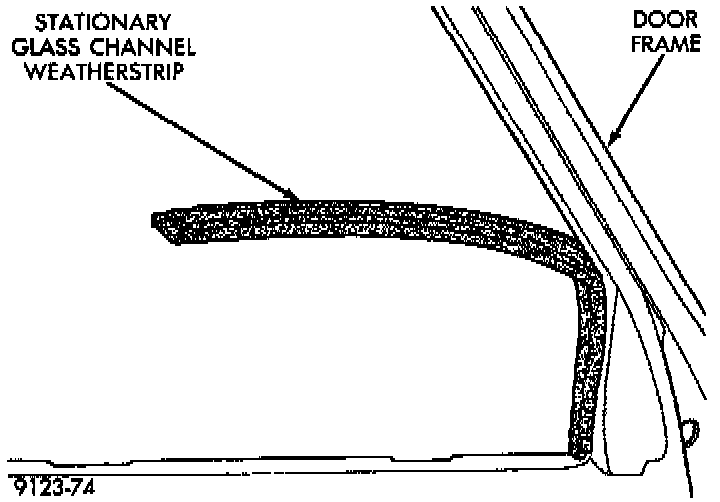

Front Door Stationary Glass Channel Weatherstrip:





REMOVAL
1. Remove stationary glass.
2. Pull weatherstrip from door frame channel.

INSTALLATION
Loosen outside rear view mirror if necessary, and reverse the removal operation.
