Front Door Glass Replacement

1. Remove door trim panel.

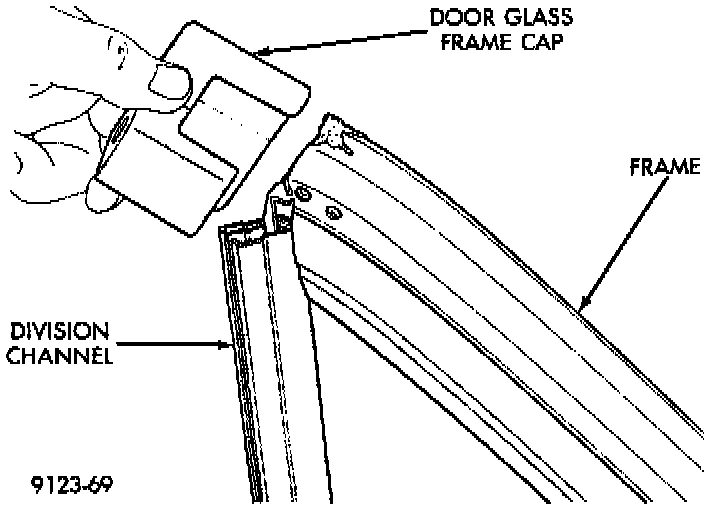

Door Glass Frame Cap:

2. Remove window flame cap from above stationary glass wing.

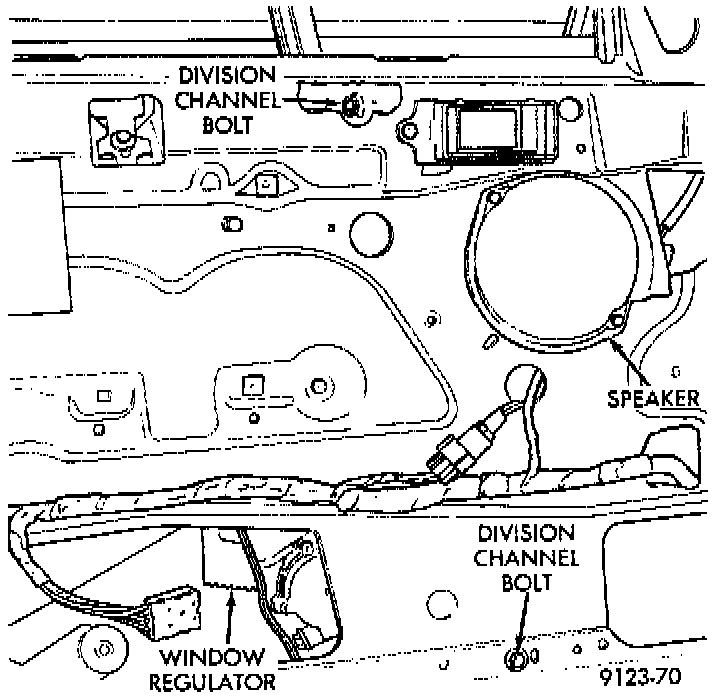

Division Channel Bolts:

3. Remove bolts holding division channel to inner door panel.
4. Push door glass forward to disengage window regulator roller from lift channel on glass.
5. Lift glass upward from opening at top of door.

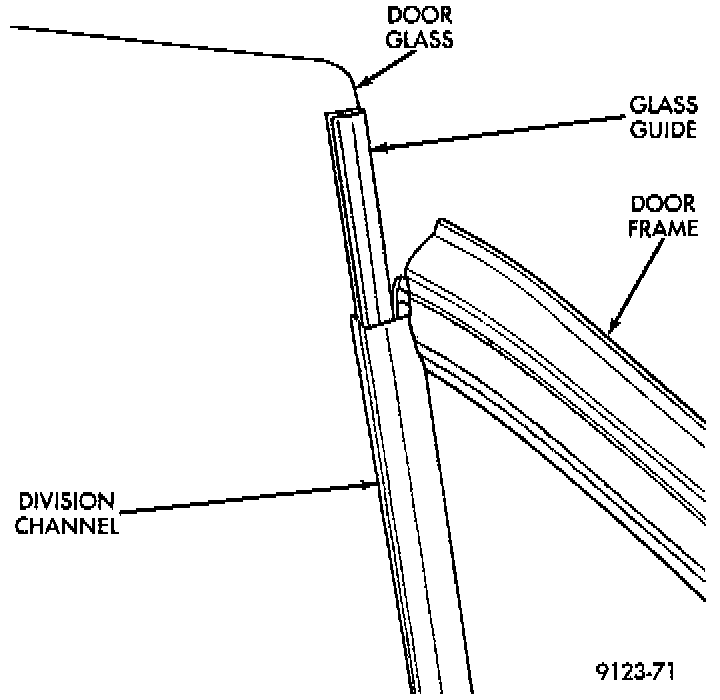

Front Door Glass:

6. Separate glass from division channel.
7. Reverse the preceding operation.
