Clutch Pedal Assembly: Adjustments

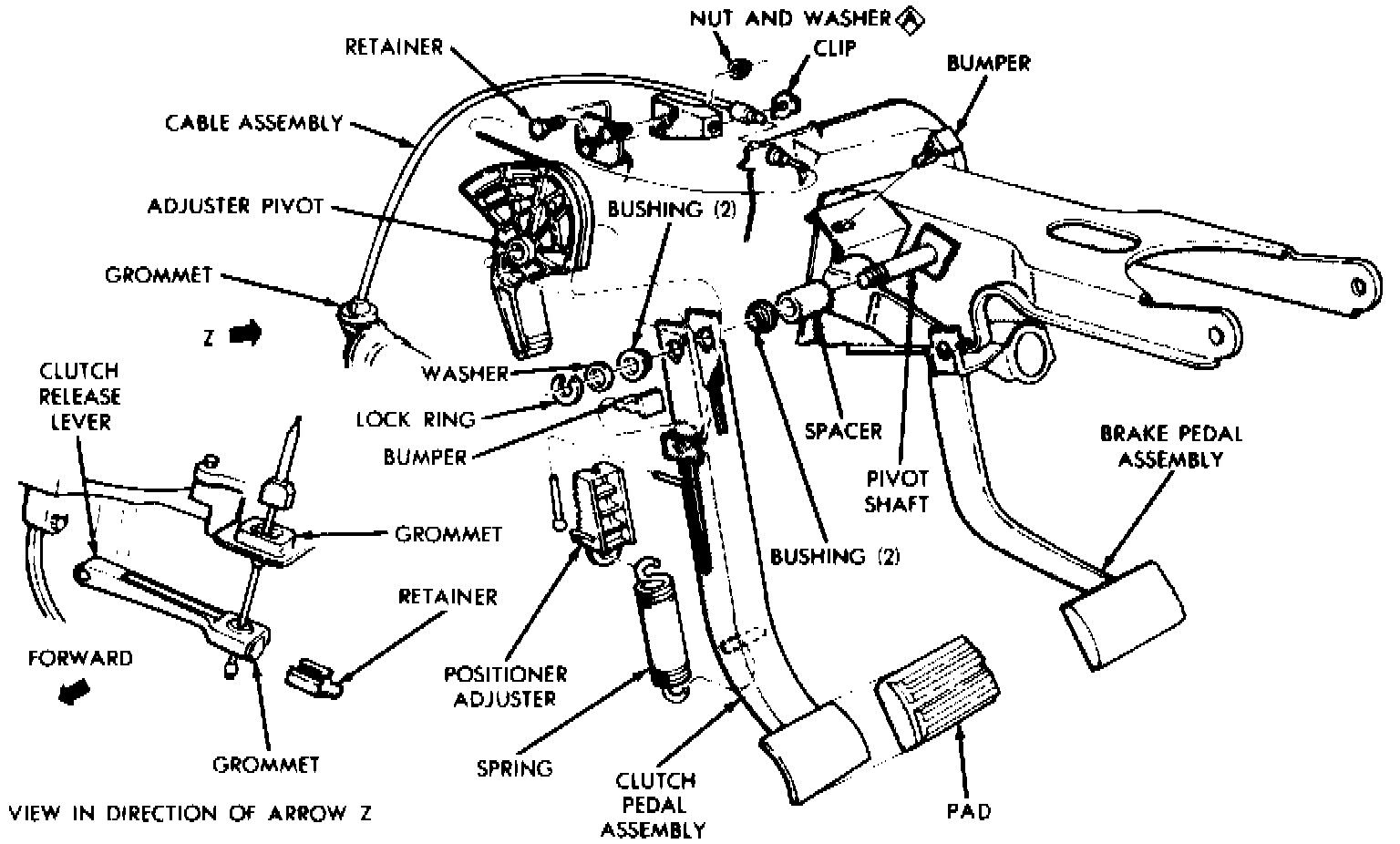

The clutch release cable cannot be adjusted. When the cable is properly routed, the spring between clutch pedal and positioner adjuster will hold clutch cable in proper position. An adjuster pivot is used to hold release cable in place to ensure complete clutch release when clutch pedal is depressed.
