Overhaul

VALVE BODY RECONDITION
NOTE: Prior to removing any transaxle subassemblies, plug all openings and thoroughly clean exterior of the unit, preferably by steam. Cleanliness through entire disassembly and assembly cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels. All mating surfaces in the transaxles are accurately machined; therefore, careful handling of all parts must be exercised to avoid nicks or burrs. Remove all old R.T.V. sealant before applying new R.T.V. sealant. Use only R.T.V. sealant when installing oil pan.

Oil Pan Bolts:

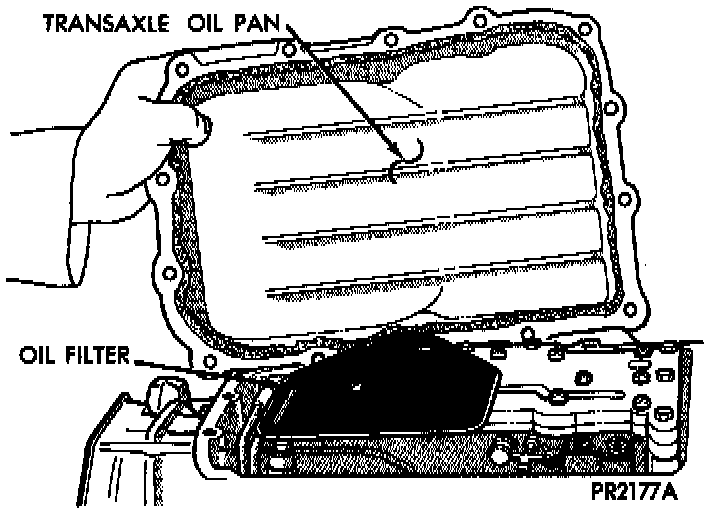

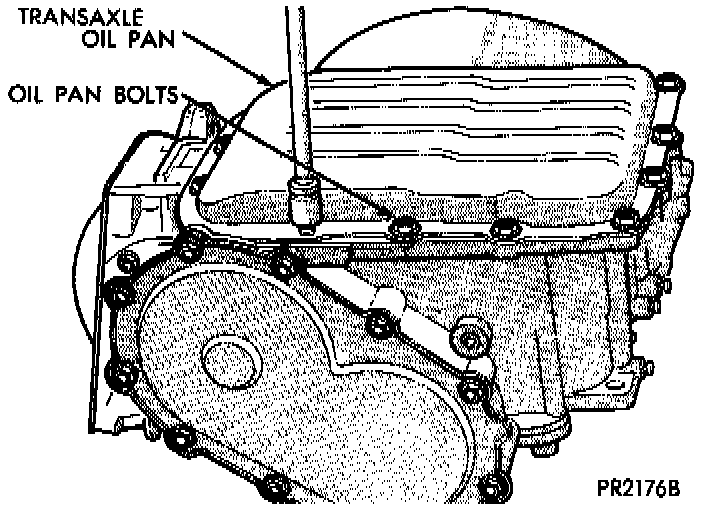

Oil Pan:

1. Remove or install neutral starting and back-up lamp switch.

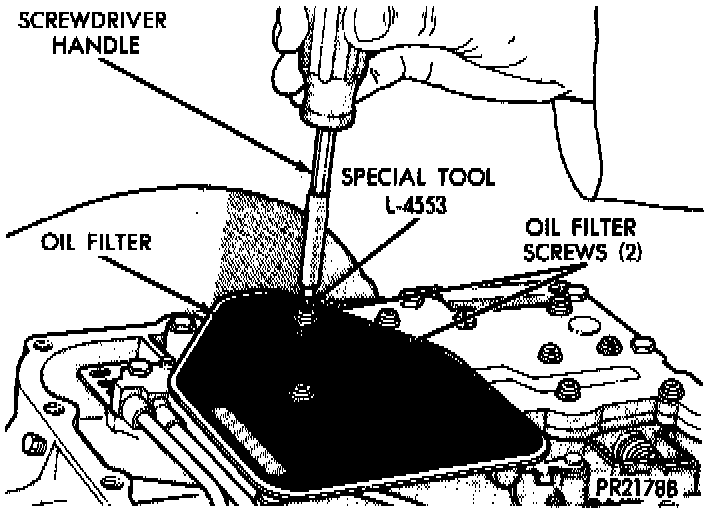

Oil Filter Screws:

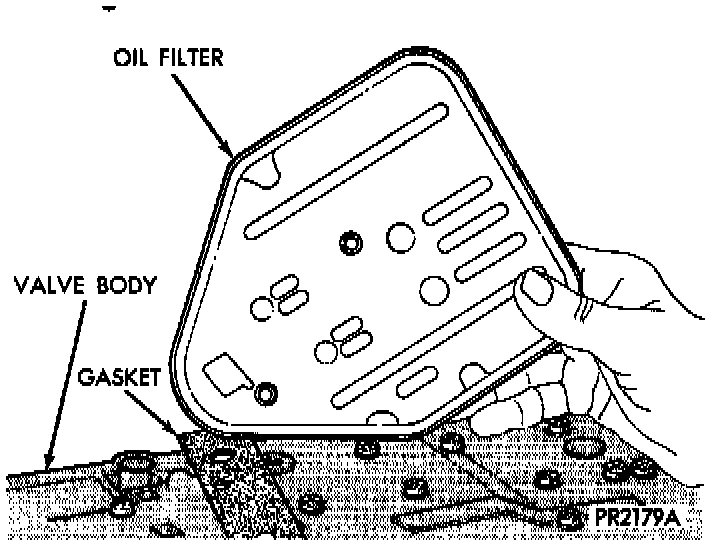

Oil Filter:

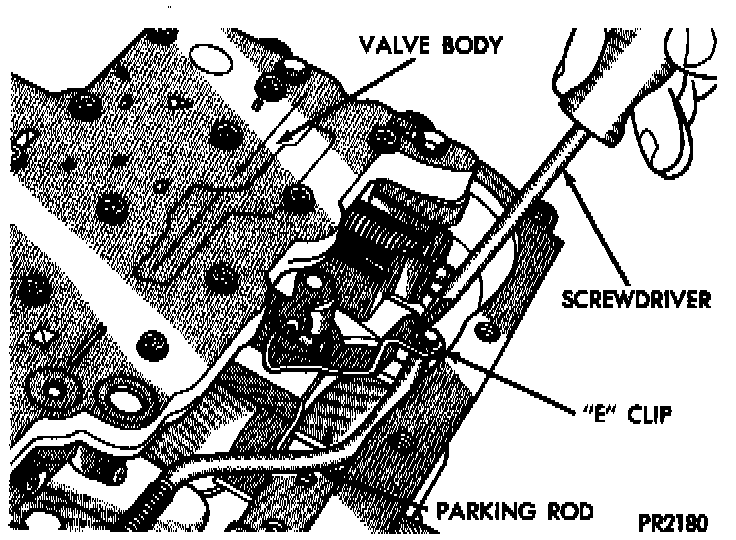

Parking Rod E-Clip:

Parking Rod:

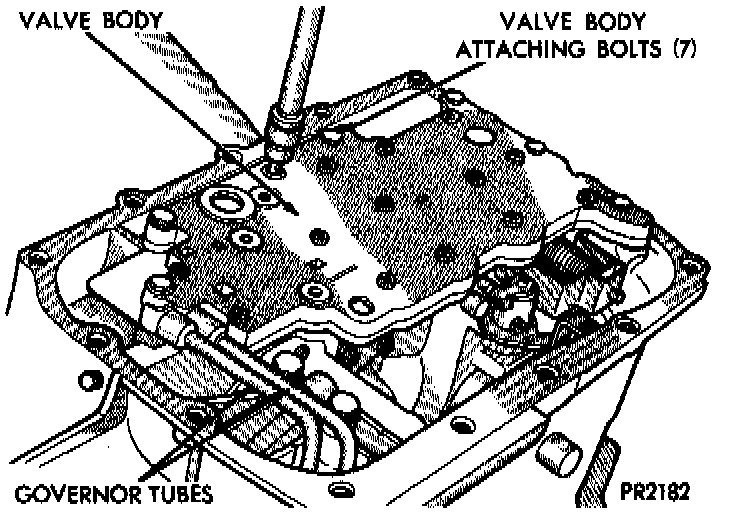

Valve Body Attaching Bolts:

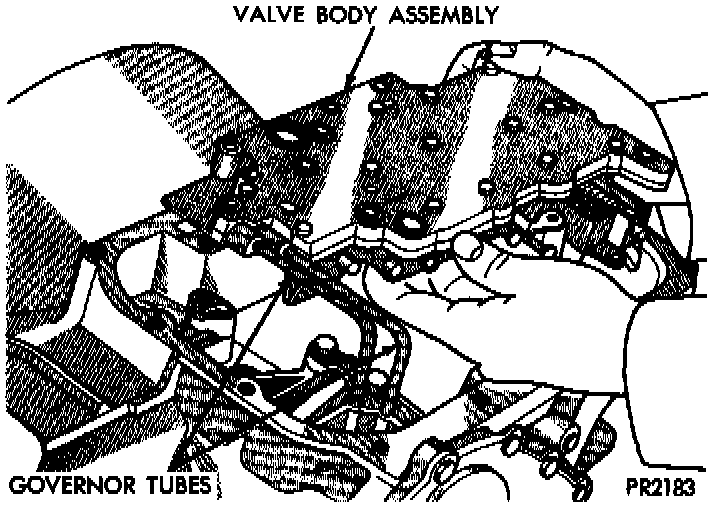

Valve Body And Governor Tubes:

CAUTION: Do not clamp any portion of valve body or transfer plate in a vise. Any slight distortion of the aluminum body or transfer plate will result in sticking valves, excessive leakage, or both. When removing or installing valves or plugs, slide them in or out carefully. Do not use force.

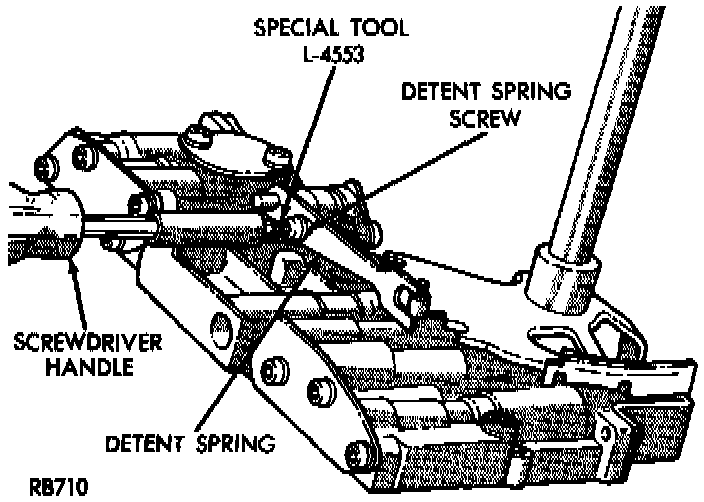

Detent Spring Attaching Screw And Spring:

WARNING: Tag all springs as they are removed for reassembly identification.

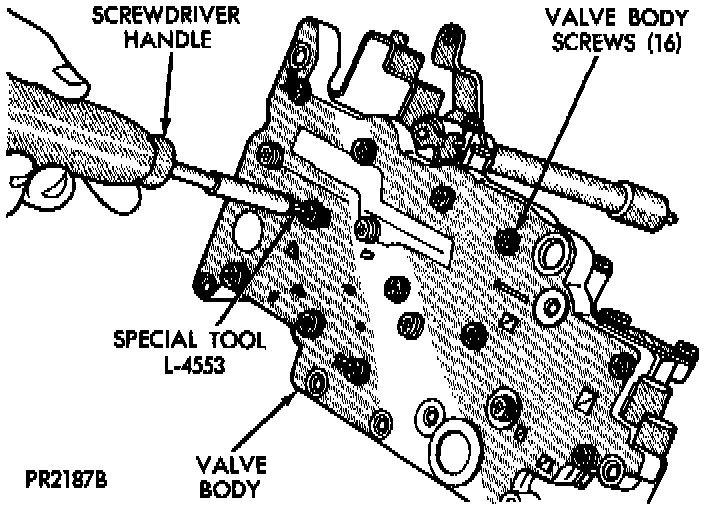

Valve Body Screws:

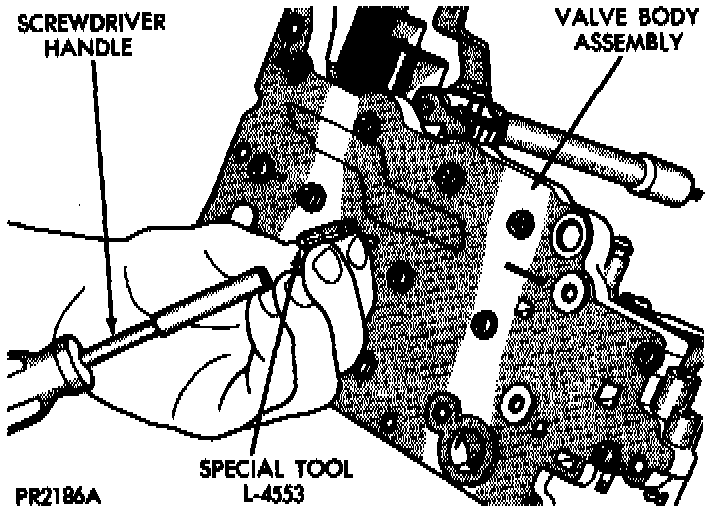

Valve Body Screws:

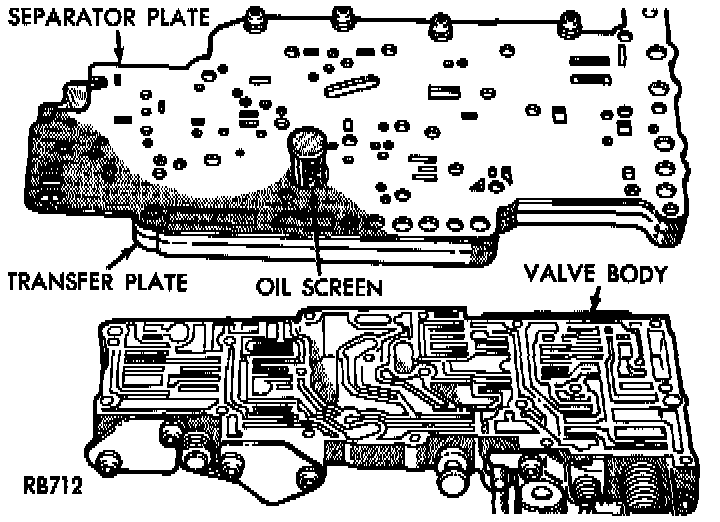

Transfer Plate And Separator Plate:

Steel Ball Locations:

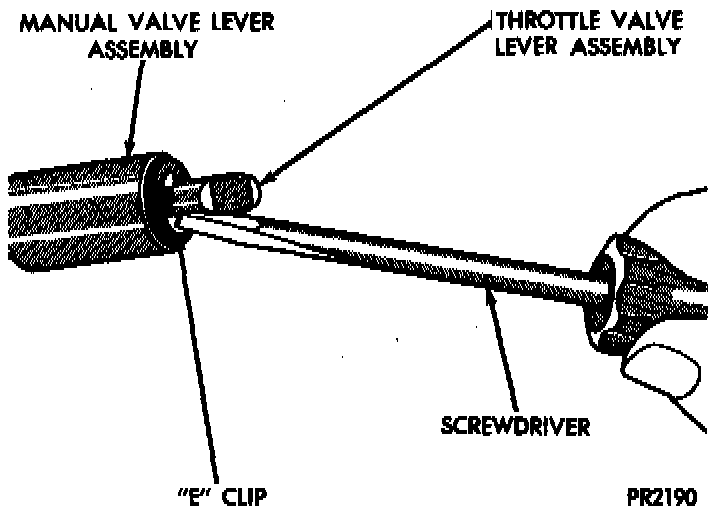

Throttle Shaft E-Clip:

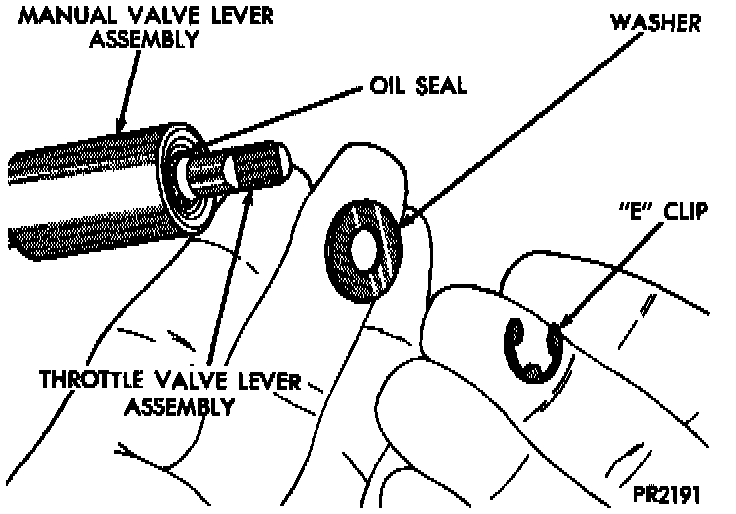

E-Clip, Washer And Oil Seal:

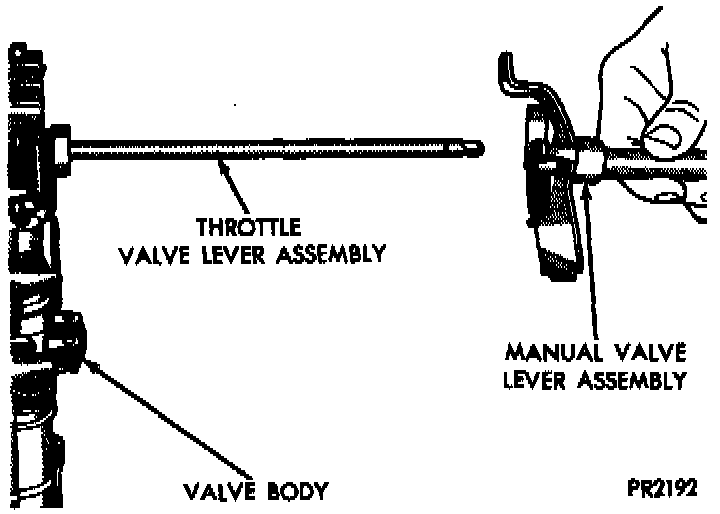

Manual Valve Lever And Assembly:

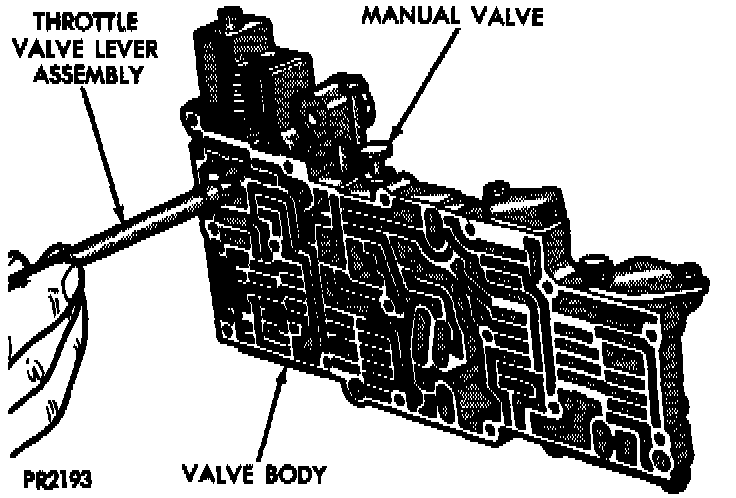

Throttle Valve Lever And Assembly:

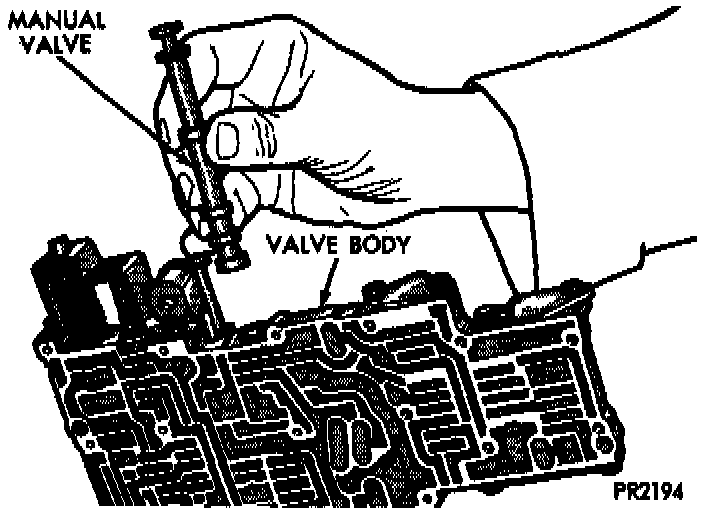

Manual Valve:

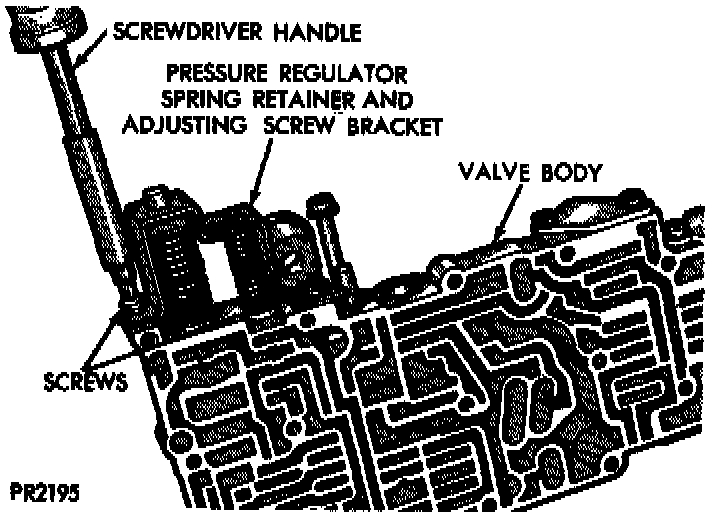

Pressure Regulator And Adjusting Screw Bracket:

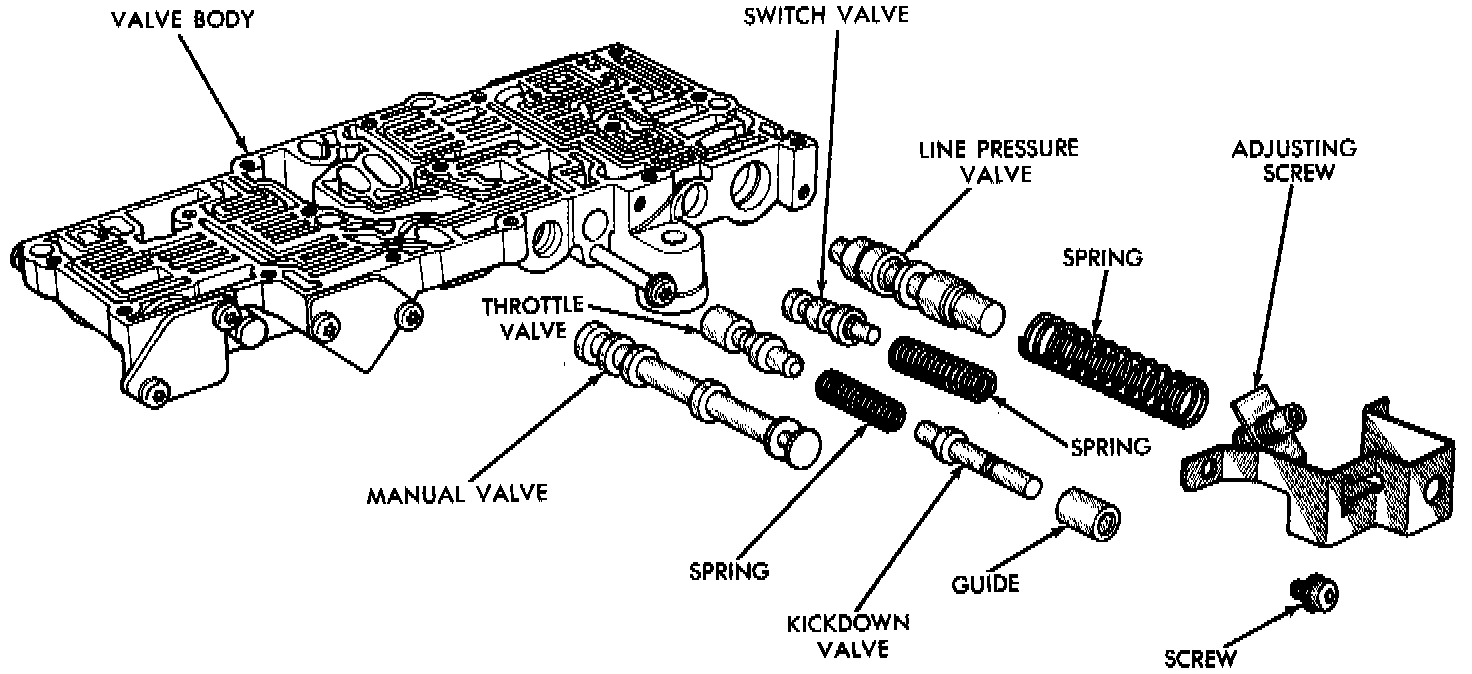

Pressure Regulators And Manual Controls:

Governor Plugs:

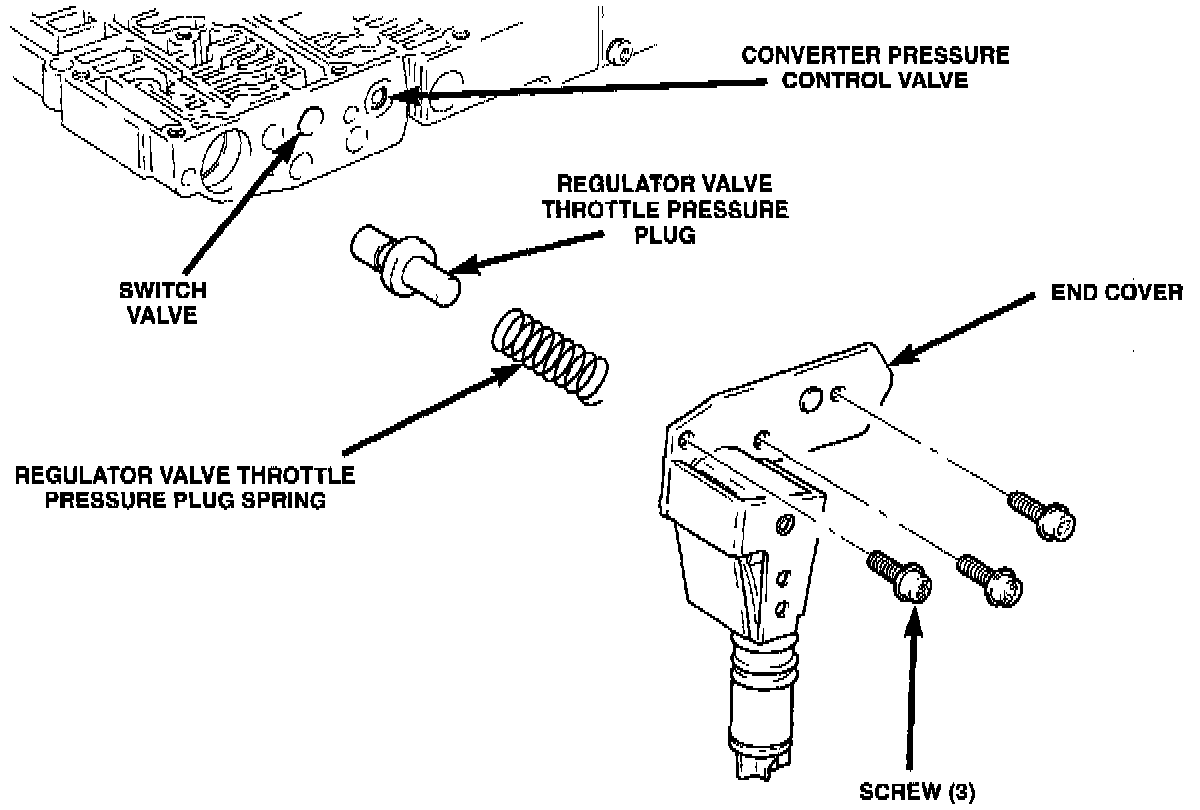

Pressure Regulator Valve Plugs:

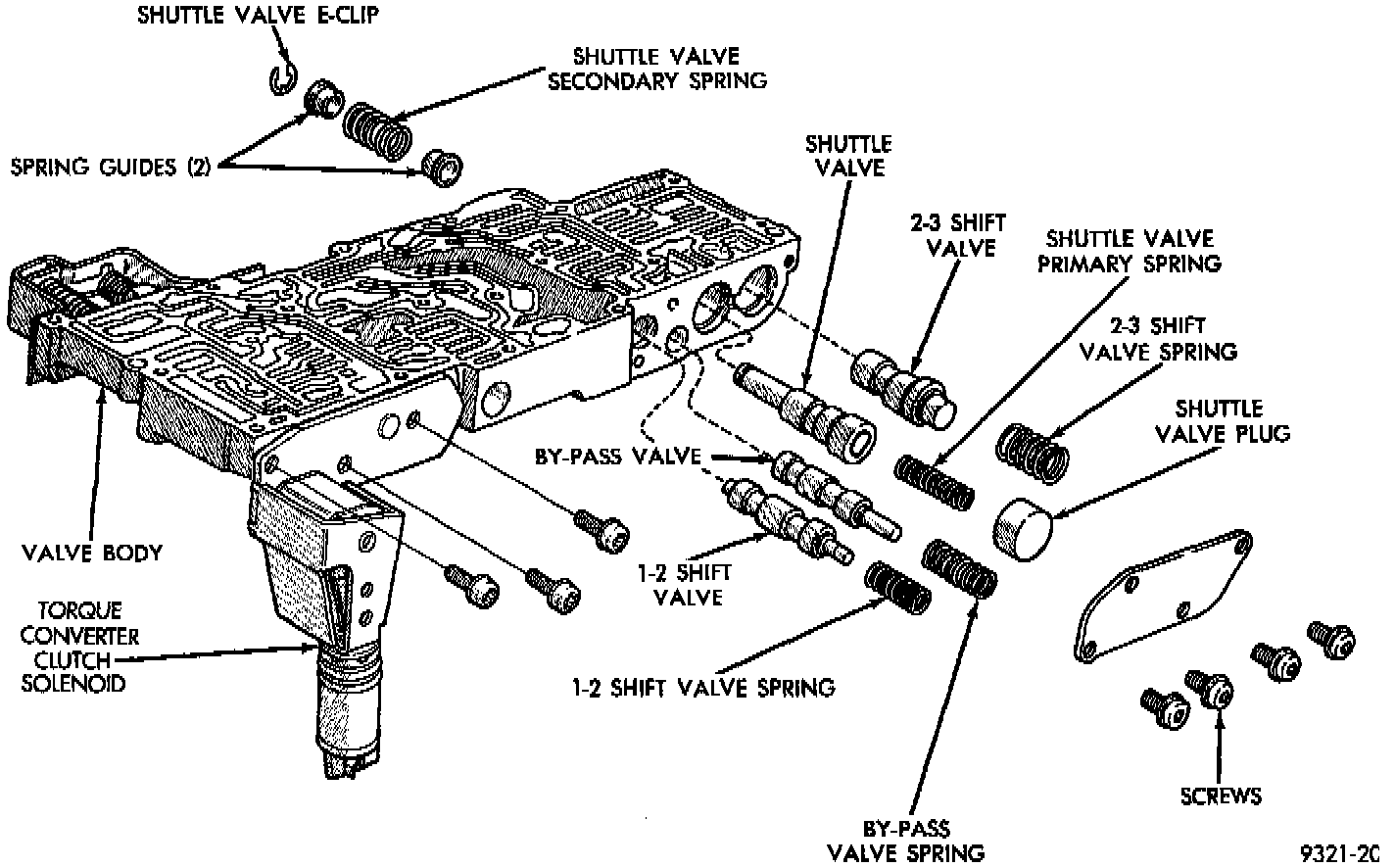

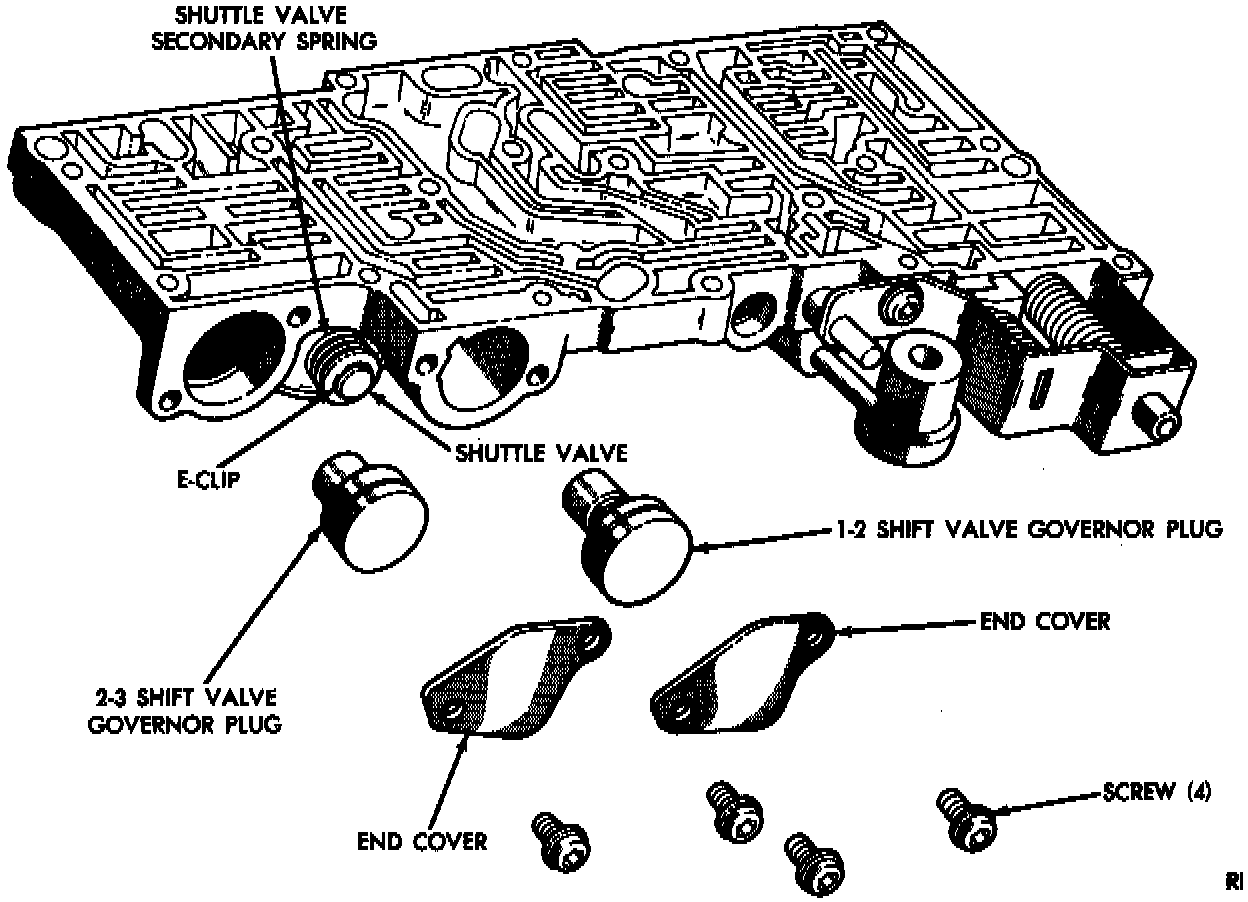

Shift And Shuttle Valve:
