Front Planetary & Annulus Gear Recondition

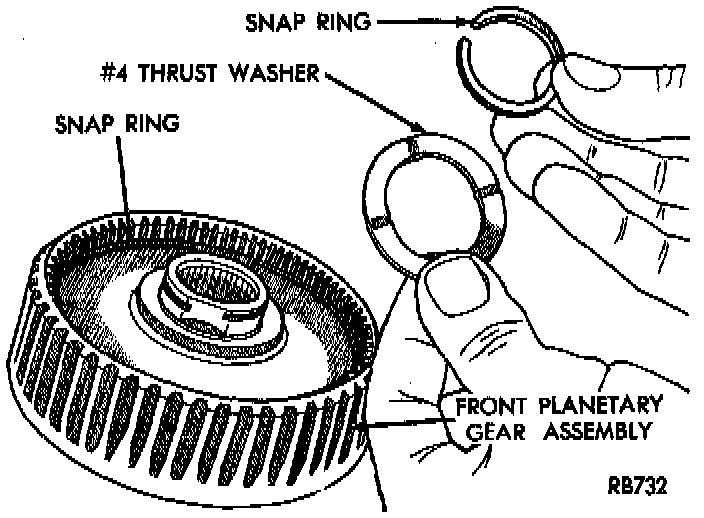

Snap Ring And Thrust Washer:





NOTE: Always install a new snap ring when reassembling the front planetary.

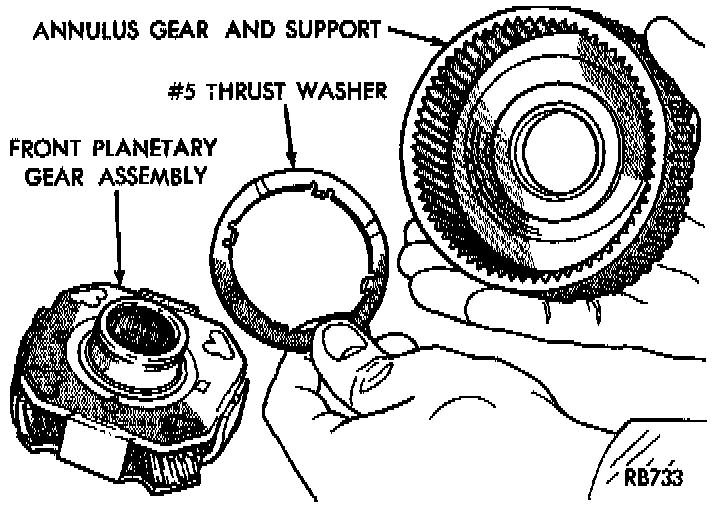

Front Planetary Gear:

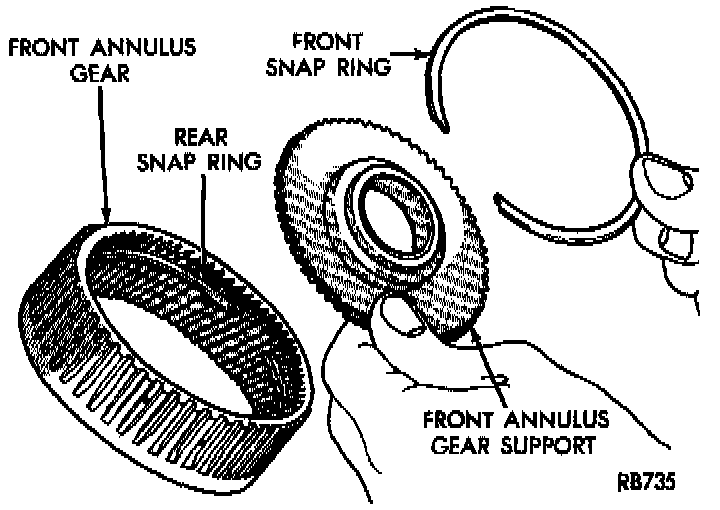

Annulus Gear Support Front Snap Ring:




Annulus Gear Support Front Snap Ring:

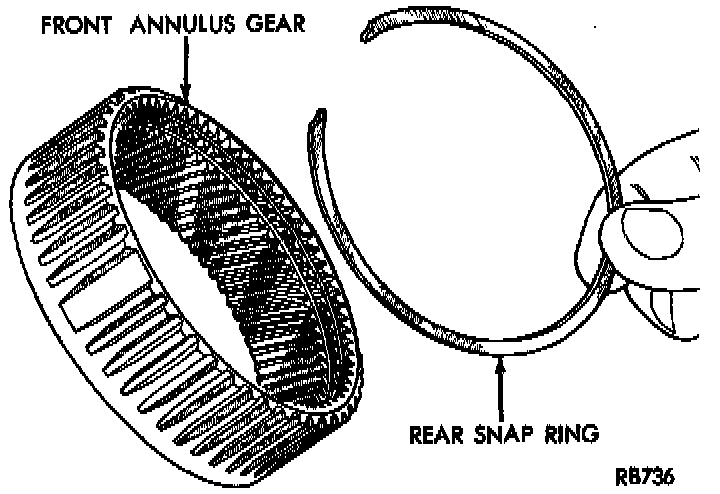

Annulus Gear Support Front Snap Ring:
