Steering Column Overhaul

Fig.1 Exploded View Of Steering Column Assembly:

The steering column used on these models has been designed to be serviced as an assembly except for wiring, switches, shrouds and the steering wheel. Most steering column components can be serviced without removing the column from the vehicle.

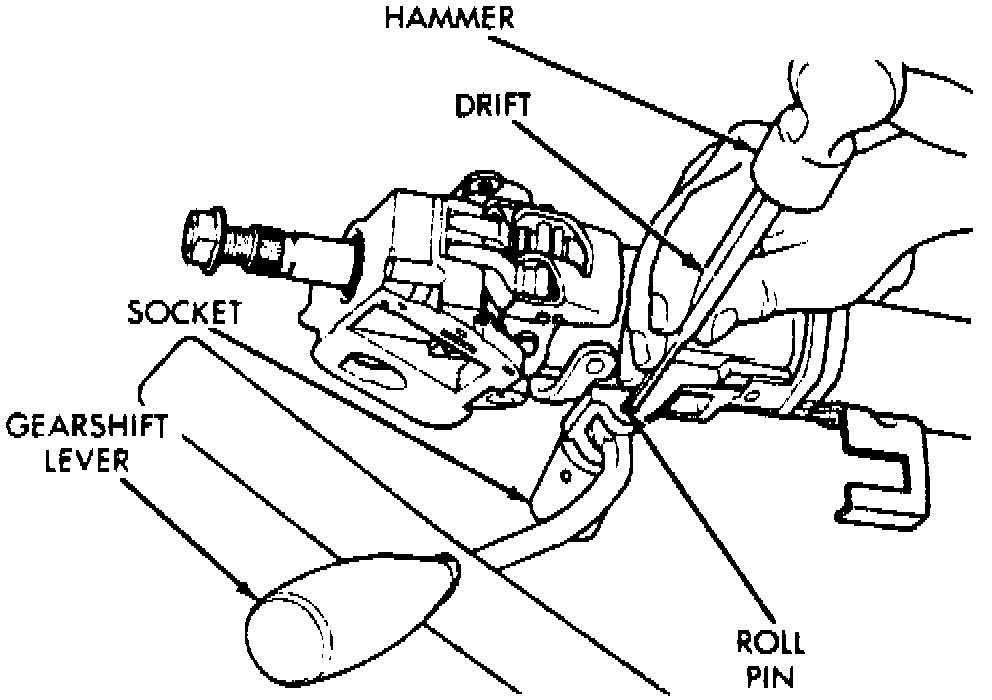

Fig.14 Gearshift Lever Removal:

The only other serviceable component is the gear shift lever assembly. Use a drift and a suitable size socket to drive out lever retaining pin.
