Intermittent

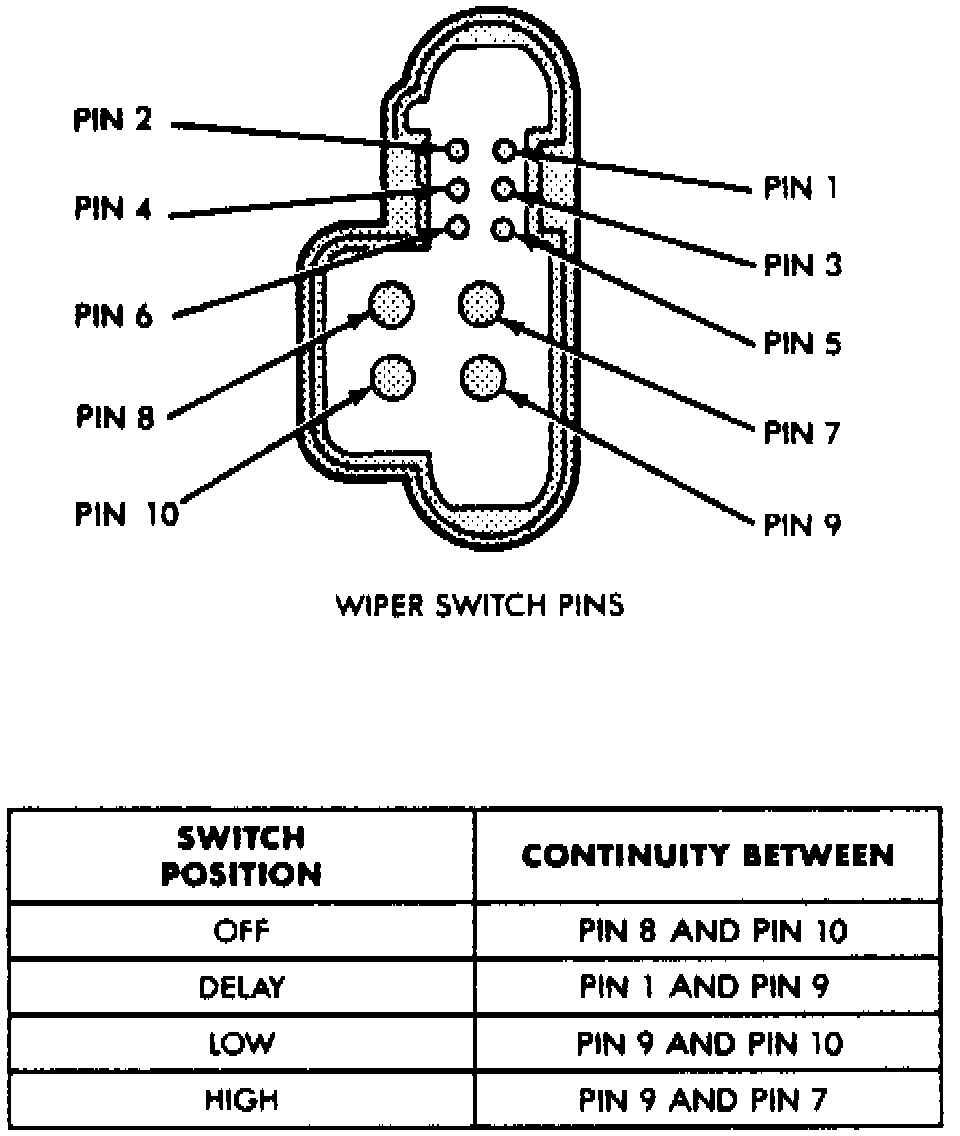

Fig.57 Intermittent Wiper Switch Connector Continuity Inspection:

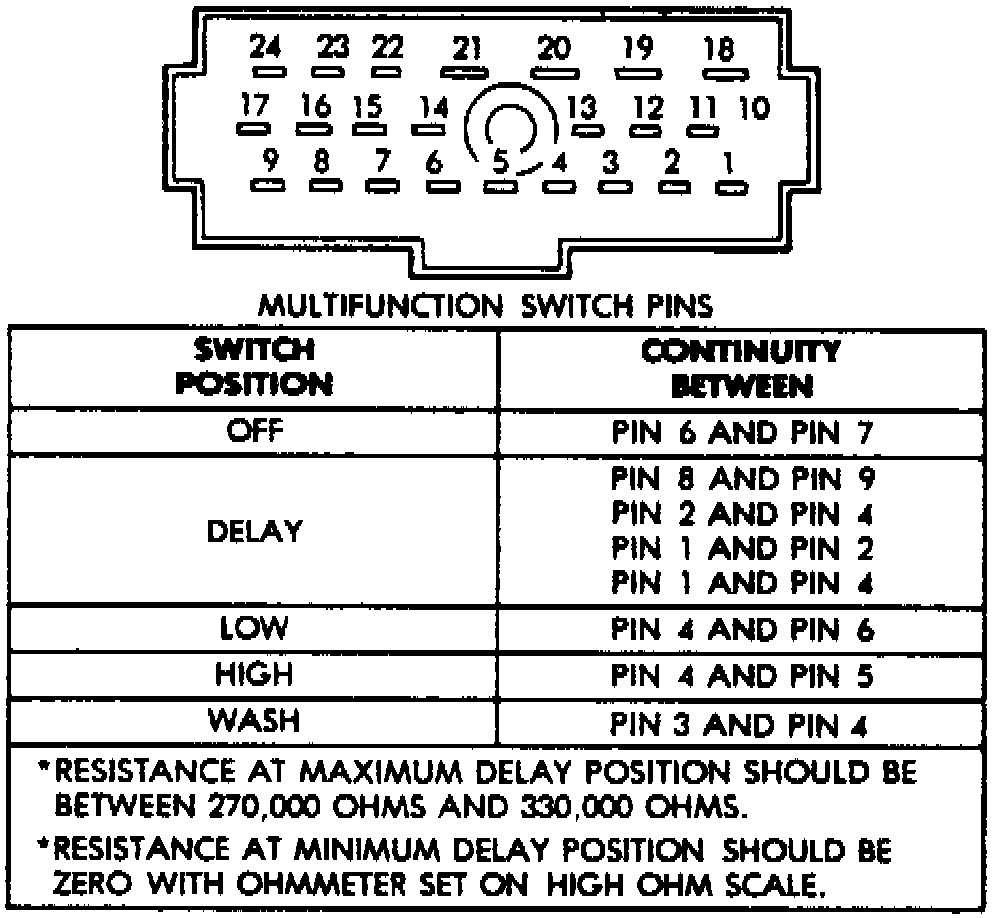

Fig.58 Intermittent Wiper Switch Connector Continuity Inspection:




Disconnect wiper switch from body wiring harness in steering column. Test for continuity between terminals as shown.
