Automatic Seat Belt System Testing

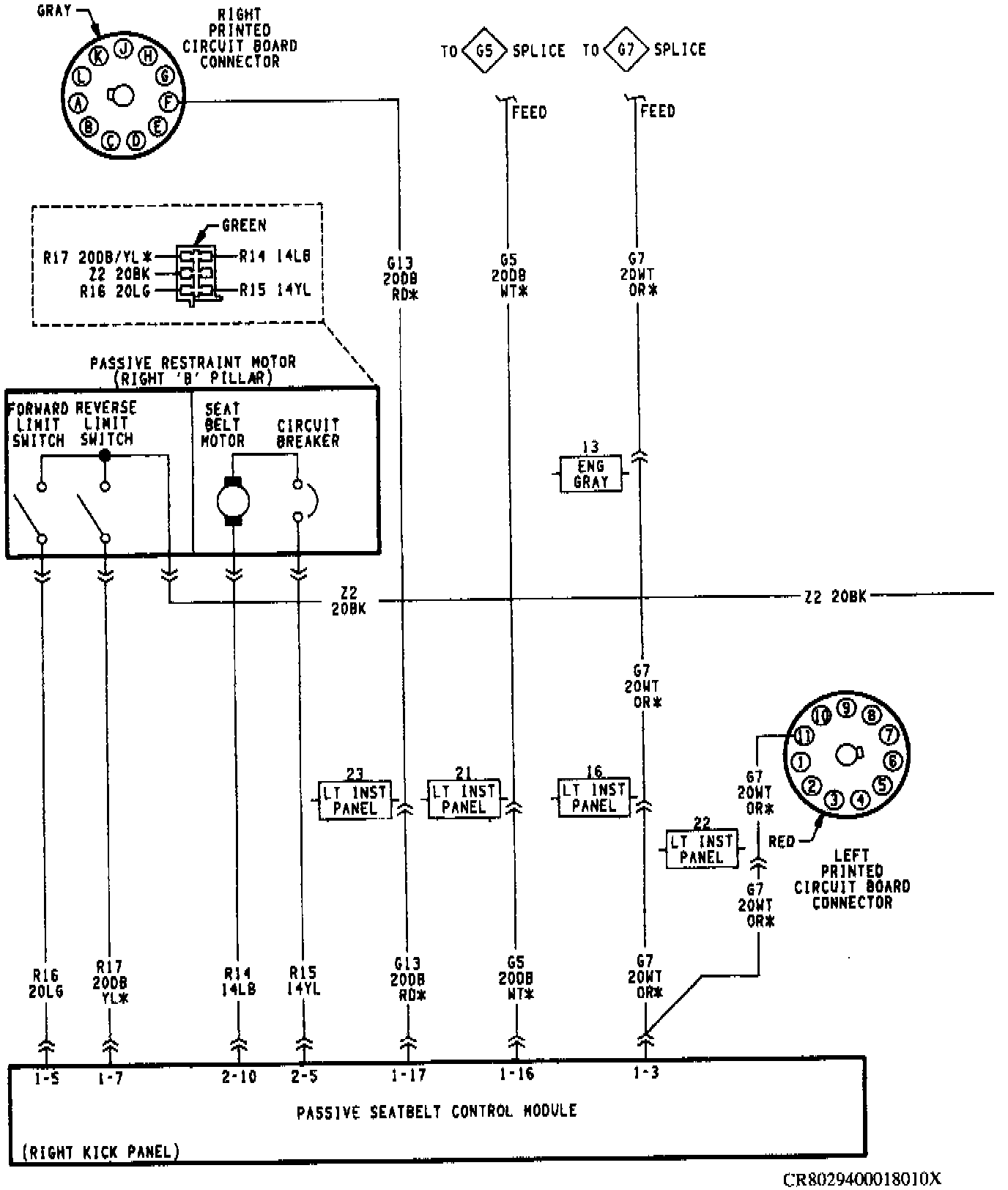

Fig. 3 Automatic Seat Belt System Circuit Diagram:

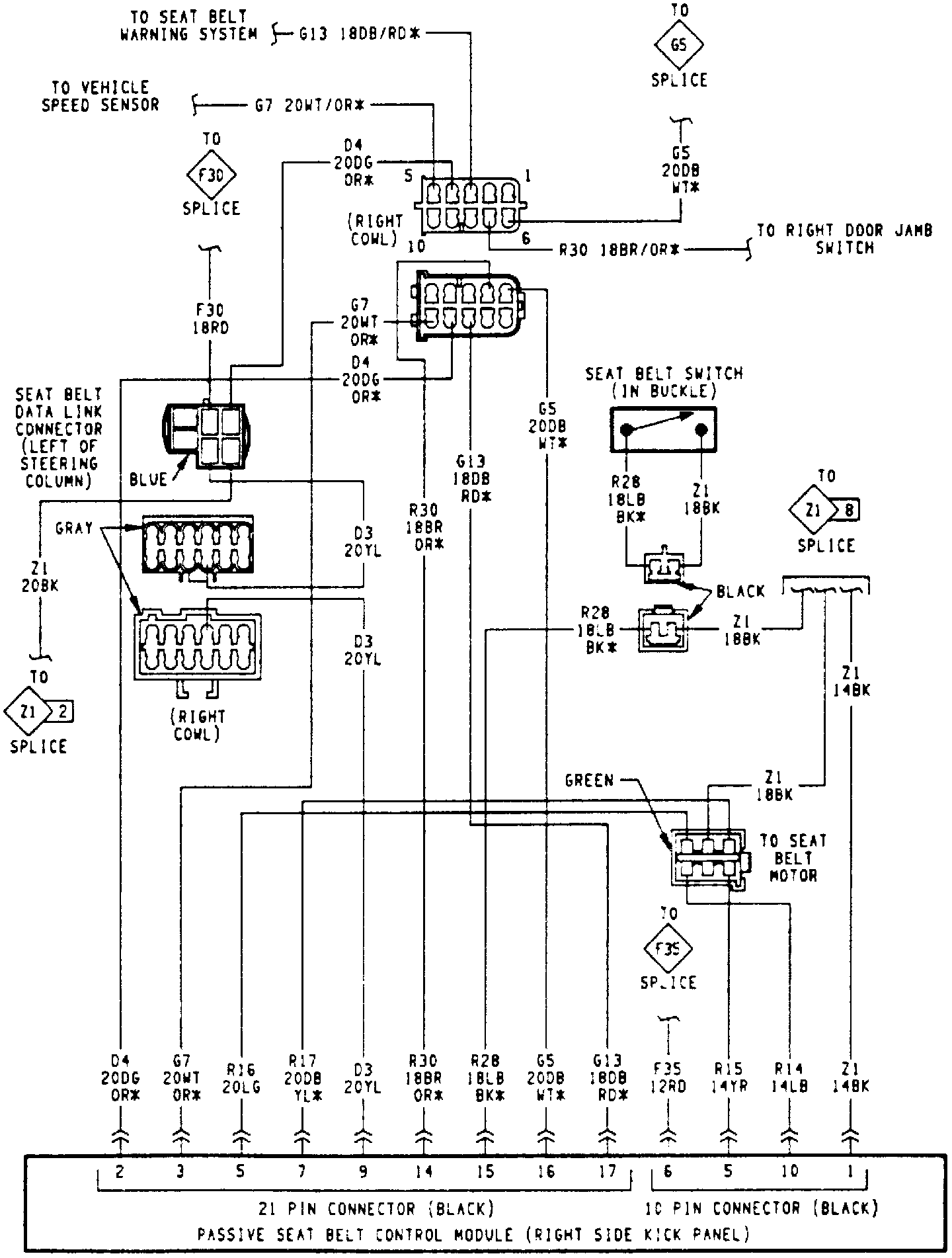

Fig. 4 Automatic Seat Belt System Circuit Diagram (Part 1 Of 2):

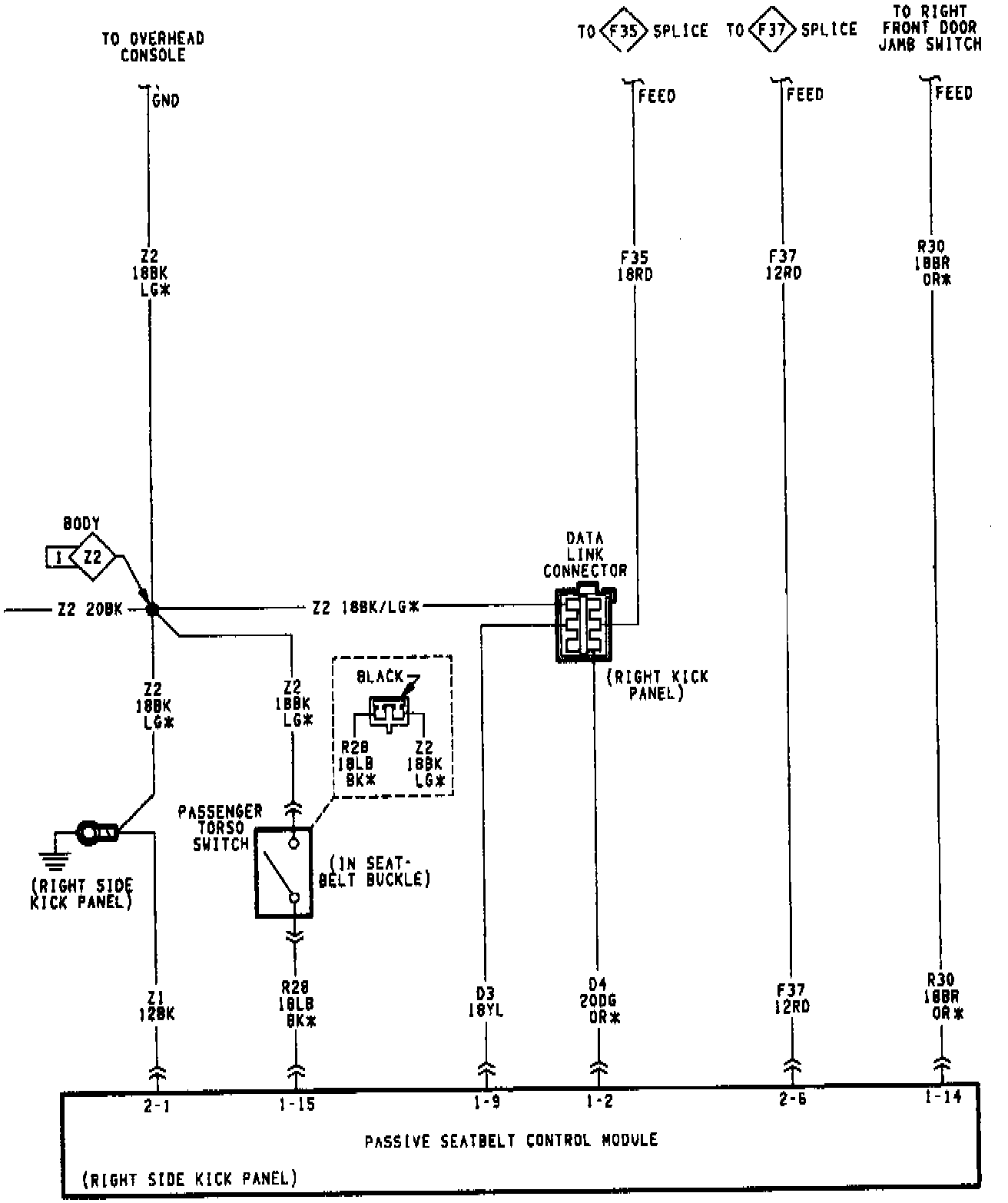

Fig. 4 Automatic Seat Belt System Circuit Diagram (Part 2 Of 2):

To perform testing of the automatic seat belt system, the use of a DRBII or equivalent scan tool or suitable volt/ohmmeter is required. Follow tool manufacturer's instructions for installation and operation of scan tool, if used.
