Pick-Up Coil: Service and Repair

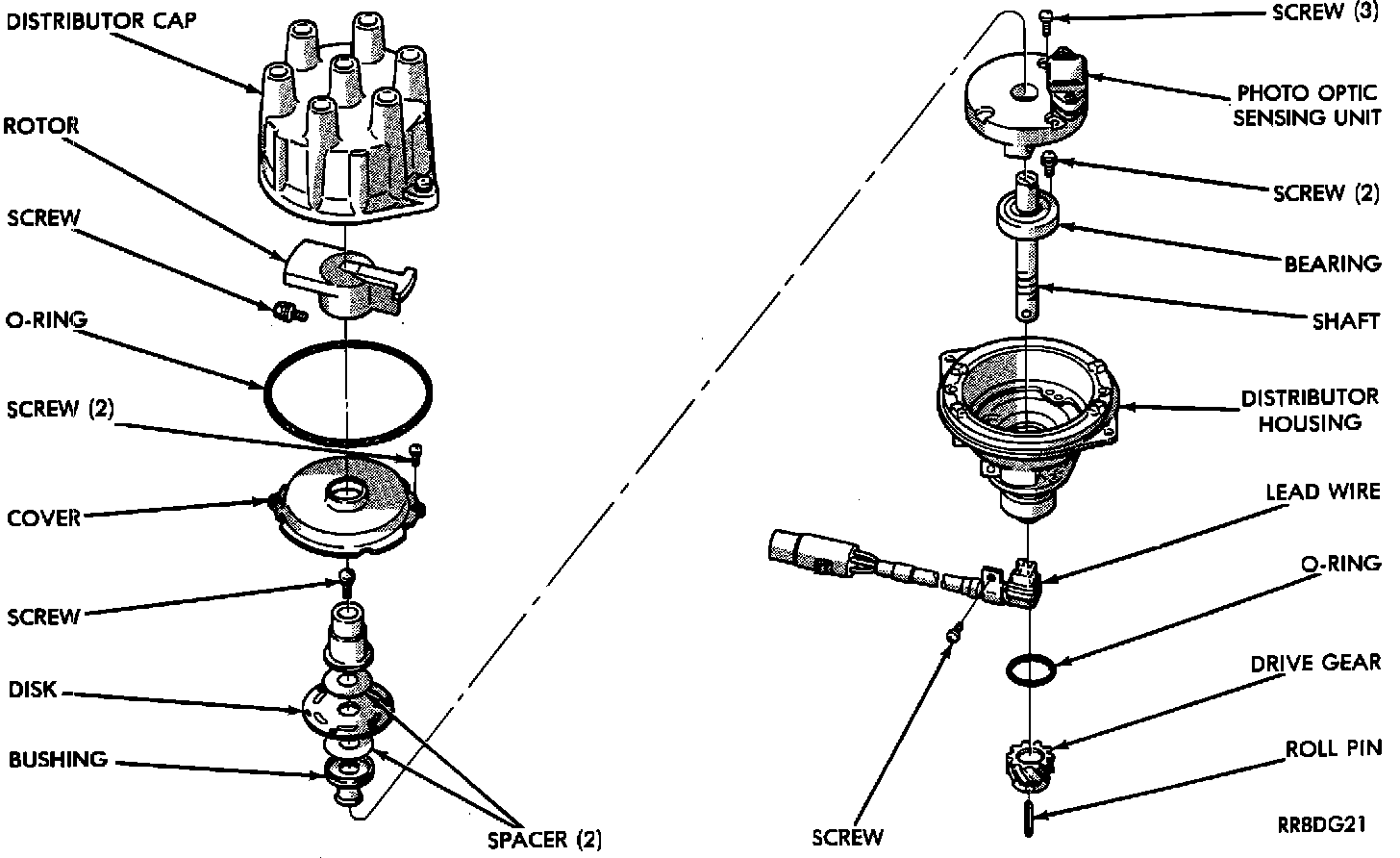

Optical Distributor Exploded View:

REMOVAL

1. Remove cap hold down screws and move distributor cap to one side.

Rotor Locking Screw:

2. Remove rotor screw and rotor.

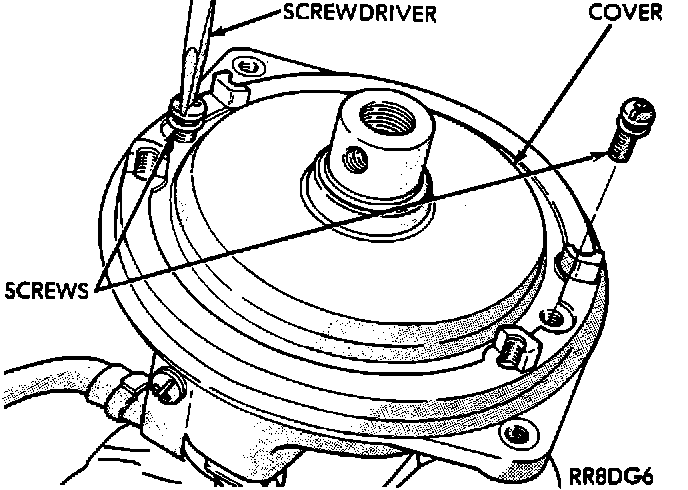

Cover Removal:

3. Remove protective cover.

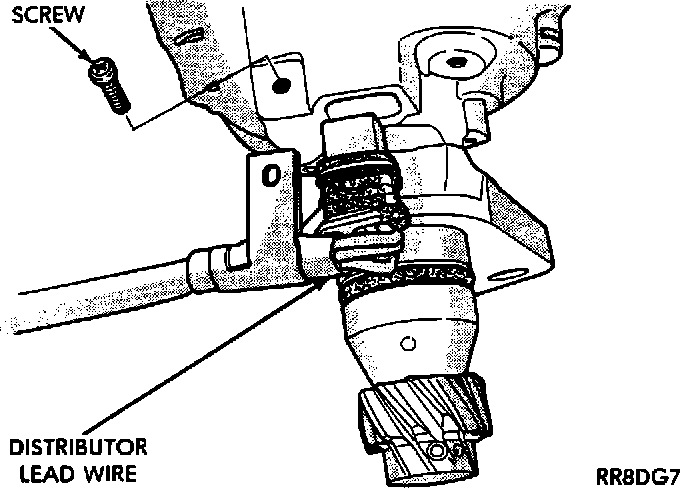

Lead Wire Clamp Removal:

4. Remove lead wire screw, (outside of distributor housing), and lead wire.

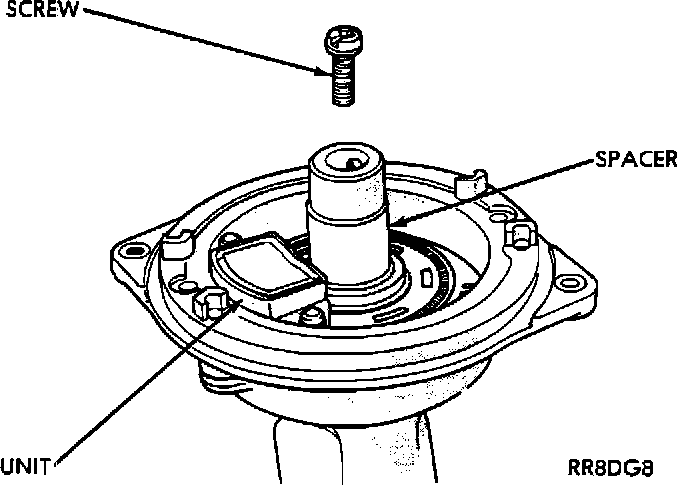

Disk Screw Removal:

5. Remove disc assembly screw.

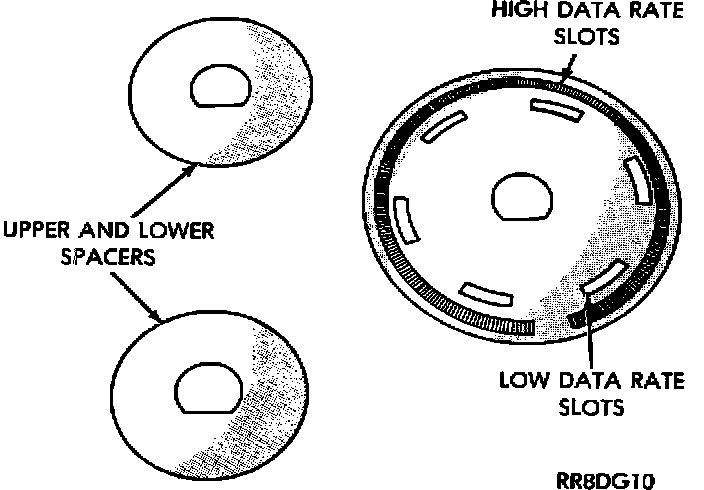

Disk And Spacers:

Disk And Spacers Removed:

6. Remove disc spacers and disc. Check disc for warpage, cracks or damaged slots.

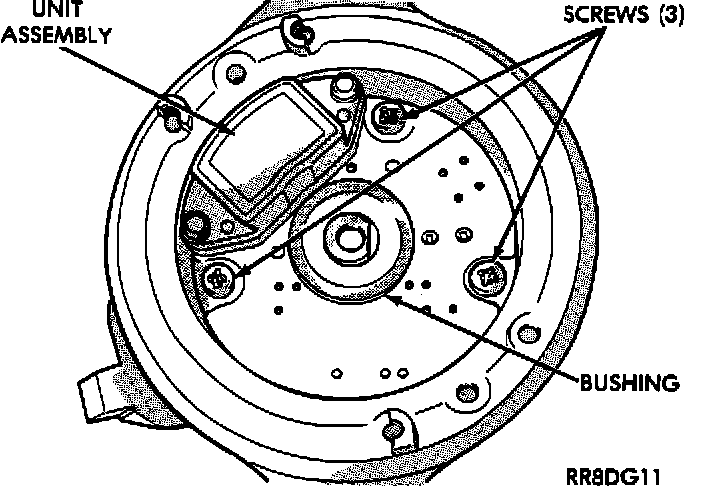

Photo Optic Sensing Unit:

7. Remove bushing and photo optic sensing unit fasteners, and remove unit.

INSTALLATION

1. Install bushing and photo optic sensing unit and tighten fasteners.
2. Install disc spacers and disc and tighten disc assembly screw.
3. Install lead wire, and tighten lead wire screw.
4. Install protective cover.
5. Install rotor and tighten rotor screw.
6. Install distributor cap, and tighten cap hold down screws.
