EVAP Purge Solenoid Operation

EVAP Purge Solenoid Location:

LOCATION

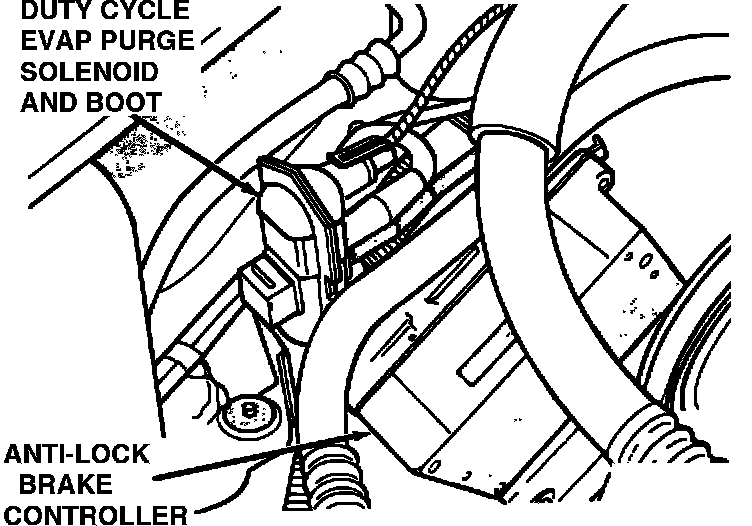

The Duty cycle purge solenoid is mounted near the Anti-lock Brake System (ABS) Controller.

PURPOSE

Powertrain Control Module (PCM) controls timing and rate of purge flow, by varying solenoid pulse width, (the length of time solenoid is energized per cycle).

OPERATION

PCM controls solenoid by applying and removing solenoid ground.

During open loop operation, (including cold start up and hot start time delay), the PCM DE-ENERGIZES the solenoid, preventing canister purge.

When the engine enters closed loop, (after warm-up and time delay), PCM ENERGIZES and DE-ENERGIZES solenoid approximately 5 to 10 times per second, depending on operating conditions.

NOTE: Solenoid will not operate unless installed correctly. The word TOP should face up when installed.
