Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-8A Checking Oxygen Sensor Heating

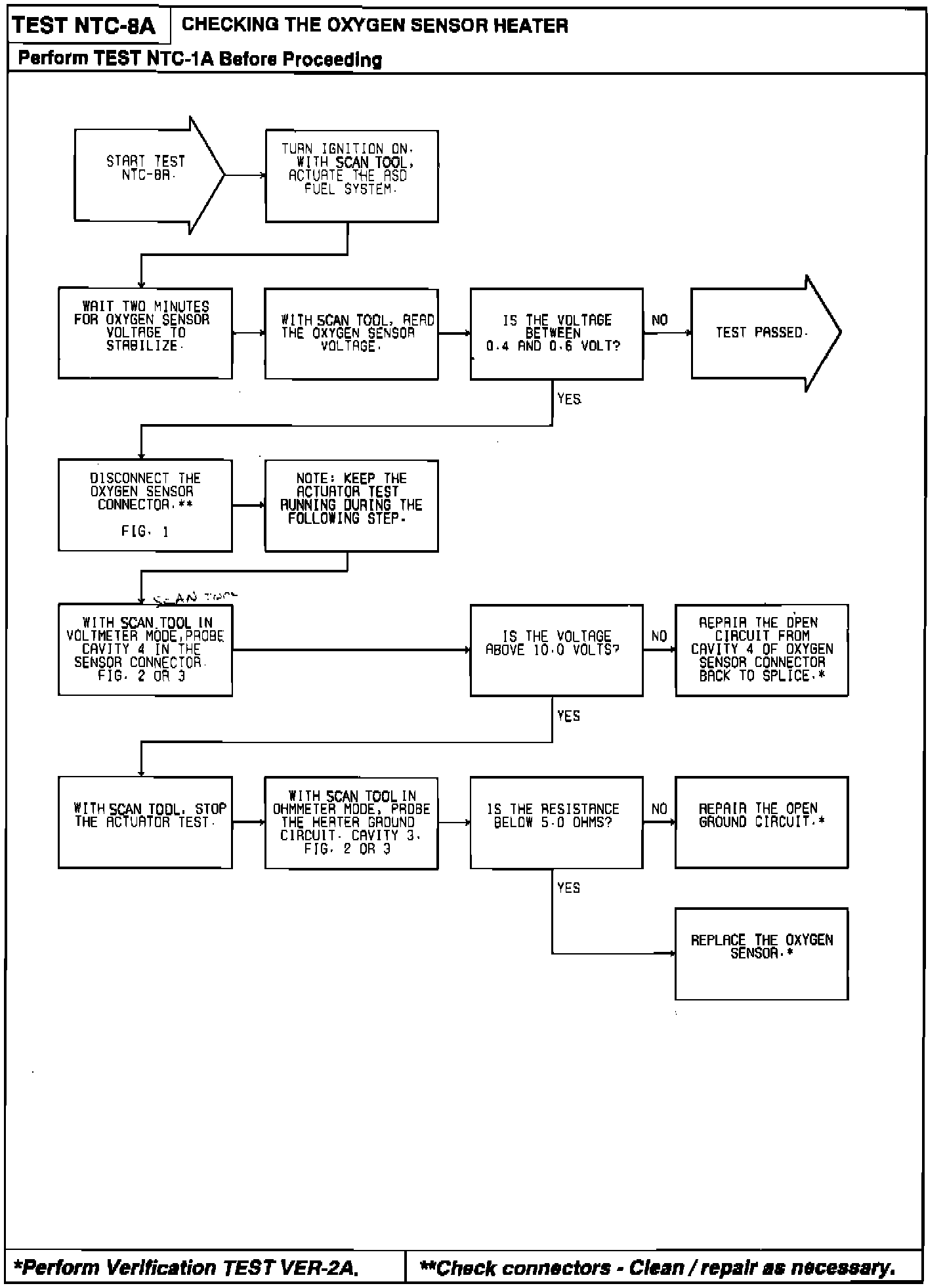

NTC-8A Checking Oxygen Sensor Heating

Part 1 Of 1:



Part 1 Of 1:
