Vehicle Speed Sensor
>>
Locations
Vehicle Speed Sensor: Locations

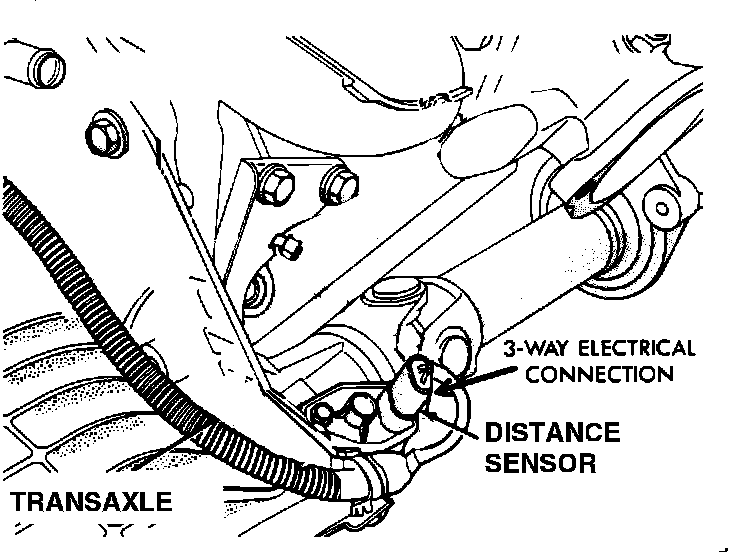

Vehicle Speed Sensor Location:

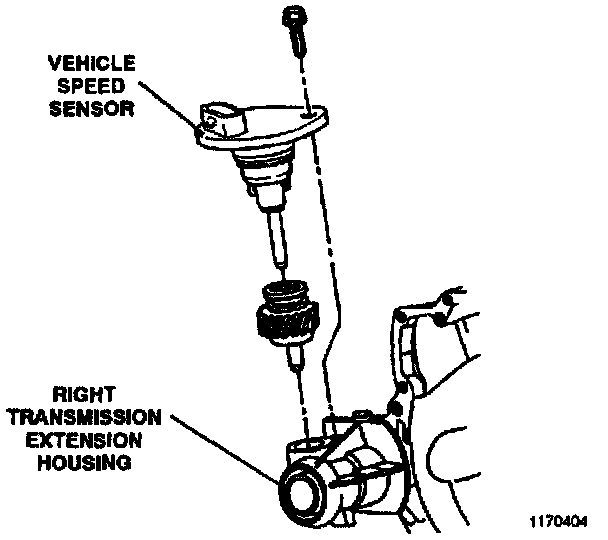

Vehicle Speed Sensor Location:
Sensor mounted in passenger side transaxle output housing.
