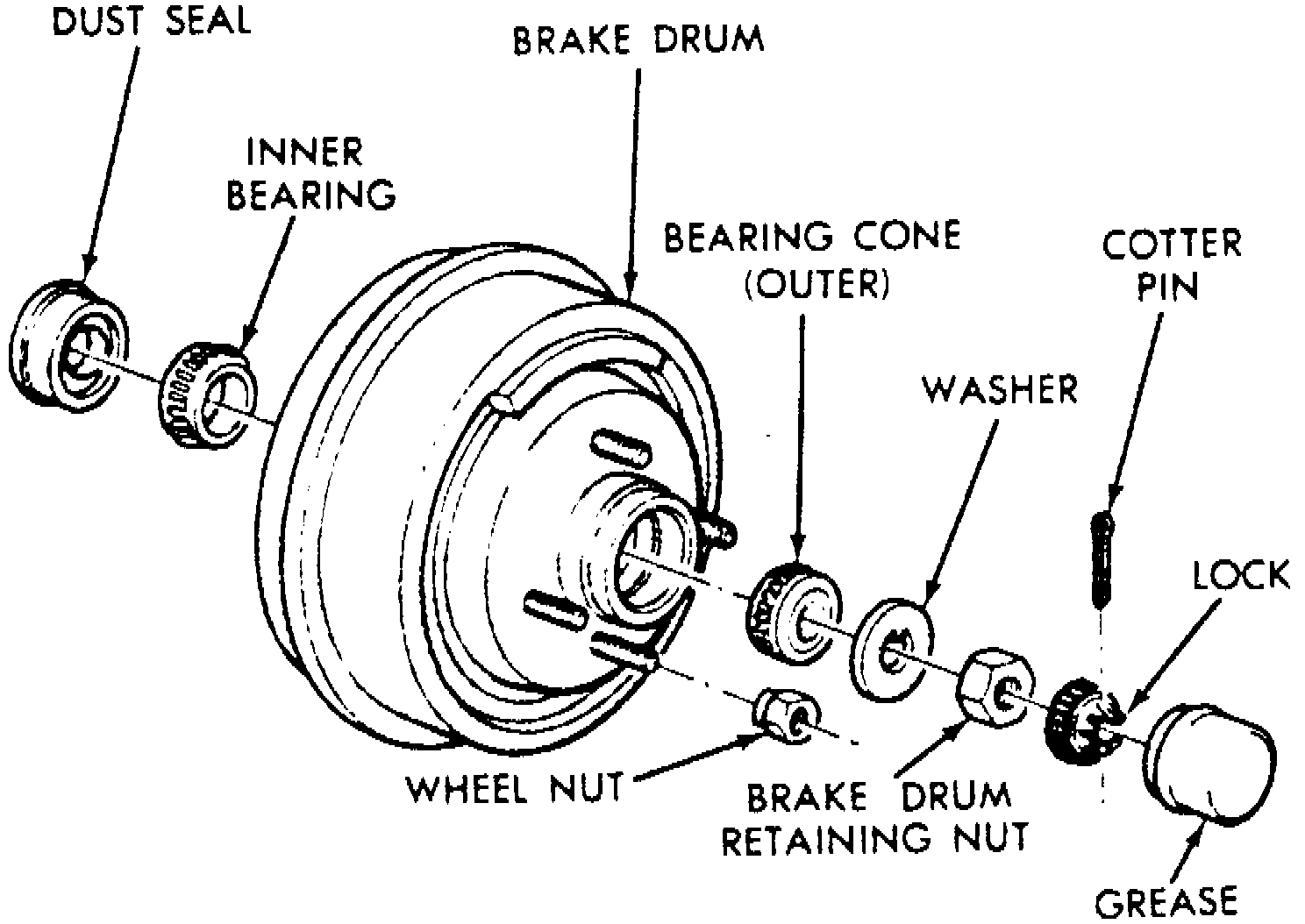

Wheel Bearing: Adjustments

1. Torque adjusting nut to 22-23 ft. lbs. while rotating wheel.




2. Stop wheel and loosen adjusting nut.
3. Tighten adjusting nut finger tight. Endplay should be 0.001-0.003 inch.
4. Install castle lock with slots aligned with cotter pin hole.
5. Install cotter pin and grease cap.
