Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Refrigerant System Diagnosis Chart

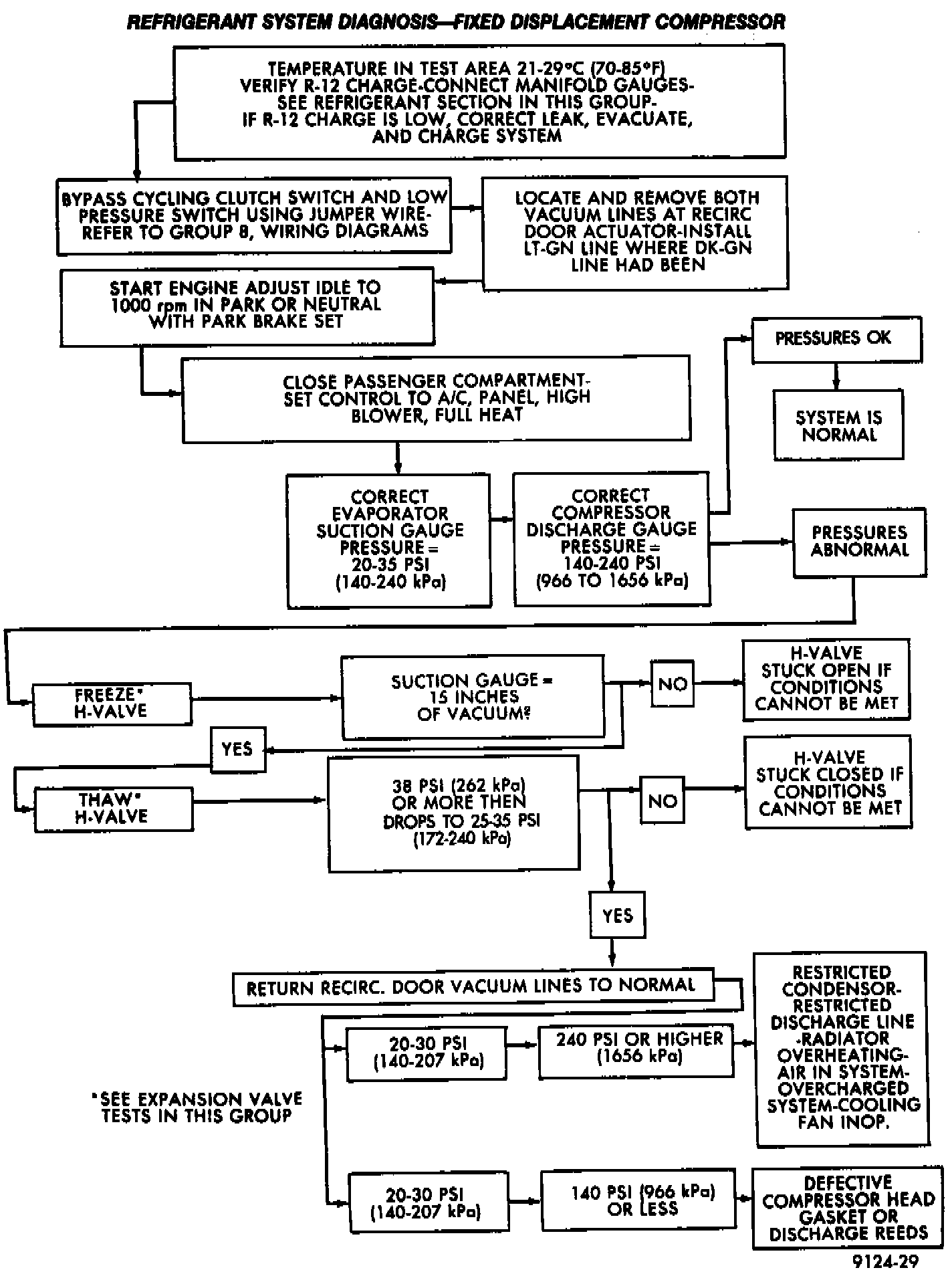

Refrigerant System Diagnosis Chart

Refrigerant System Diagnosis:
