Heater-A/C Housing Disassembly and Assembly

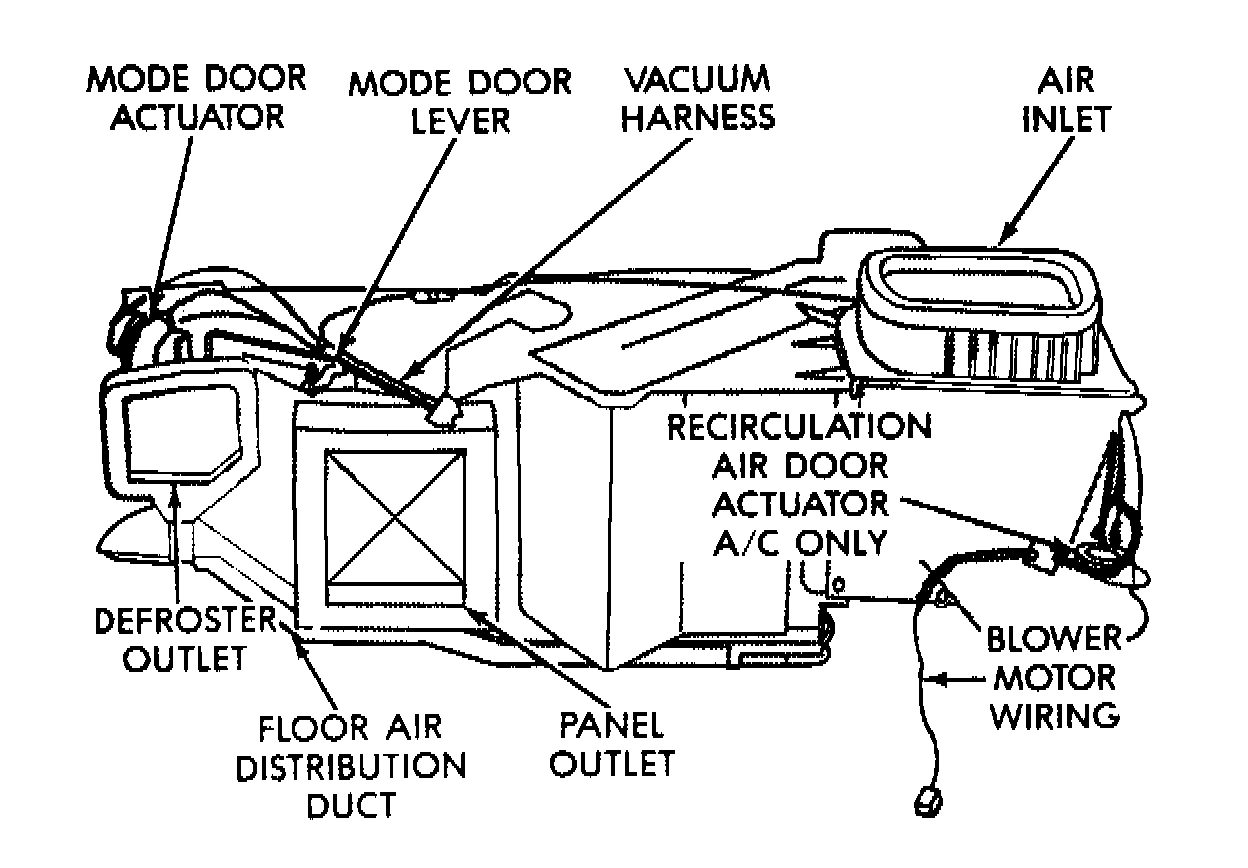

DISASSEMBLEHeater A/C Unit:
1. Place the heater-A/C unit on a suitable work surface.
2. Locate and remove one, 1/4-20 retaining nut from the blend-air door pivot shaft.

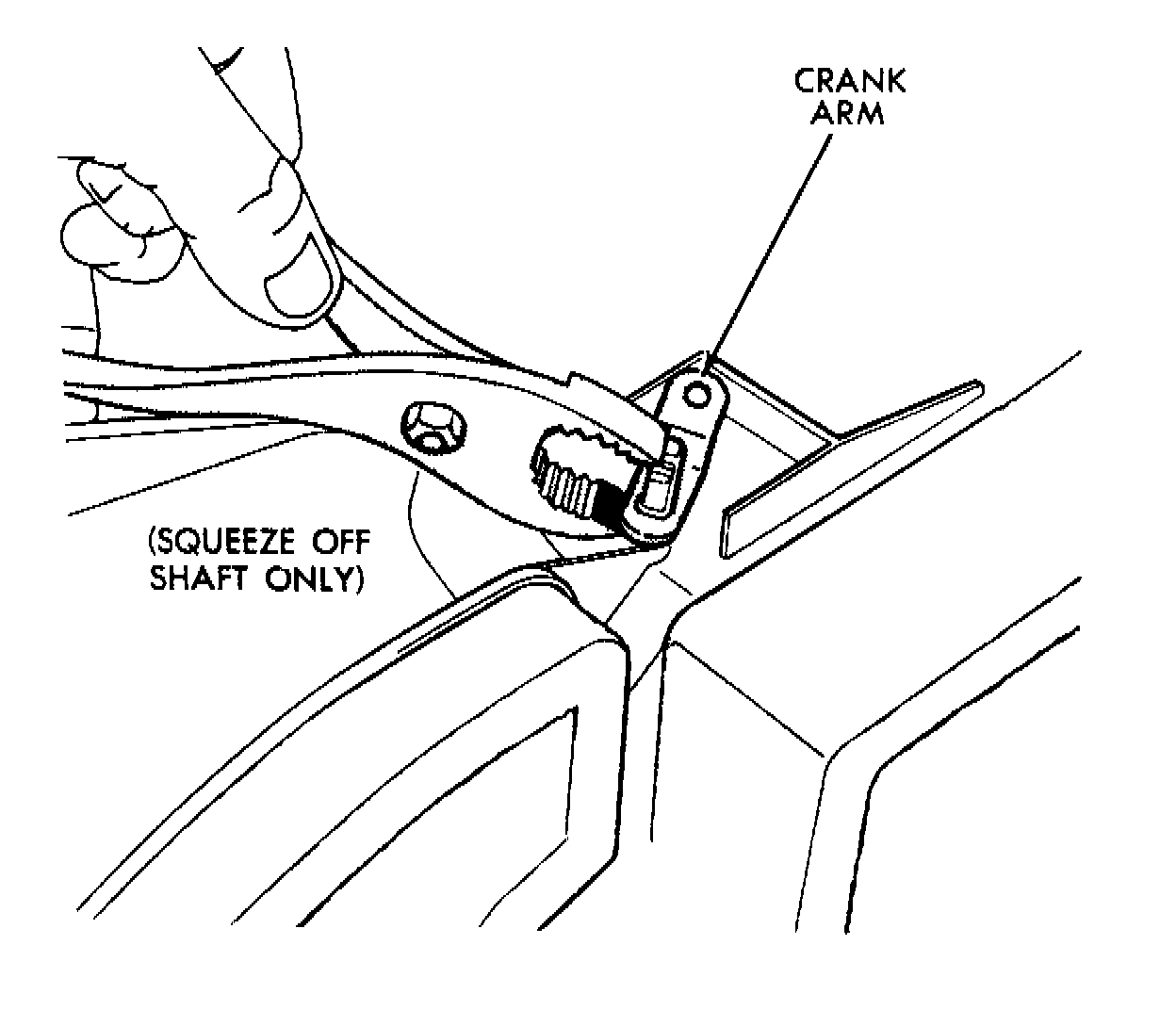

Blend Air Door Crank Linkage:
3. Using a common pair of pliers, place one plier jaw on top of pivot shaft and the other jaw under the crank arm linkage and pinch the crank arm off of the pivot shaft.
4. Disconnect the vacuum lines from the defrost and panel mode vacuum actuators and position them out of the way.
5. Remove three heater-A/C unit cover attaching screws going upward at the defroster outlet chamber.
6. Remove two heater-A/C unit cover attaching screws going upward at the air inlet plenum.

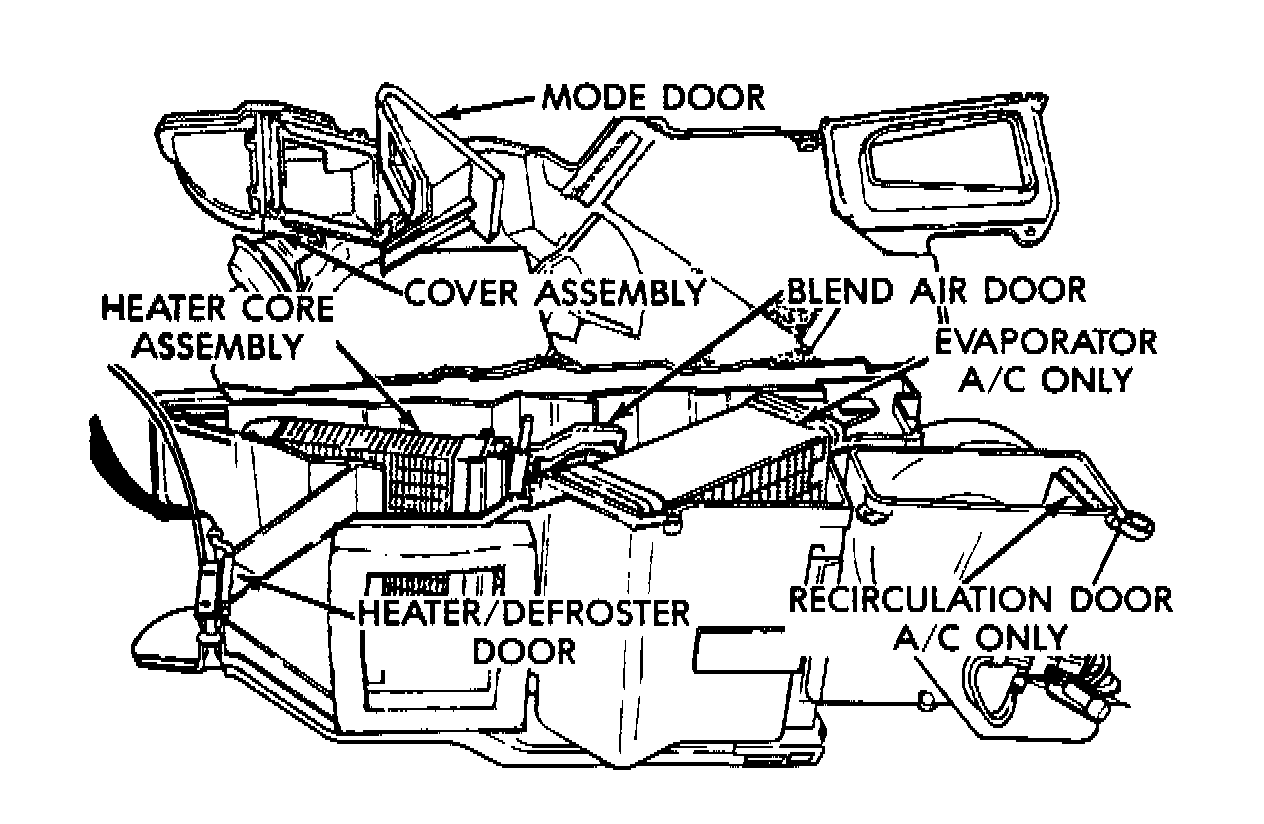

Heater A/C Unit Cover:
7. Remove eleven heater-A/C unit cover attaching screws going downward into the housing and lift the cover from the heater A/C unit.
8. To reassemble, lower the heater-A/C unit cover into place. Then guide the panel air mode door pivot shaft into its socket and reverse the preceding operation.
