Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

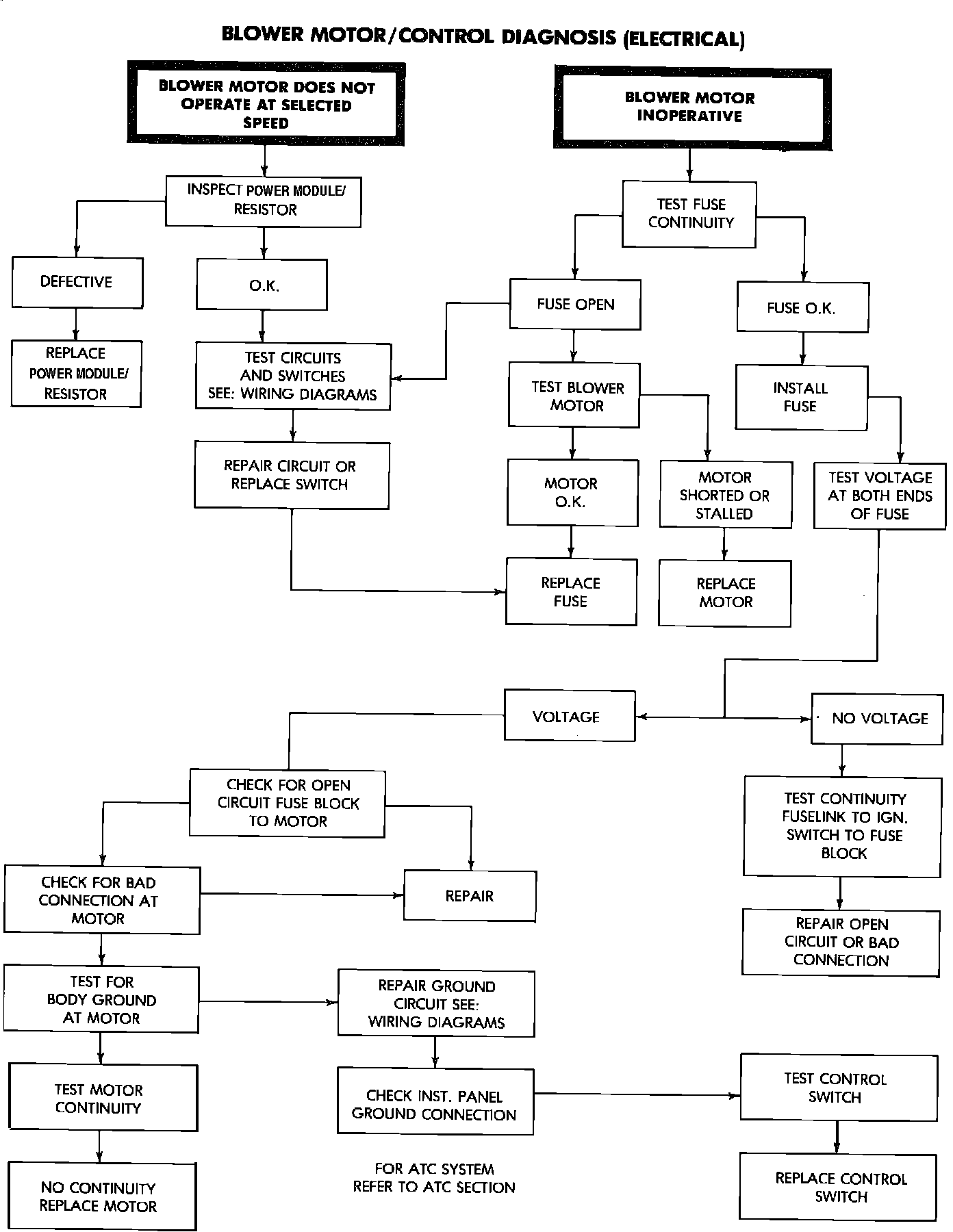

A/C Blower Motor & Control System Diagnosis (Electrical).:
