Defroster Duct Replacement

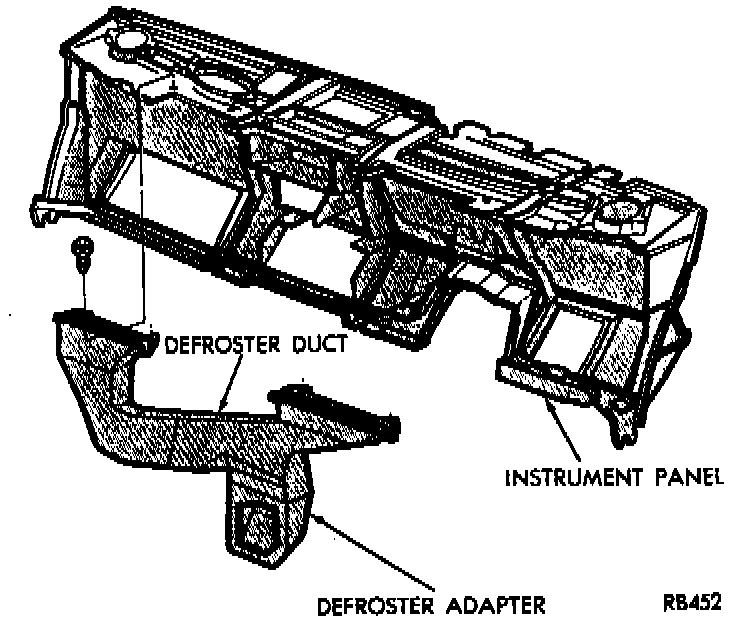

Defrost Duct:

1. Remove the air distribution duct.
2. Remove the defroster duct adapter.
3. Remove the instrument panel top cover.
4. Locate and remove defroster duct attaching screws at the ends of each outlet.
5. Allow the defroster duct to drop downward and remove it from the vehicle.

To install, reverse the preceding operation.
