Inspection

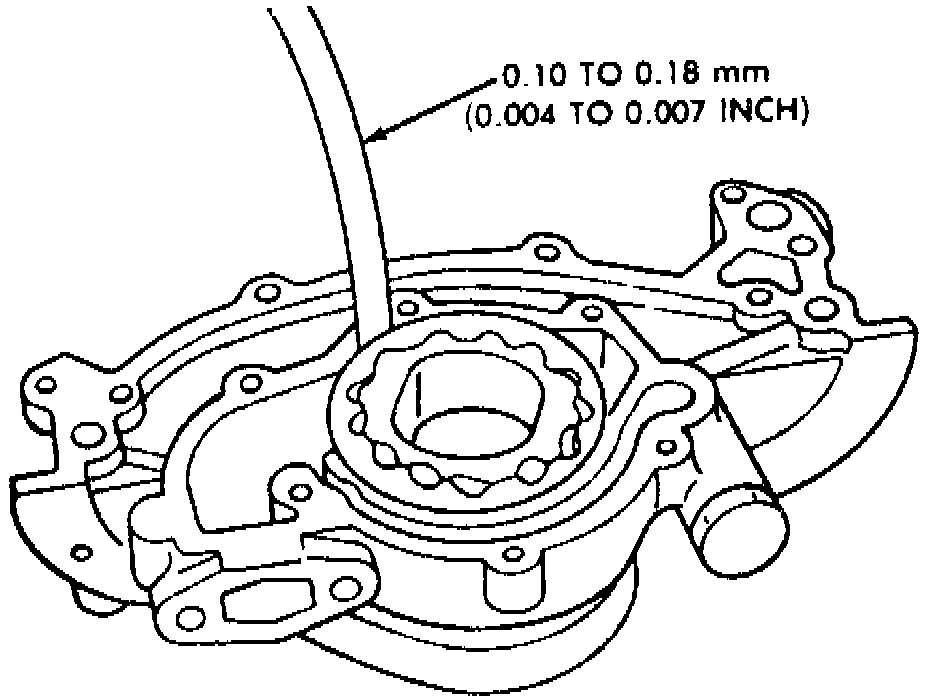

Oil Pump Rotor To Case Clearance:

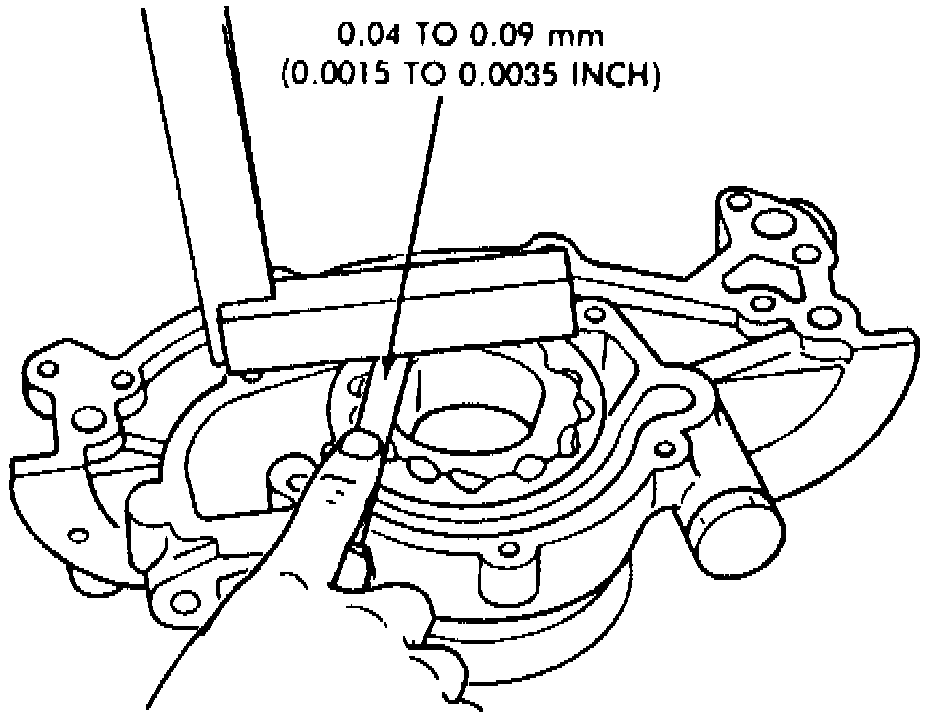

Oil Pump Side Clearance:





Check pump condition and perform checks according to illustrations.
