Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Harness >> Transmission Wiring >> With 41TE Electronically Controlled Transmission

With 41TE Electronically Controlled Transmission

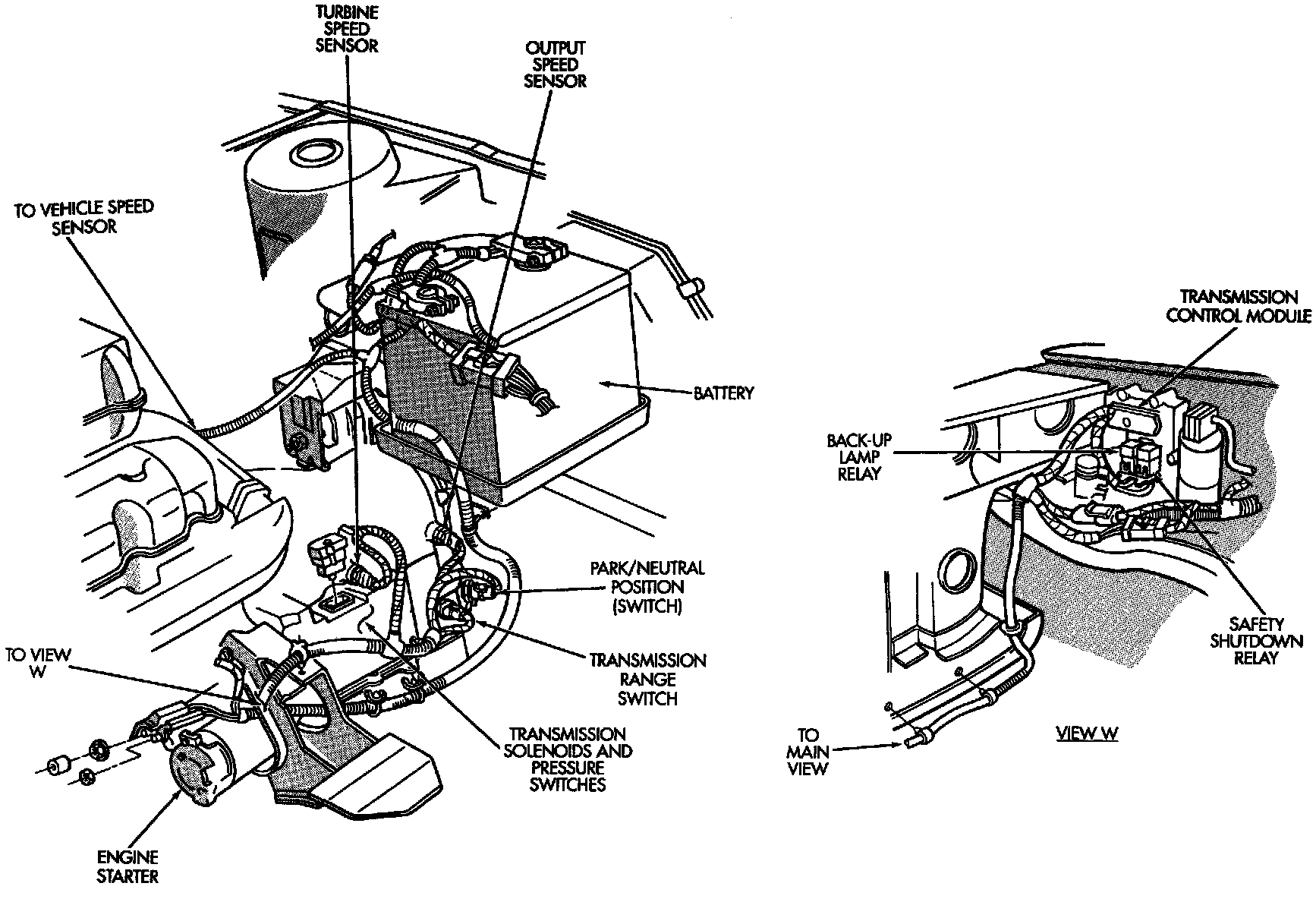

Transmission Wiring:
