Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Harness >> Instrument Panel Wiring (Connections)

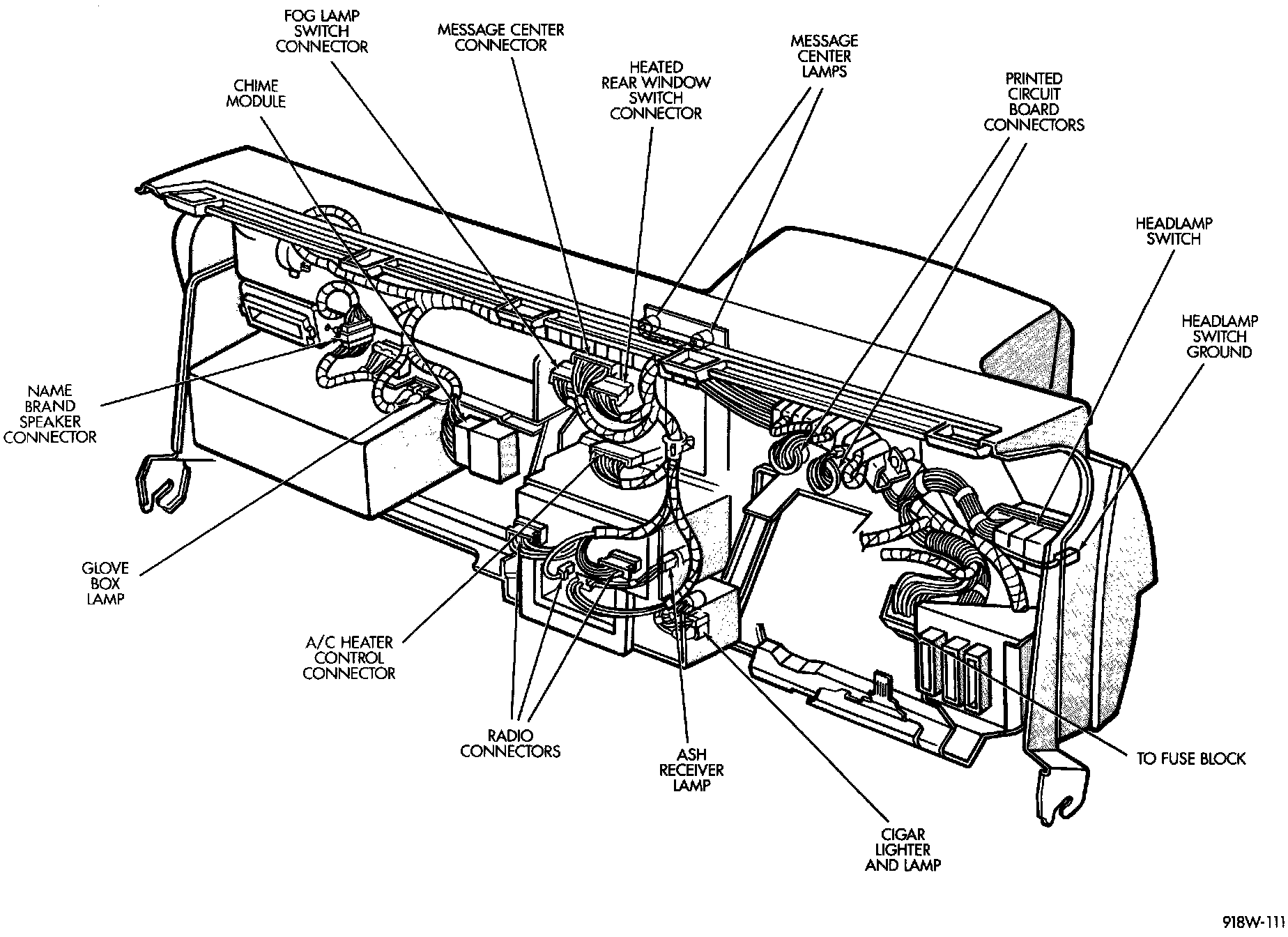

Instrument Panel Wiring (Connections)

Instrument Panel Wiring:
