Turn Signals

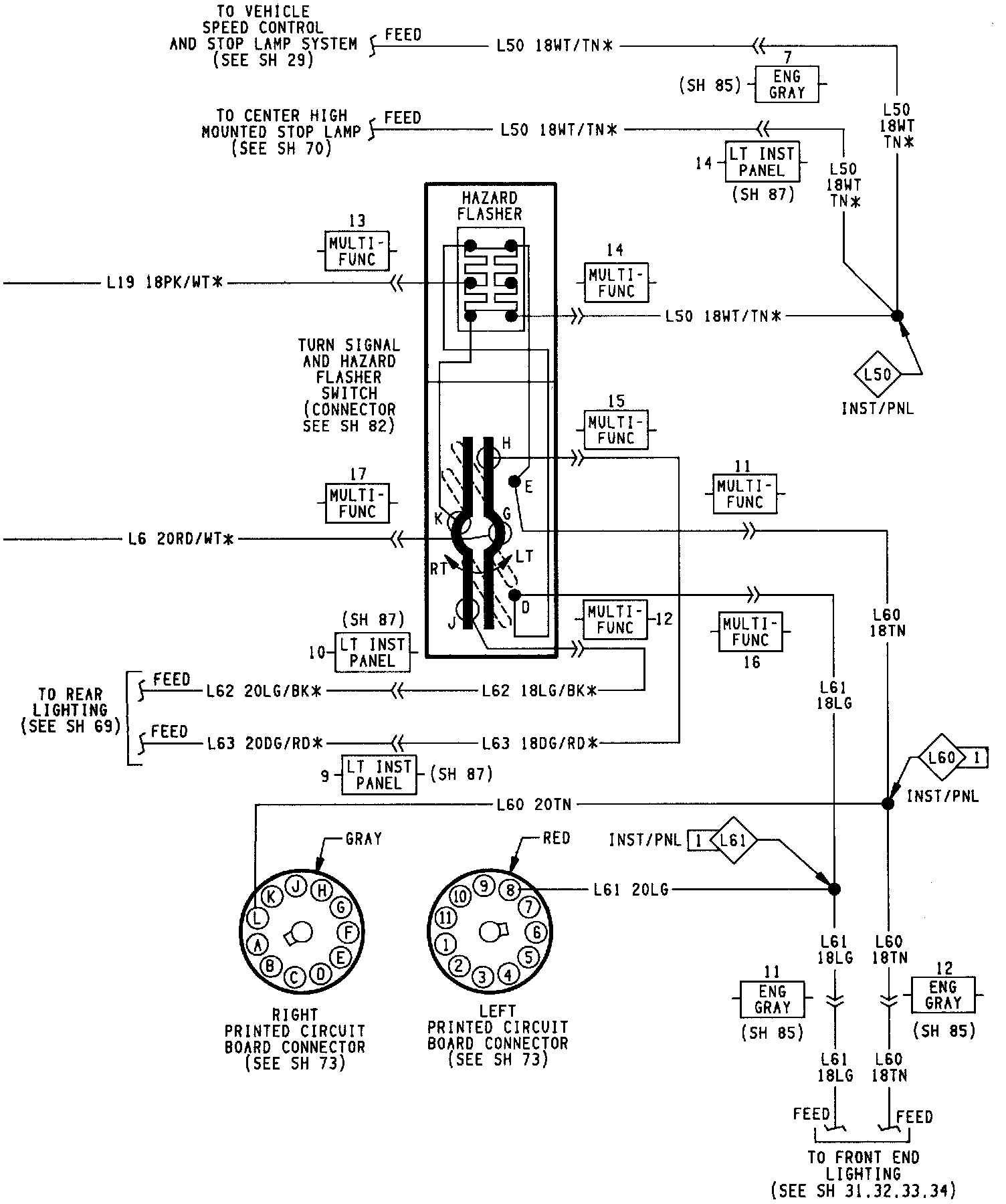

Turn And Hazard Flasher Systems (Part 1 of 2):

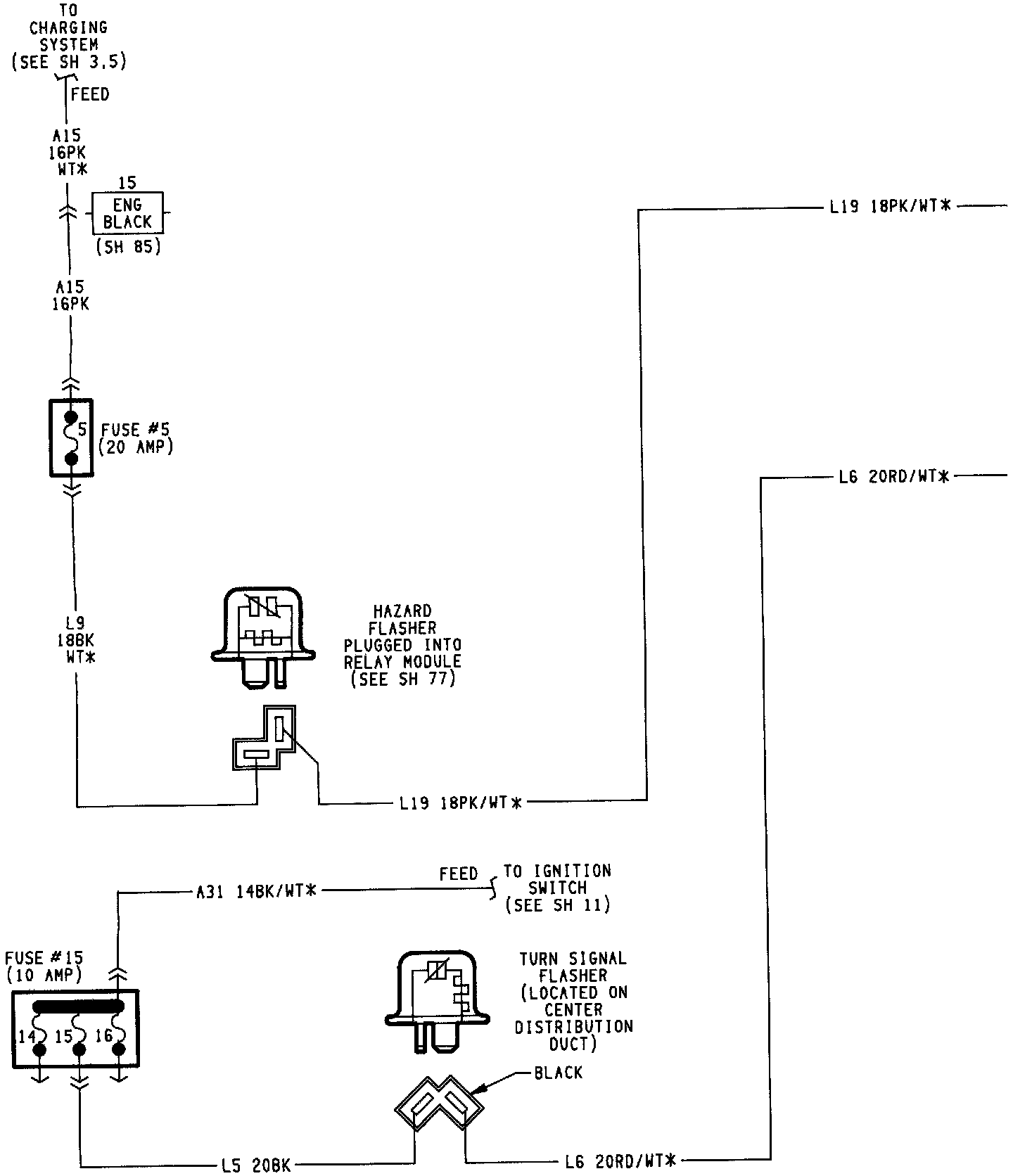

Turn And Hazard Flasher Systems (Part 2 of 2):
