Seat Belt Control Module

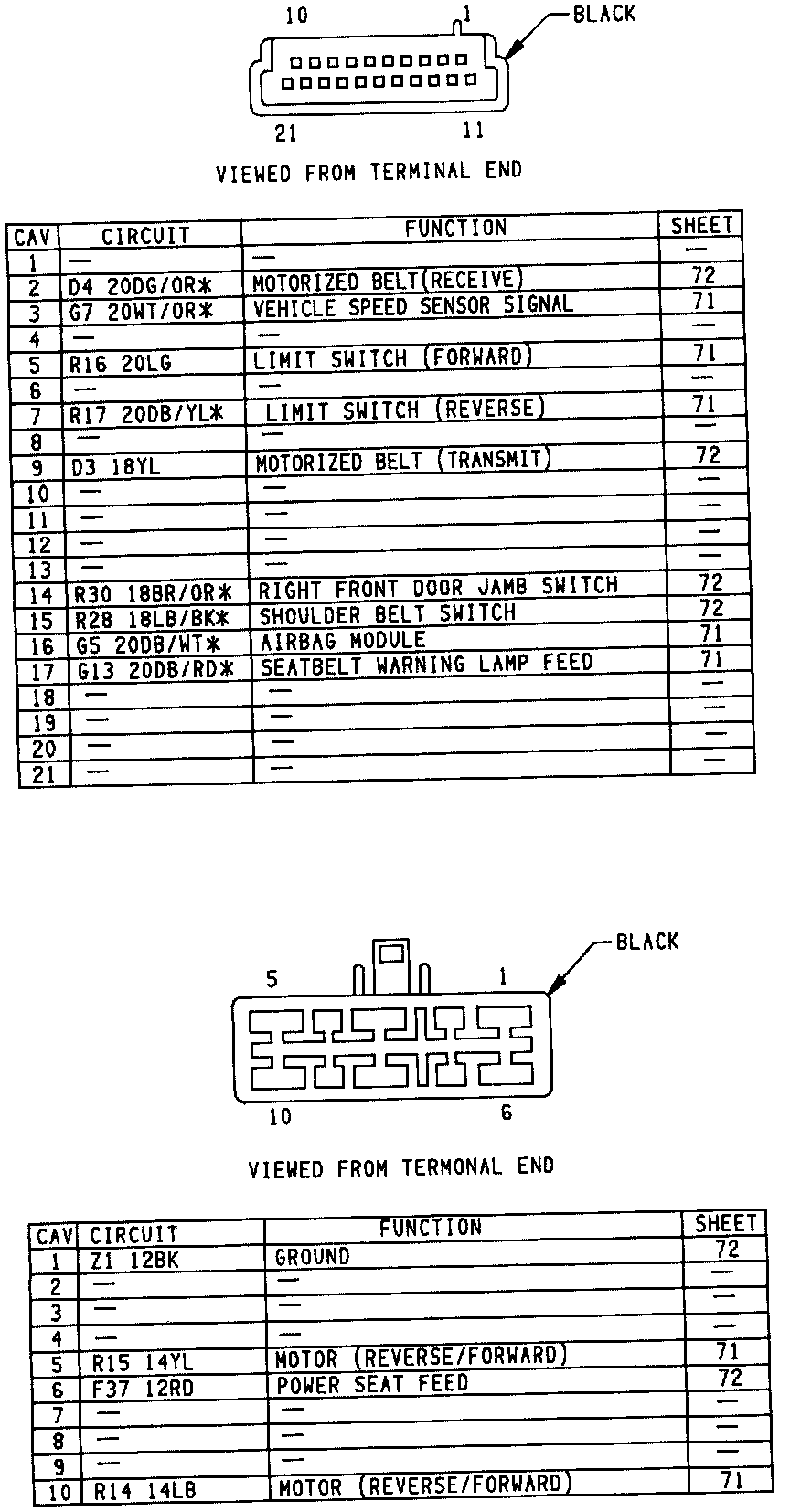

Passive Belt Control Module (PBCM) Connector:

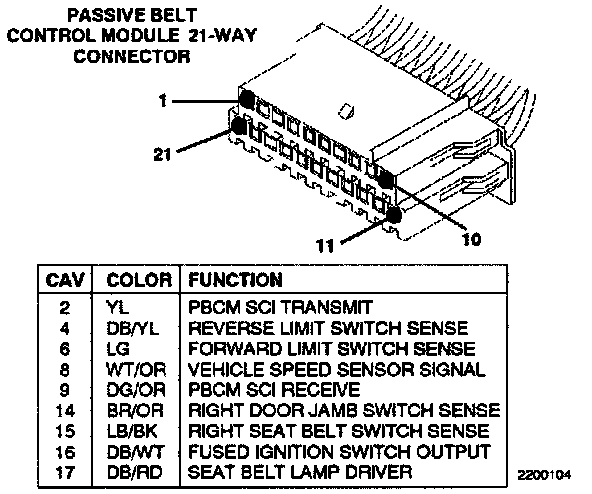

Passive Seatbelt Control Module:
