Windshield Header Lining Removal

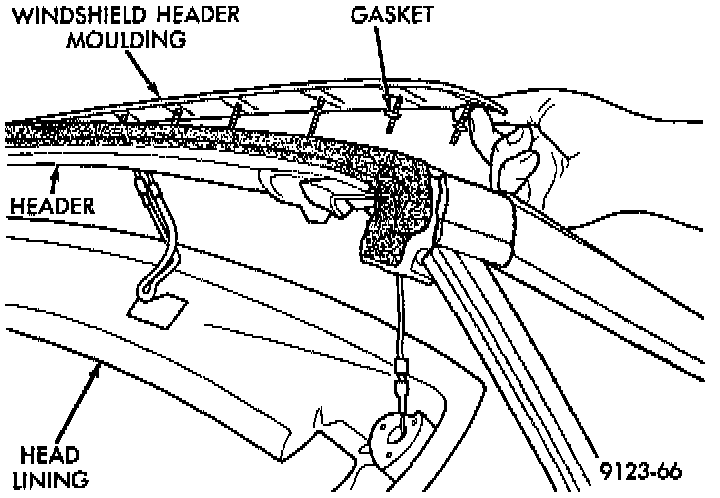

Windshield Header Moulding:





1. Remove sun visors and inner sun visor hanger clips.
2. Remove upper A-pillar trim covers.
3. Remove dome lamp.
4. Separate header lining from vehicle.
5. Reverse the preceding operation for installation.
