Top Header Trim Cover Removal

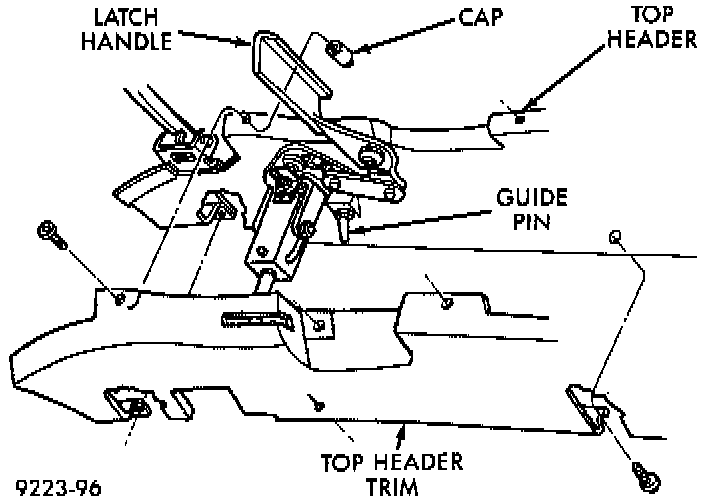

Top Header Trim:





1. Lower top.
2. Remove screws holding header trim to top header.

CAUTION: The screws on the rearward edge have caps over the pointed ends to protect top operator from injury.

3. Separate trim from header.
4. Reverse the preceding operation for installation.
