Second Roof Bow and Linkage Removal

SECOND ROOF BOW AND LINKAGE REMOVAL
1. Lower convertible top.

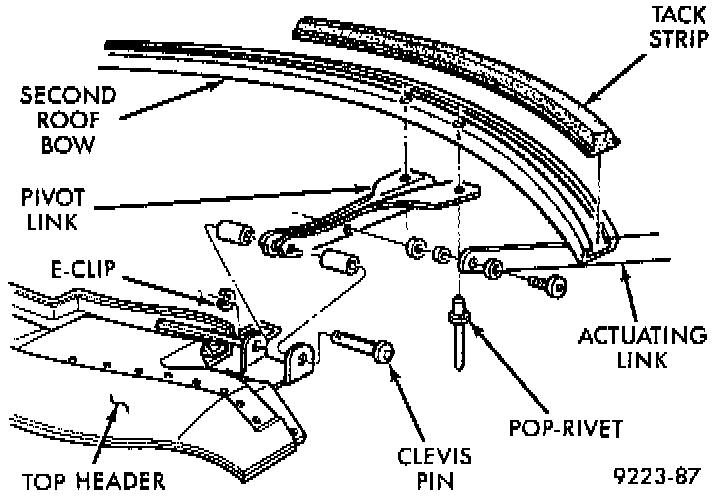

Second Roof Bow:

2. Remove E-clip and clevis pin holding second roof how pivot link to top header.
3. Remove screws holding second roof bow actuating link to pivot link.

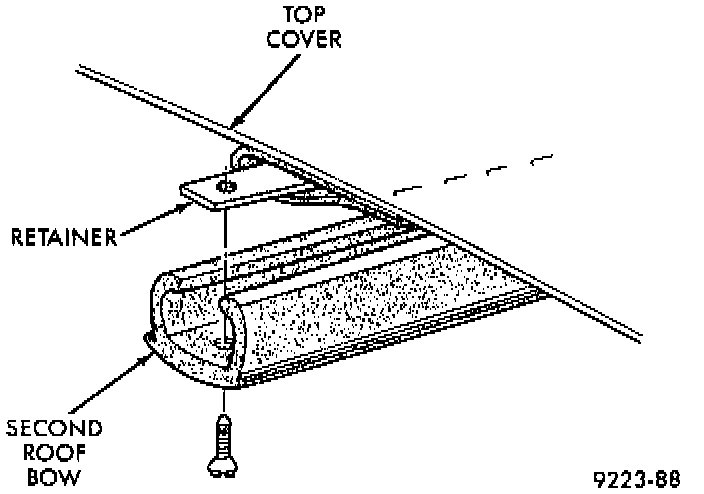

Second Roof Bow Retainer:

4. Remove screws holding second roof bow to top cover listing retainer.
5. Remove staples holding stay pads to second roof bow.
6. Separate second roof bow from top frame.

INSTALLATION
1. Position second roof bow on convertible top.
2. Staple stay pads to second roof bow tack strip in same locations as the original assembly.
3. Install screws to hold top cover listing retainer to second roof bow.
4. install screws washers and spacers to hold roof bow actuating link to pivot link.
5. Install clevis pins and E-clips to hold second roof bow pivot link to top header.
6. Verify convertible top operation.
