Roof Linkage Removal

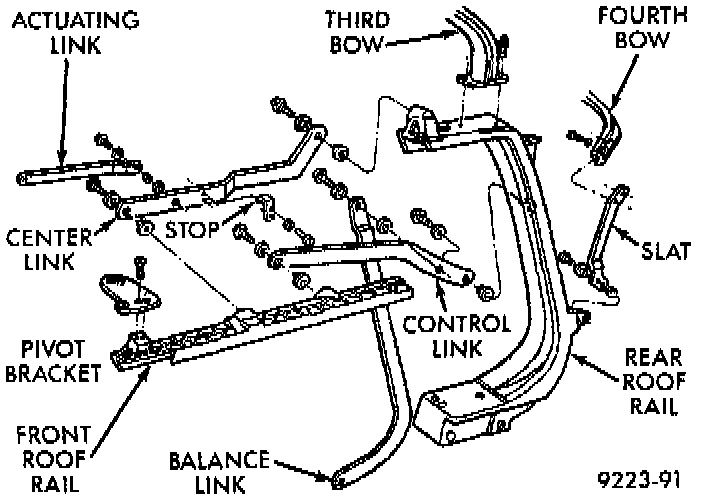

Roof Rails And Linkage:

1. Disengage top header latches.
2. Remove bolt, washer and bushing holding balance link arm to control link.
3. Remove bolt, washer and bushing holding balance link arm to rear roof rail behind quarter trim link.
4. Separate balance link arm from vehicle.
5. Reverse the preceding operation for installation.
