A-Pillar and Windshield Header Weatherstrip Removal

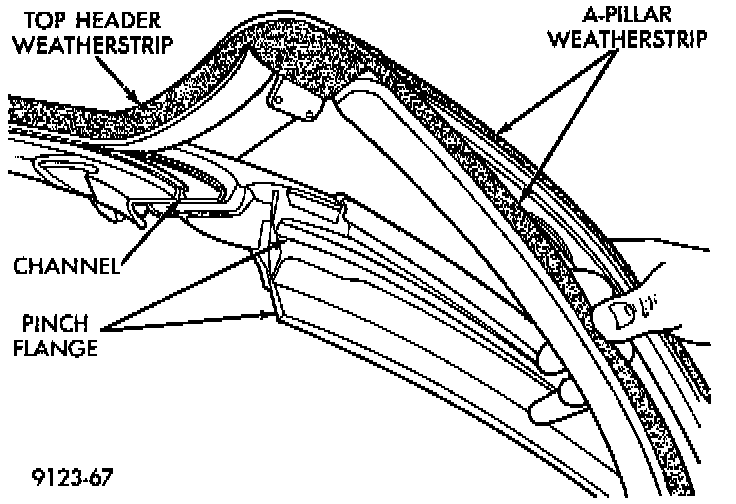

A-Pillar And Windshield Header Weatherstrip:

REMOVAL
1. Remove upper and lower A-pillar trim covers.
2. Remove header lining and moulding.
3. Pull A-pillar door opening weatherstrip from pinch flange.
4. Pull drip rail weatherstrip from drip rail next to windshield.
5. Pull windshield header weatherstrip from retaining channel and separate weatherstrip from vehicle.

INSTALLATION
1. Apply a bead of Mopar, Glass Adhesive and Sealer to back of windshield header weatherstrip.
2. Apply a strip of double sided adhesive tape to windshield header rearward of the header moulding stud holes.
3. Reverse the removal operation.
