Front Door

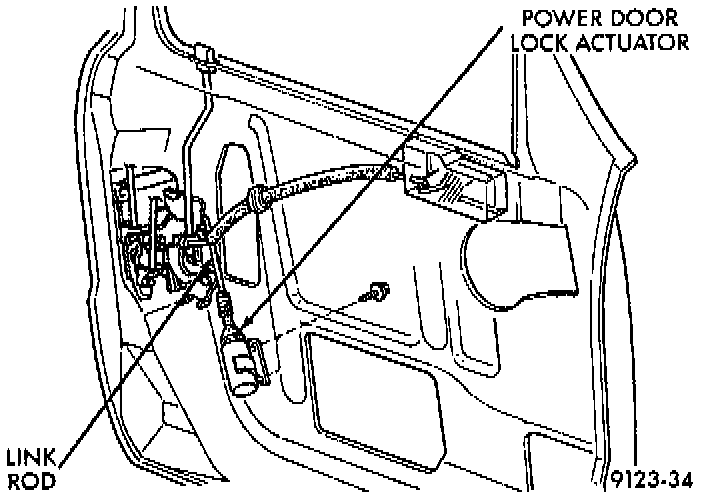

Front Power Door Lock Actuator:

1. Disconnect battery negative cable.
2. Remove front door trim panel.
3. Remove water shield as necessary.
4. Remove rivets holding lock motor to inner door panel with a 6 mm (1/4 in.) drill.
5. Disconnect lock motor linkage rod from door latch.
6. Disconnect lock motor wire connector.
7. Separate lock motor from door.
8. Reverse the preceding operation for installation.
