Trim Panel: Service and Repair

Interior Mouldings, Panels, And Trim Covers:

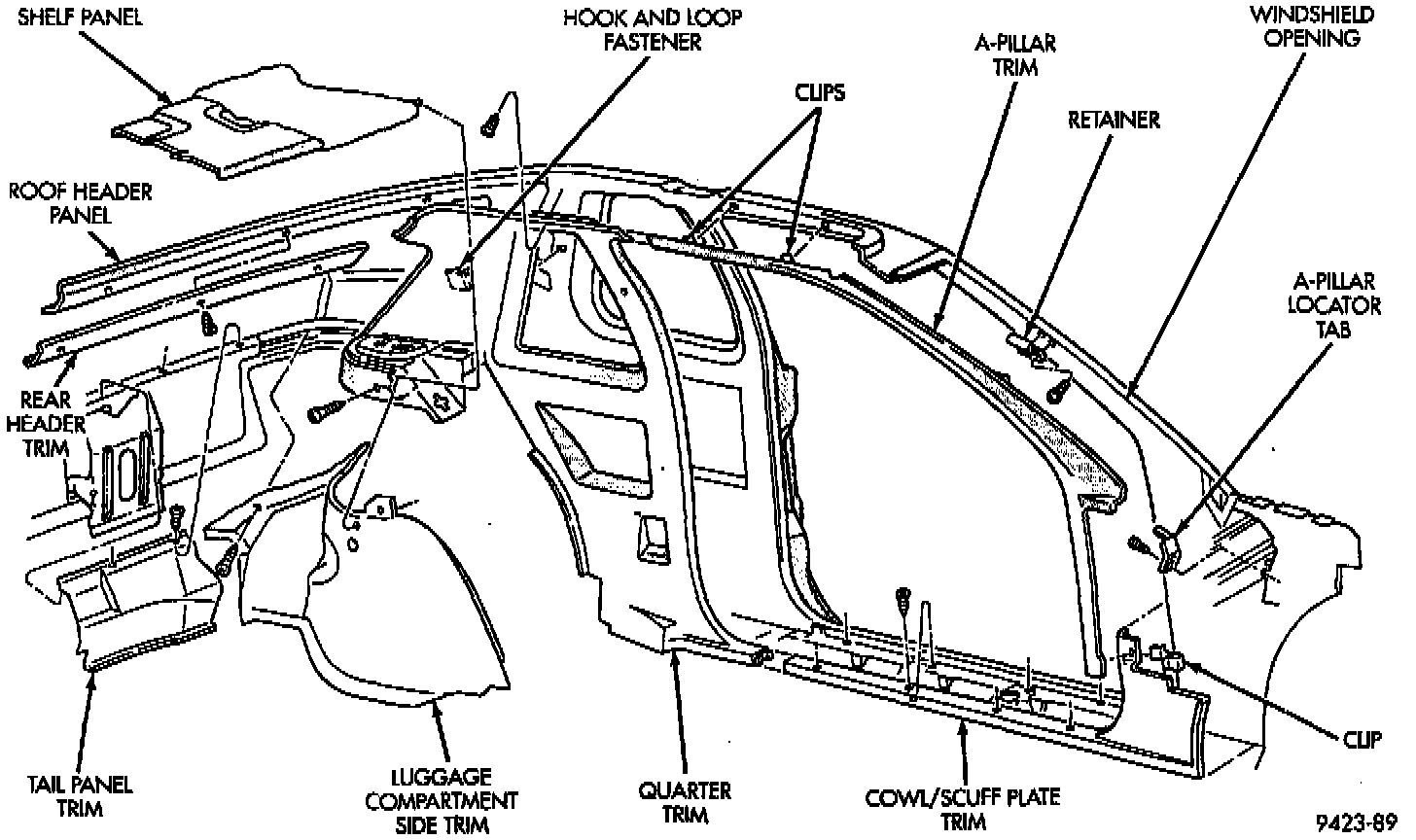

2 door models

Interior Mouldings, Panels, And Trim Covers:

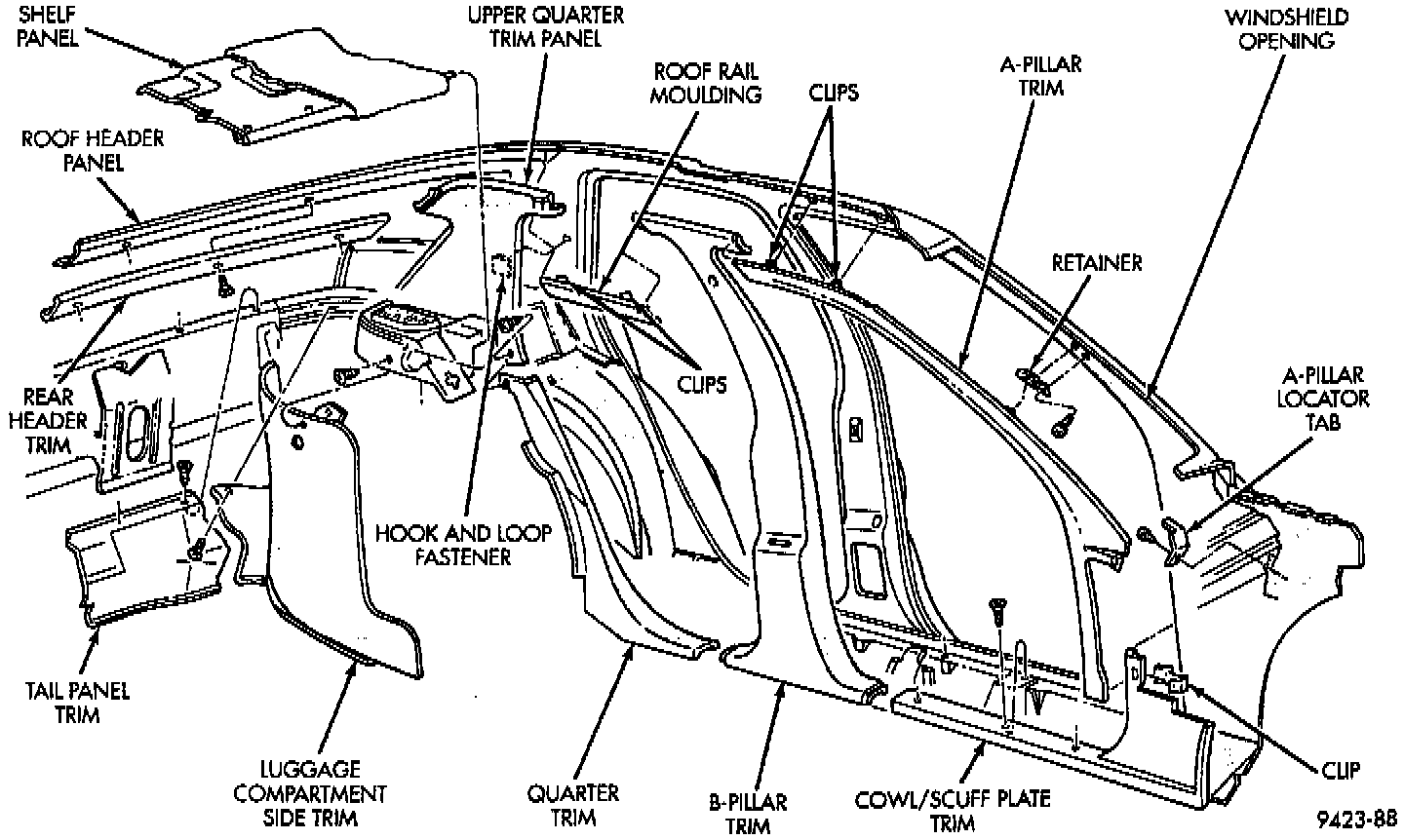

4 door models

COWL PANEL TRIM AND SCUFF PLATES REMOVAL
1. Open front door.
2. Remove screw holding trim panel to cowl forward of the front door opening.
3. Remove screws holding scuff plate to door sill.
4. Separate cowl panel trim and scuff plate from vehicle.
5. Reverse the preceding operation for installation.

A-PILLAR MOULDING REMOVAL
1. Open front door.
2. Disengage clips holding A-pillar moulding to roof rail above door opening.
3. Slide A-pillar moulding upward and pull rearward to separate moulding from A-pillar.
4. Reverse the preceding operation for installation.

REAR DOOR ROOF RAIL MOULDING REMOVAL
1. Open rear door.
2. Disengage clips holding roof rail moulding to roof rail above rear door opening.
3. Separate moulding from vehicle.
4. Reverse the preceding operation for installation.

B-PILLAR TRIM PANEL REMOVAL
1. Remove roof rail mouldings and scuff plates as necessary.
2. Remove shoulder harness turning loop cover. Remove bolt holding turning loop to B-pillar.
3. Remove bolt holding seat belt to floor below B-pillar.
4. Lift B-pillar trim off door opening sill weatherstrips and push inward.
5. Slide B-pillar trim downward as far as possible and separate trim from B-pillar.
6. Reverse the preceding operation for installation.

UPPER QUARTER TRIM PANEL REMOVAL
1. Remove roof rail mouldings as necessary
2. Remove shoulder harness turning loop cover. Remove bolt holding turning loop to quarter panel.
3. Remove rear seat as necessary to gain access to quarter trim fasteners.
4. Remove screws holding rear header moulding to roof as necessary to clear quarter removal path.
5. Remove screws holding upper quarter trim panel to quarter panel.
6. Disengage hook and loop fastener holding trim to quarter panel.
7. Pull trim panel forward and separate from vehicle.
8. Reverse the preceding operation for installation.

LOWER QUARTER TRIM PANEL REMOVAL
1. Open rear door.
2. Remove rear seat as necessary to gain access to quarter trim fasteners.
3. Remove screw holding lower quarter trim panel to quarter panel.
4. Separate lower quarter trim panel from vehicle.
5. Reverse the preceding operation for installation.

QUARTER TRIM PANEL BODY REMOVAL
1. Remove roof rail mouldings and scuff plates as necessary.
2. Remove shoulder harness turning loop cover. Remove bolt holding turning loop to quarter panel.
3. Remove rear seat cushion, back, and rear bolster.
4. Remove screws holding rear header moulding to roof as necessary to clear quarter removal path.
5. Remove screws holding upper quarter trim panel to quarter panel.
6. Disengage hook and loop fastener holding trim to quarter panel.
7. Pull trim panel forward and separate from vehicle.
8. Reverse the preceding operation for installation.
