Rear Door Latch: Service and Repair

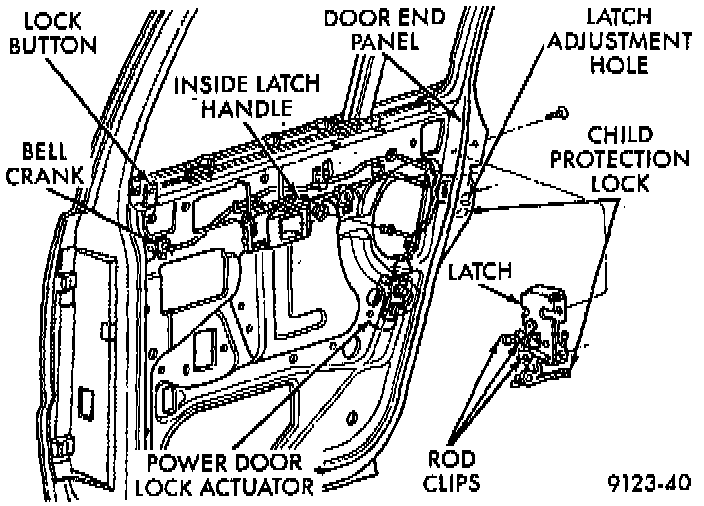

Rear Door Latch Assembly:

1. Remove door trim panel, silencer pad and water shield.
2. Raise door glass to full up position.
3. Remove door speaker, if equipped.
4. Disconnect all actuator rods from door latch assembly.
5. Remove screws holding door latch assembly to inner door rear panel and separate from door.
6. Reverse the preceding operation for installation.
