Radio - Substitution

NO.: 08-55-93

GROUP: Electrical

DATE: Nov. 12, 1993

SUBJECT:
Clarion Radio Substitution

MODELS:

1994 (AP) Shadow/Sundance

NOTE:
THIS BULLETIN APPLIES TO VEHICLES ORDERED WITH AM/FM STEREO W/CASSETTE (RAS) RADIOS WITH BUILD DATES AFTER 11/1/93 (MDH 1101XX).

DISCUSSION:

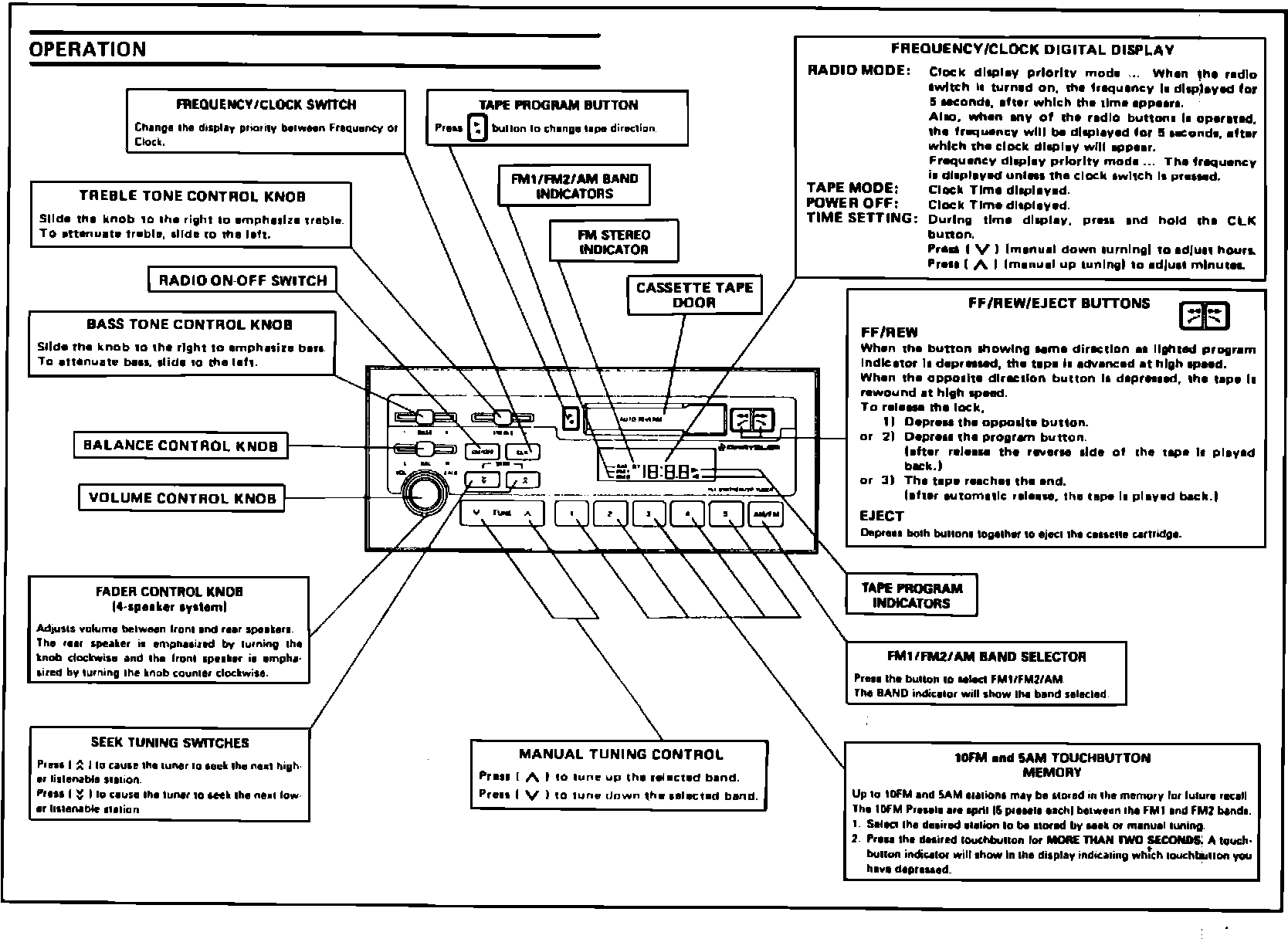

A Mopar Clarion AM-FM Stereo Cassette radio will be temporarily substituted for the Huntsville AM-FM Stereo Cassette (Sales Code, RAS). This radio can be identified by the horizontal bass, treble, and balance control knobs and the Chrysler logo. See Illustration.

A Clarion Owner's Guide will be included in the owner's manual packet that is inserted in the glove box at the assembly plant.

The warranty is handled through the Mopar Authorized Service Centers, as outlined in Section 6-F in the Warranty Policy and Procedure Manual.

POLICY: Information Only
