SC-2A Speed Control Switch Signal Circuit Inspection

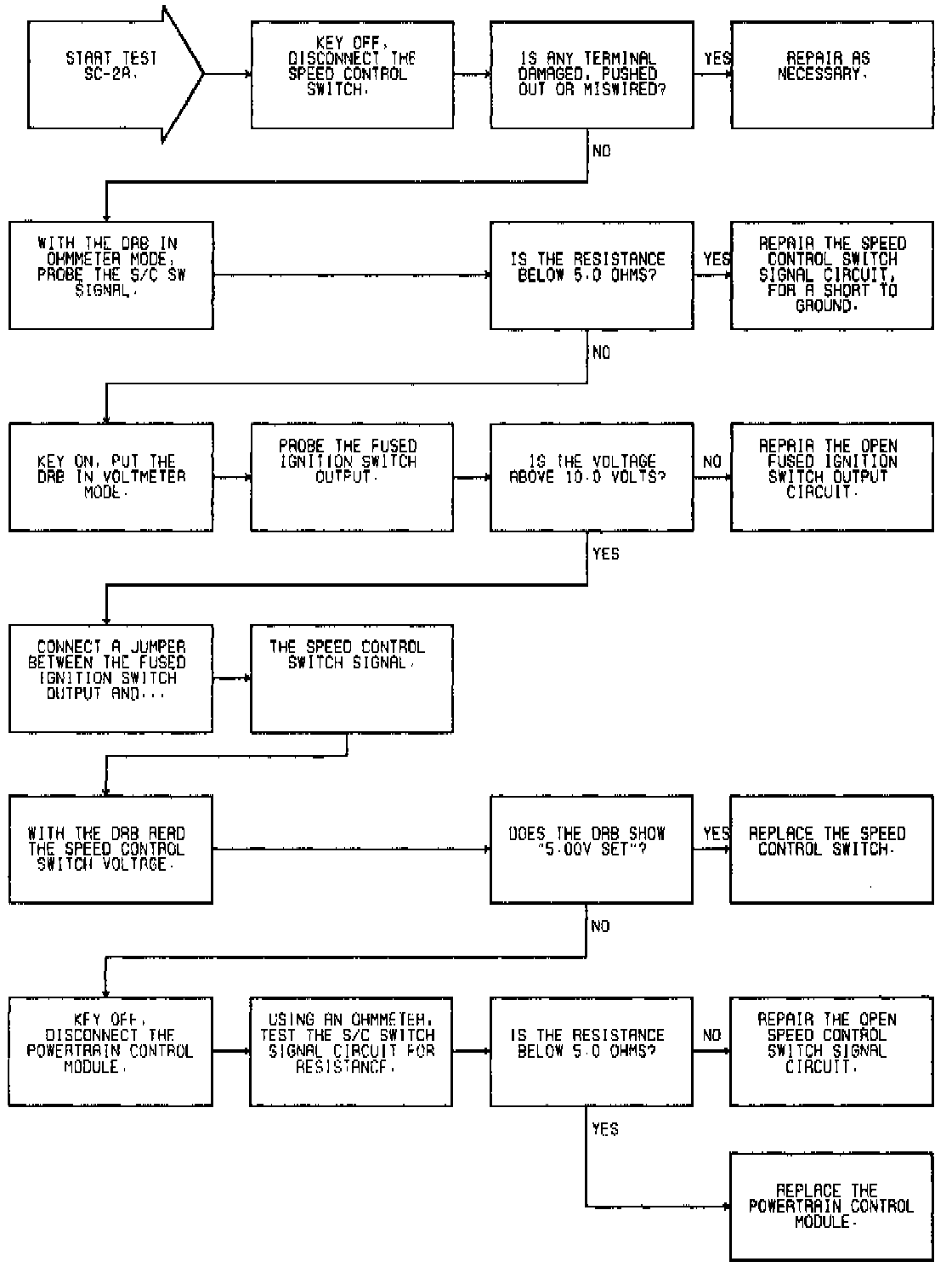

Fig. 11 Test SC-2A: Speed Control Switch Signal Circuit Inspection:
