Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-2A Checking Speed Switch Signal Circuit

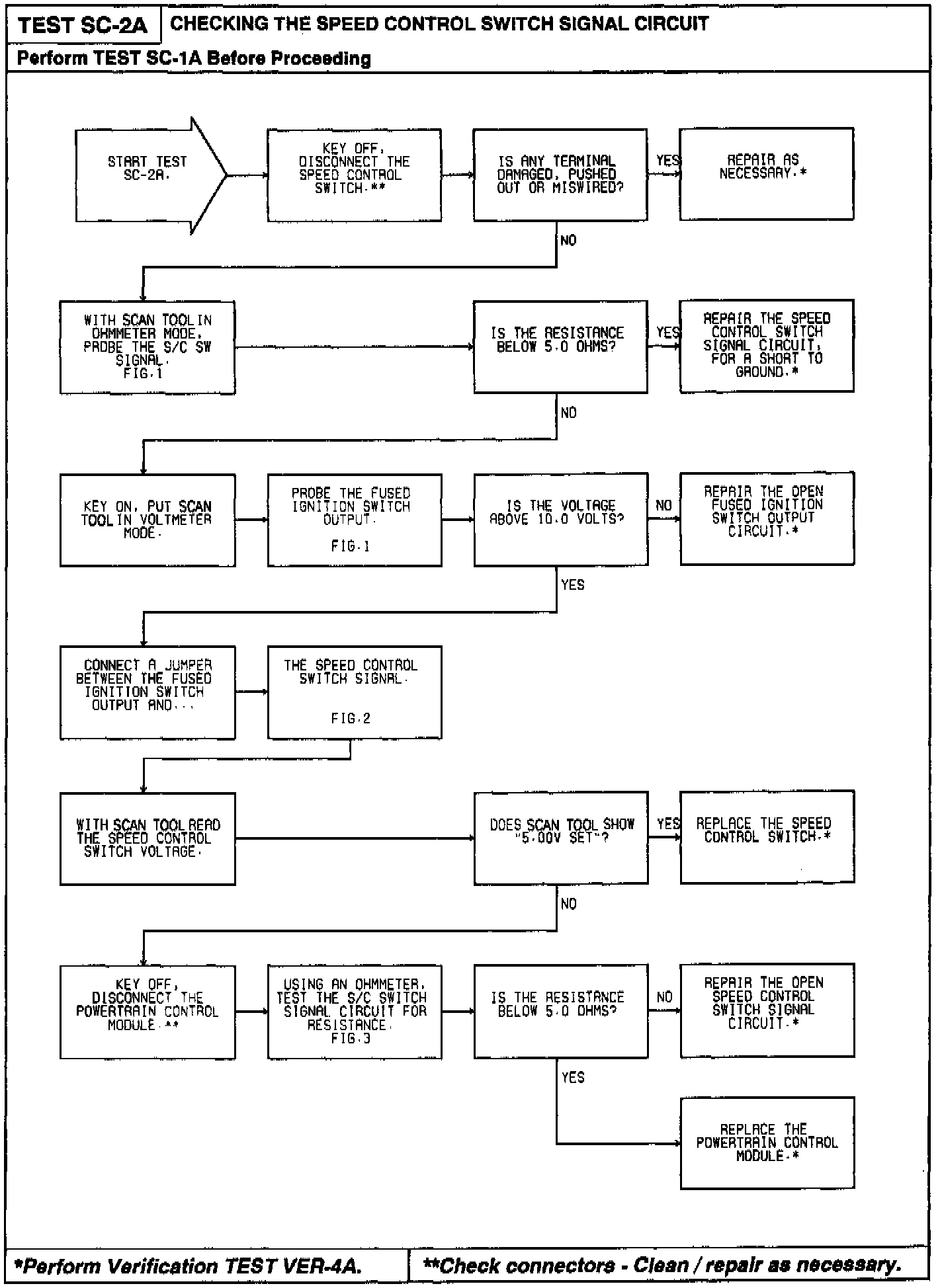

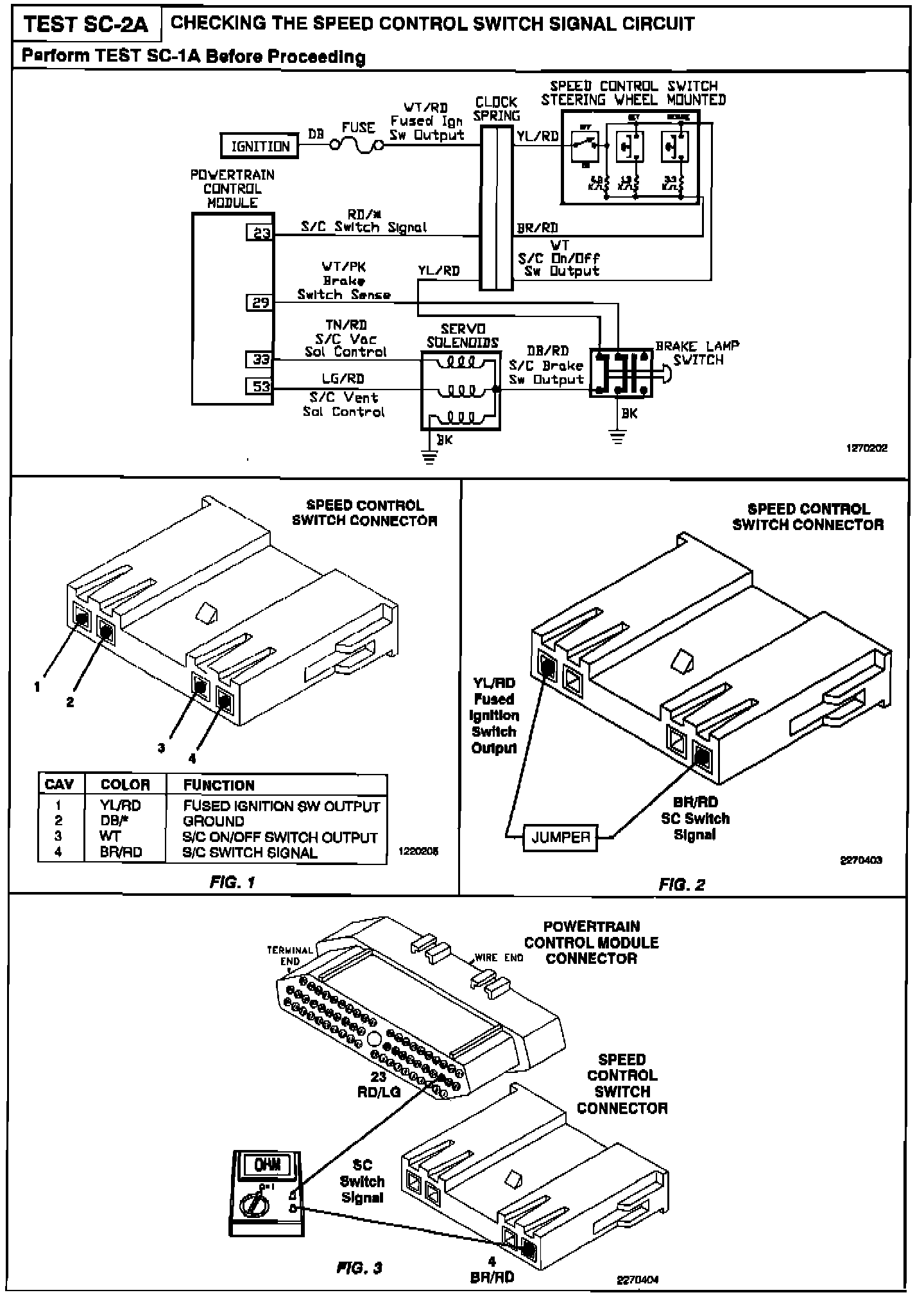

SC-2A Checking Speed Switch Signal Circuit

Part 1 Of 1:



Part 1 Of 1:
