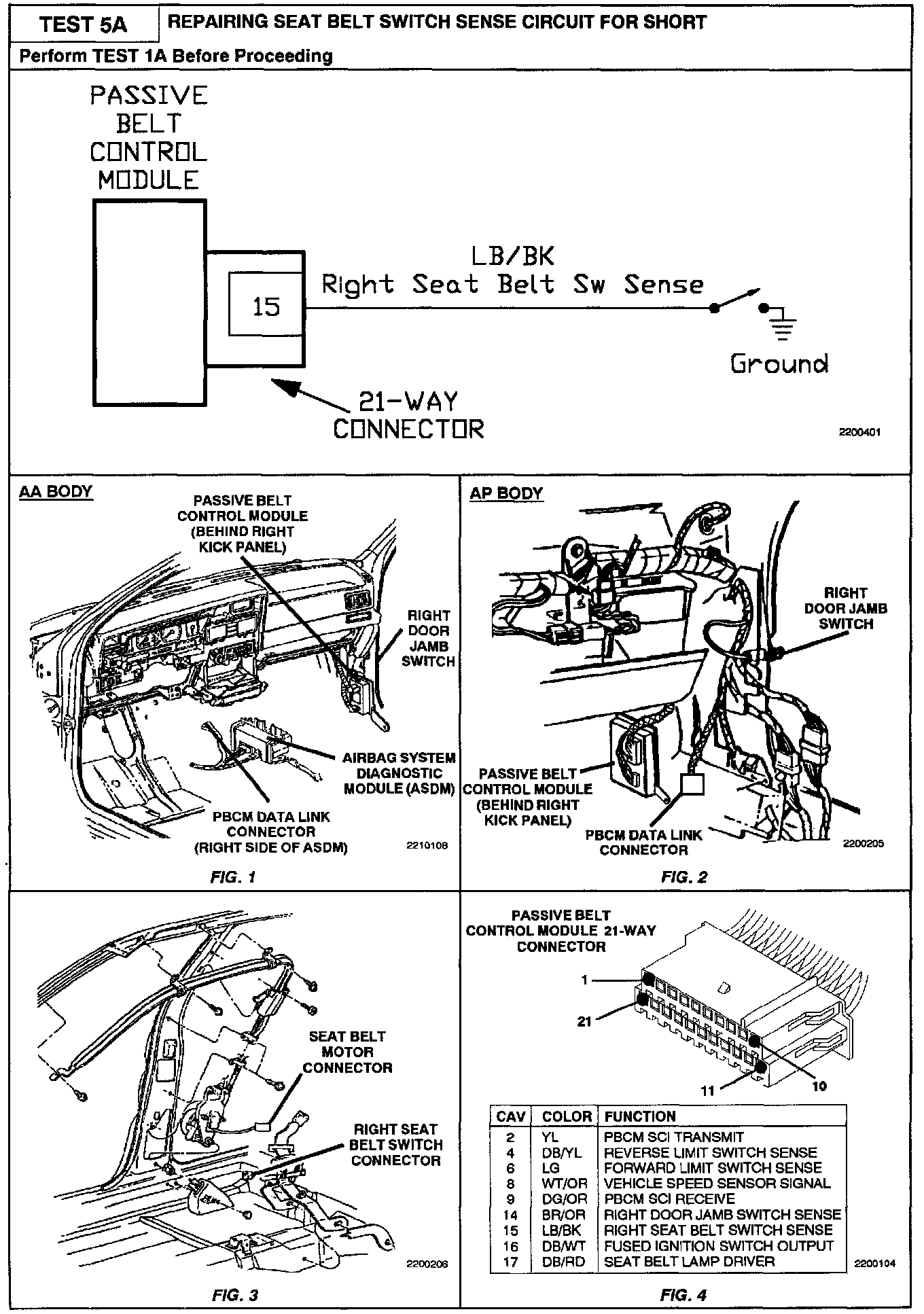

5A Repairing Seat Belt Switch Sense Circuit For Short
5A Repairing Seat Belt Switch Sense Circuit For Short

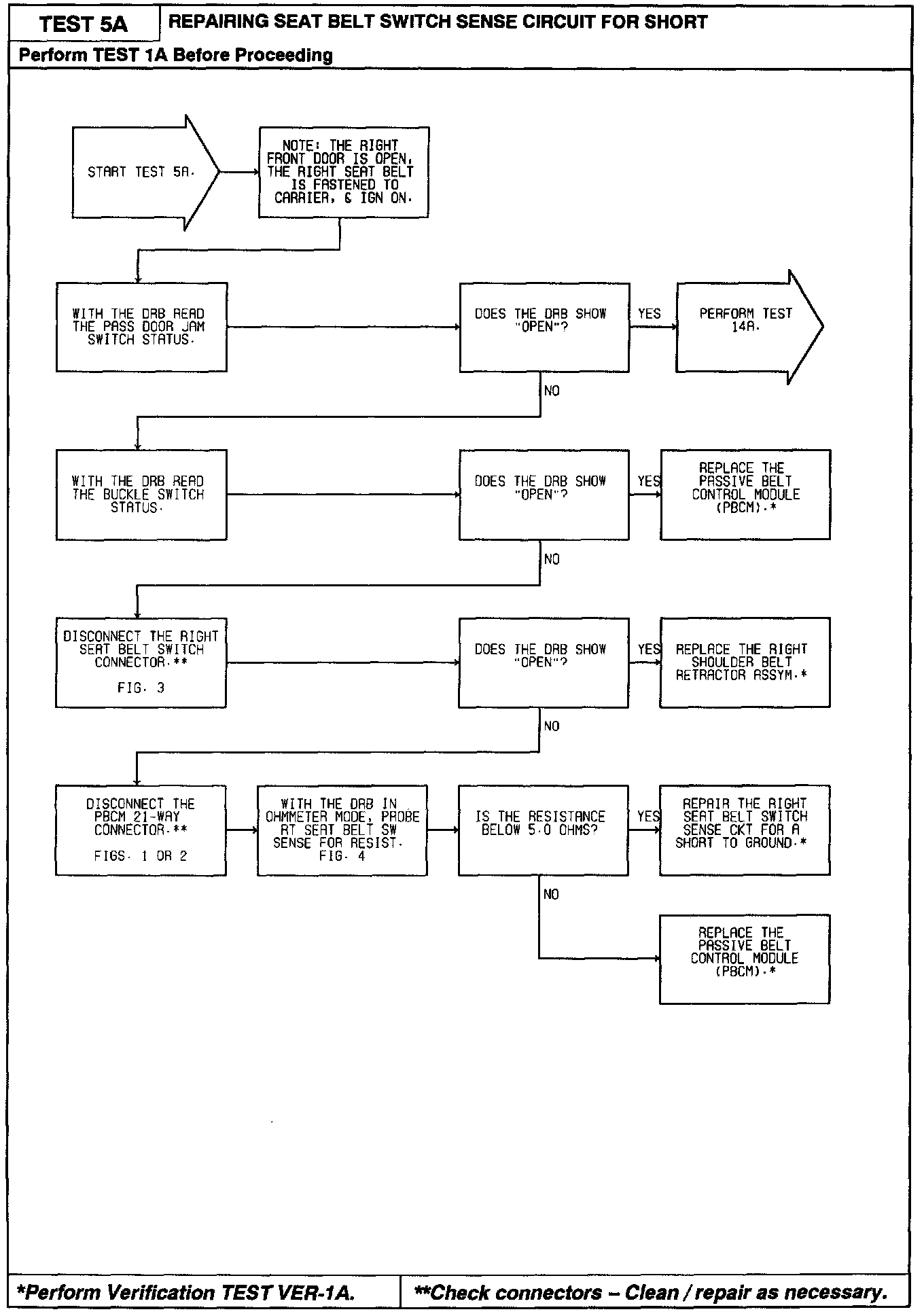

Diagnostic Chart:
Related Images:
