Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Seat Belt Systems >> 4A Identifying Passive Belt Control Trouble Codes >> Part 1 of 2

Part 1 of 2

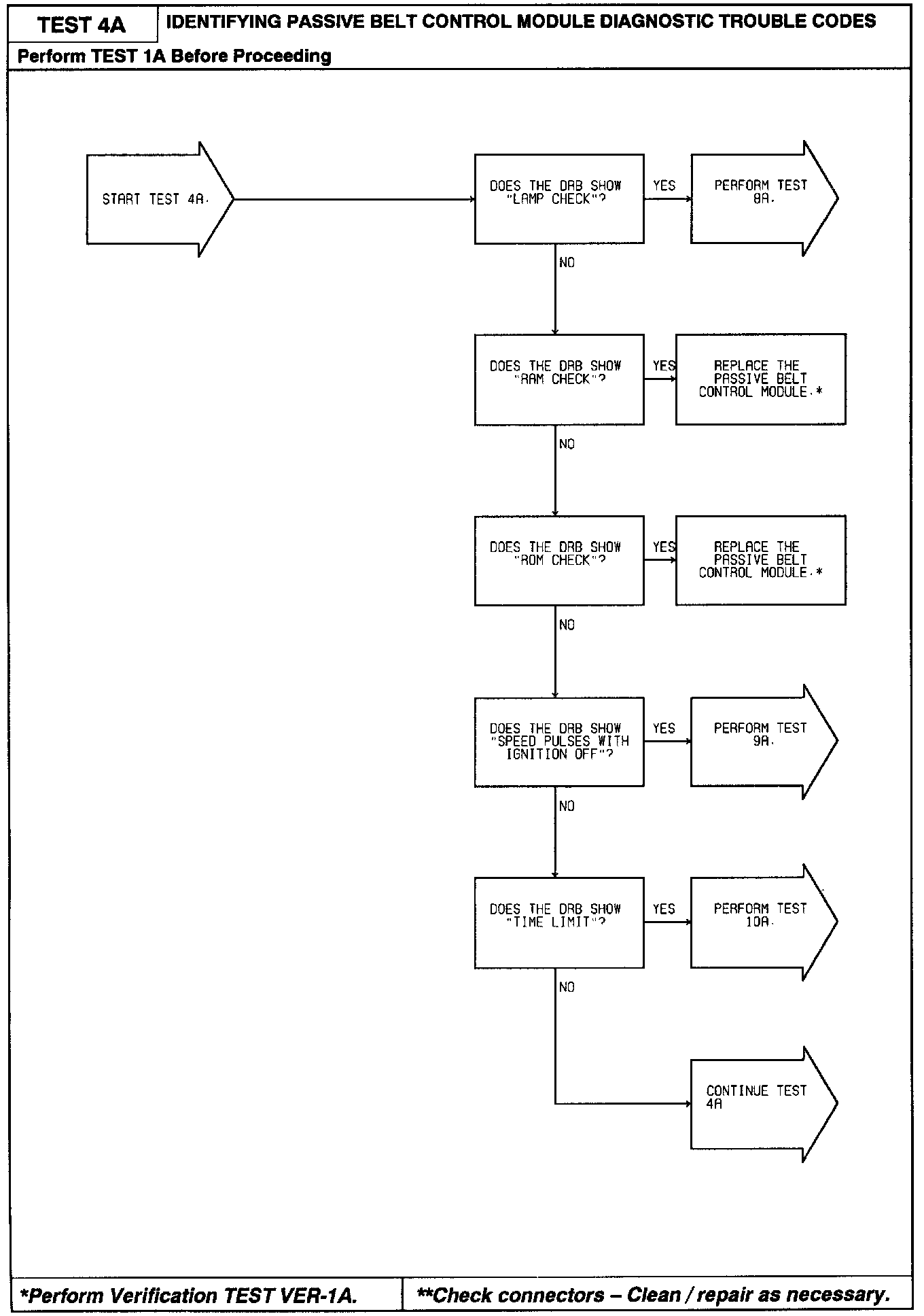

Diagnostic Chart:
