Home
>>
Dodge
>>
1994
>>
Shadow Convertible V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Seat Belt Systems
>>

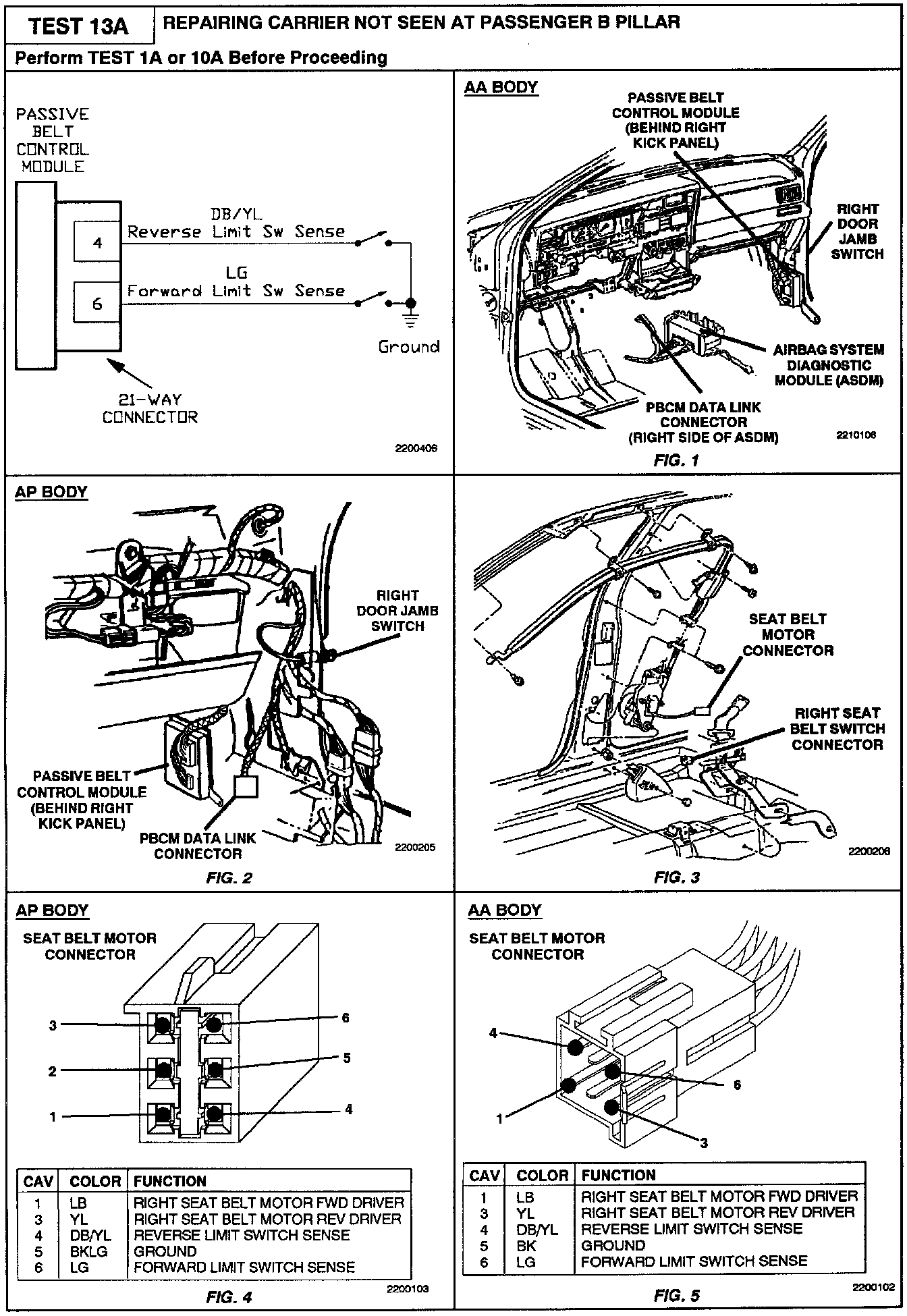

13A Repairing Carrier Not Seen at Passenger B Pillar
13A Repairing Carrier Not Seen at Passenger B Pillar

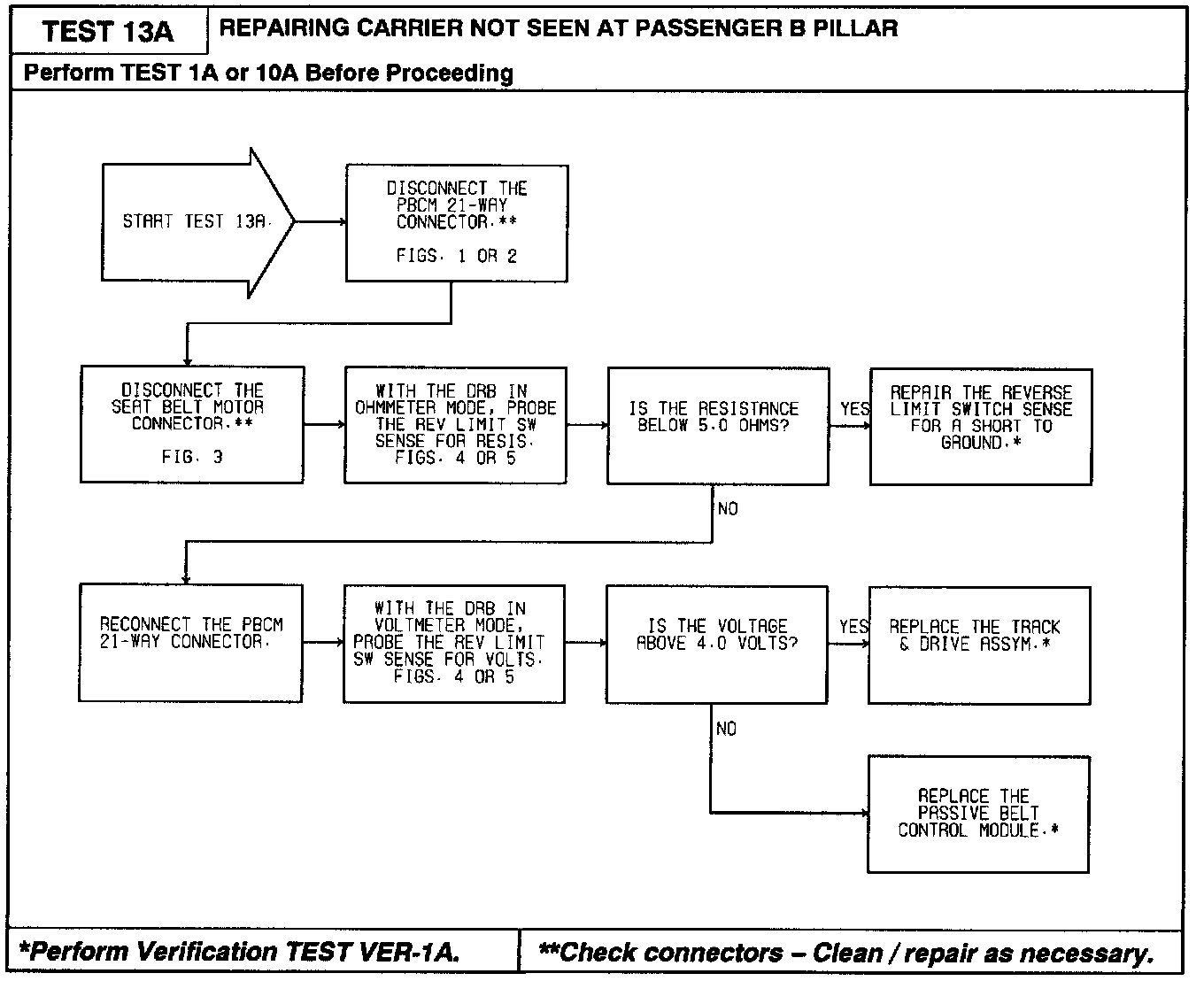

Diagnostic Chart:
Related Images:
