FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Dodge
>>
1994
>>
Shadow Convertible V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Seat Belt Systems
>>
12A Repairing Carrier Not Seen at Passenger A Pillar
12A Repairing Carrier Not Seen at Passenger A Pillar

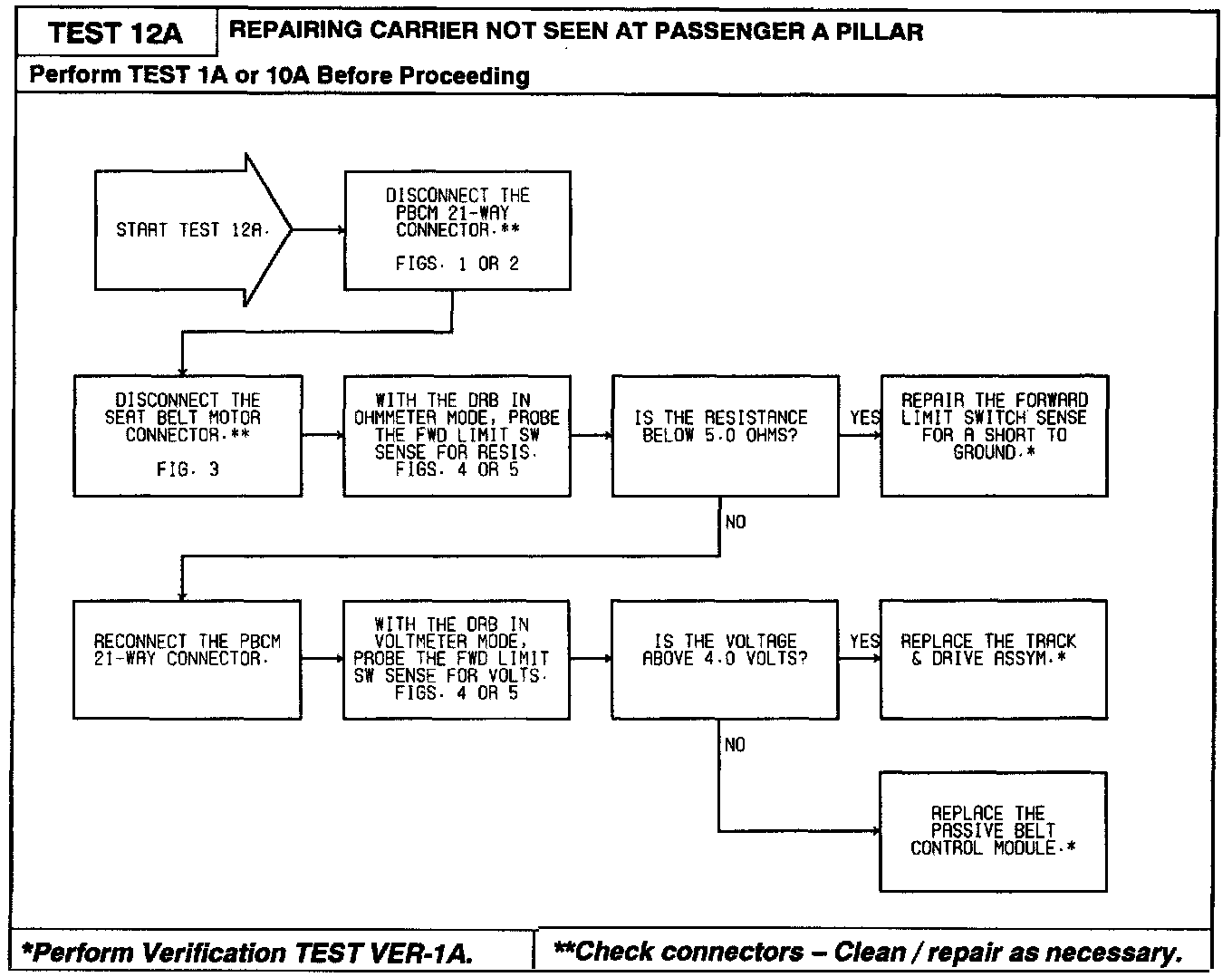

Diagnostic Chart:

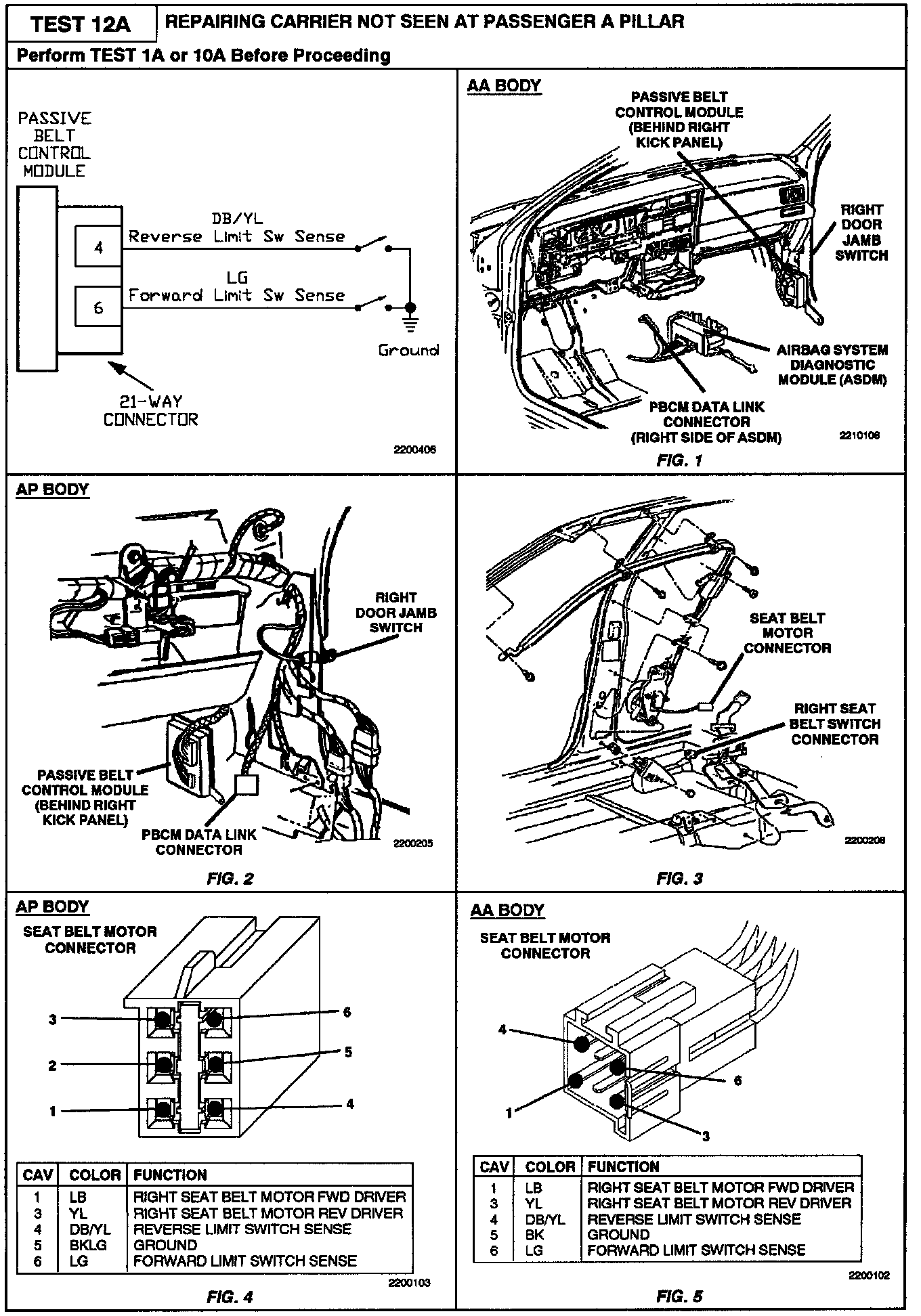

Related Images:
