2A ABS Warning Lamp Diode Circuit

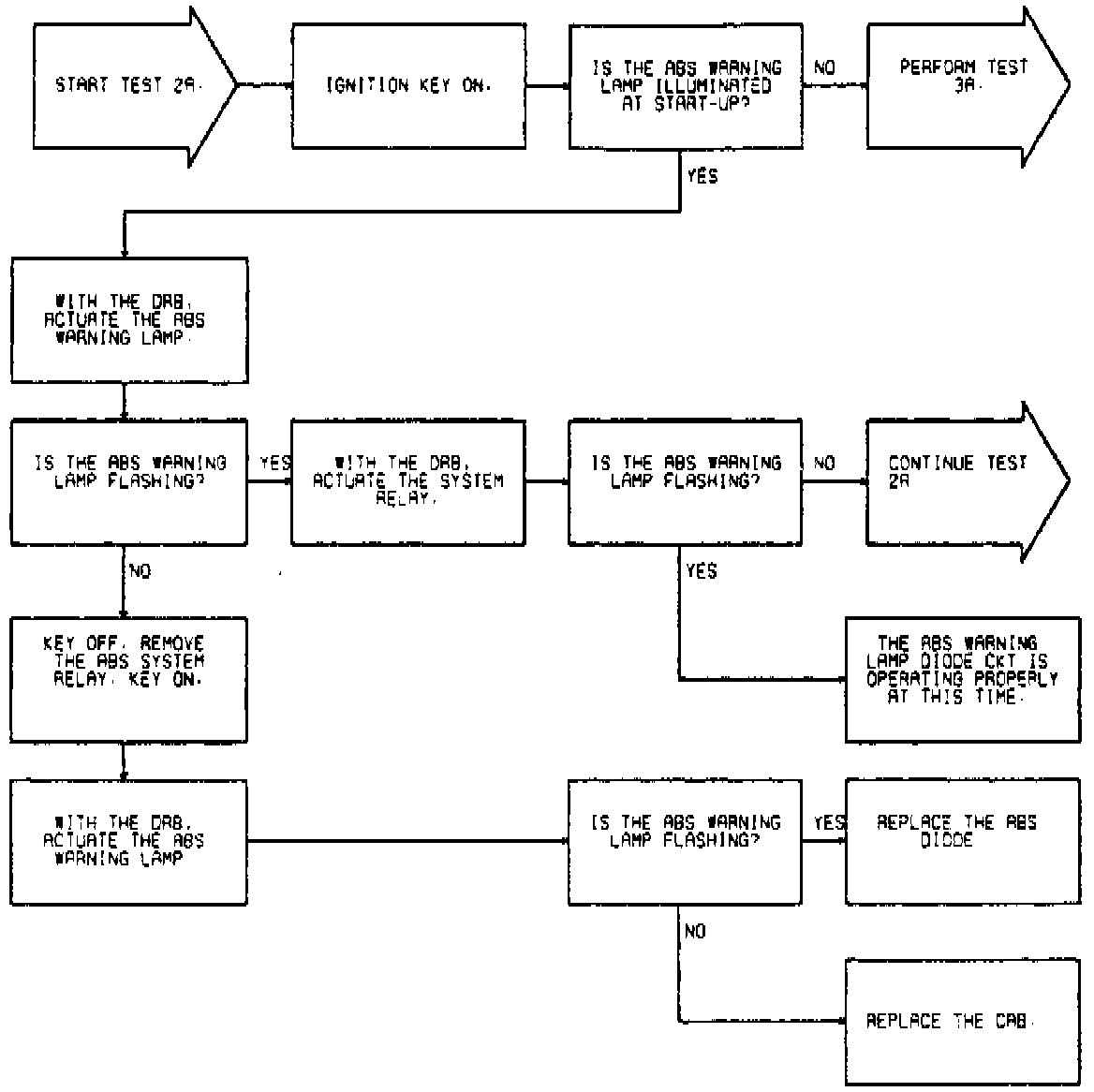

Fig. 153 Test 2A: ABS Warning Lamp Diode Circuit (Part 1 Of 3):

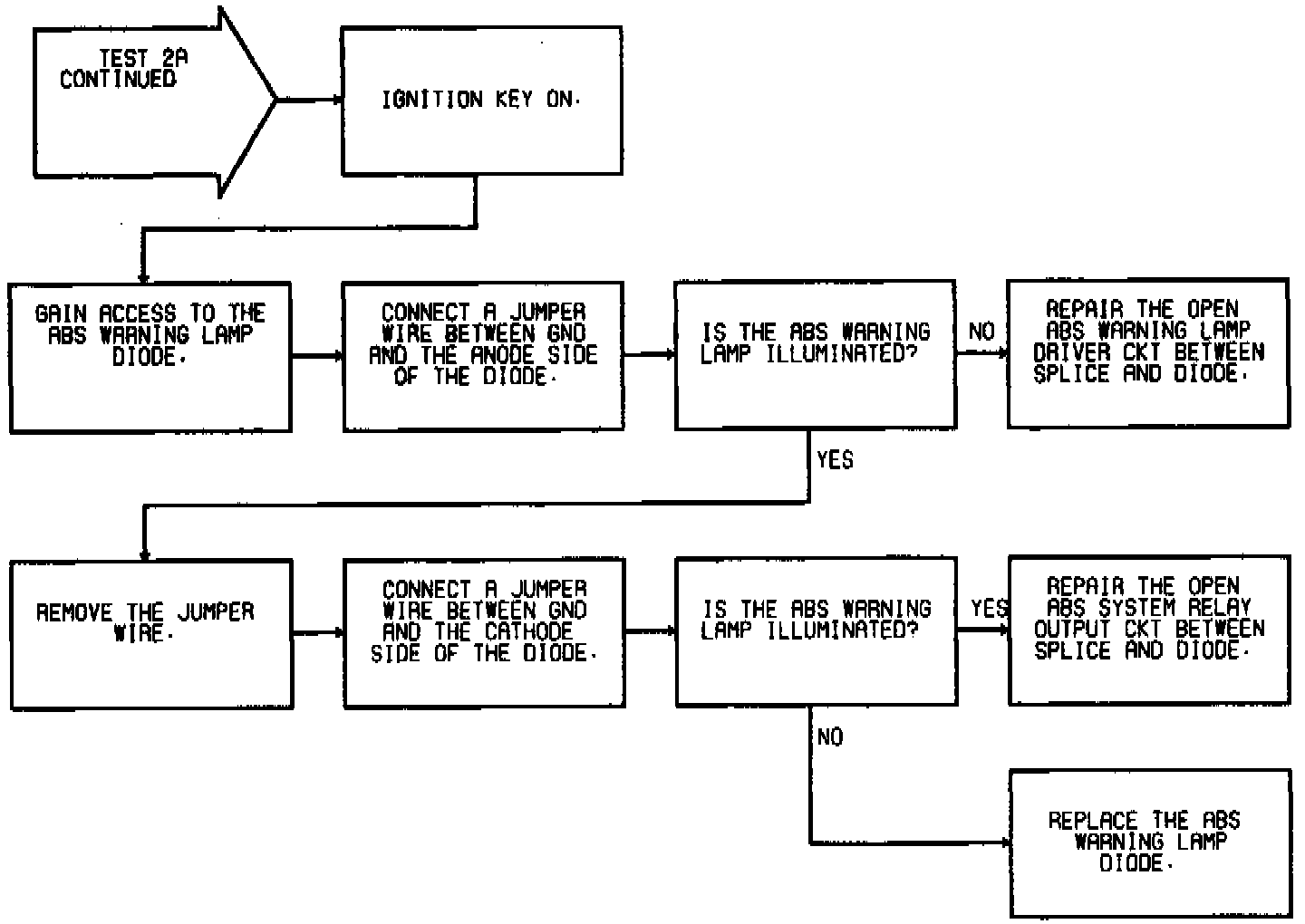

Fig. 153 Test 2A: ABS Warning Lamp Diode Circuit (Part 2 Of 3):

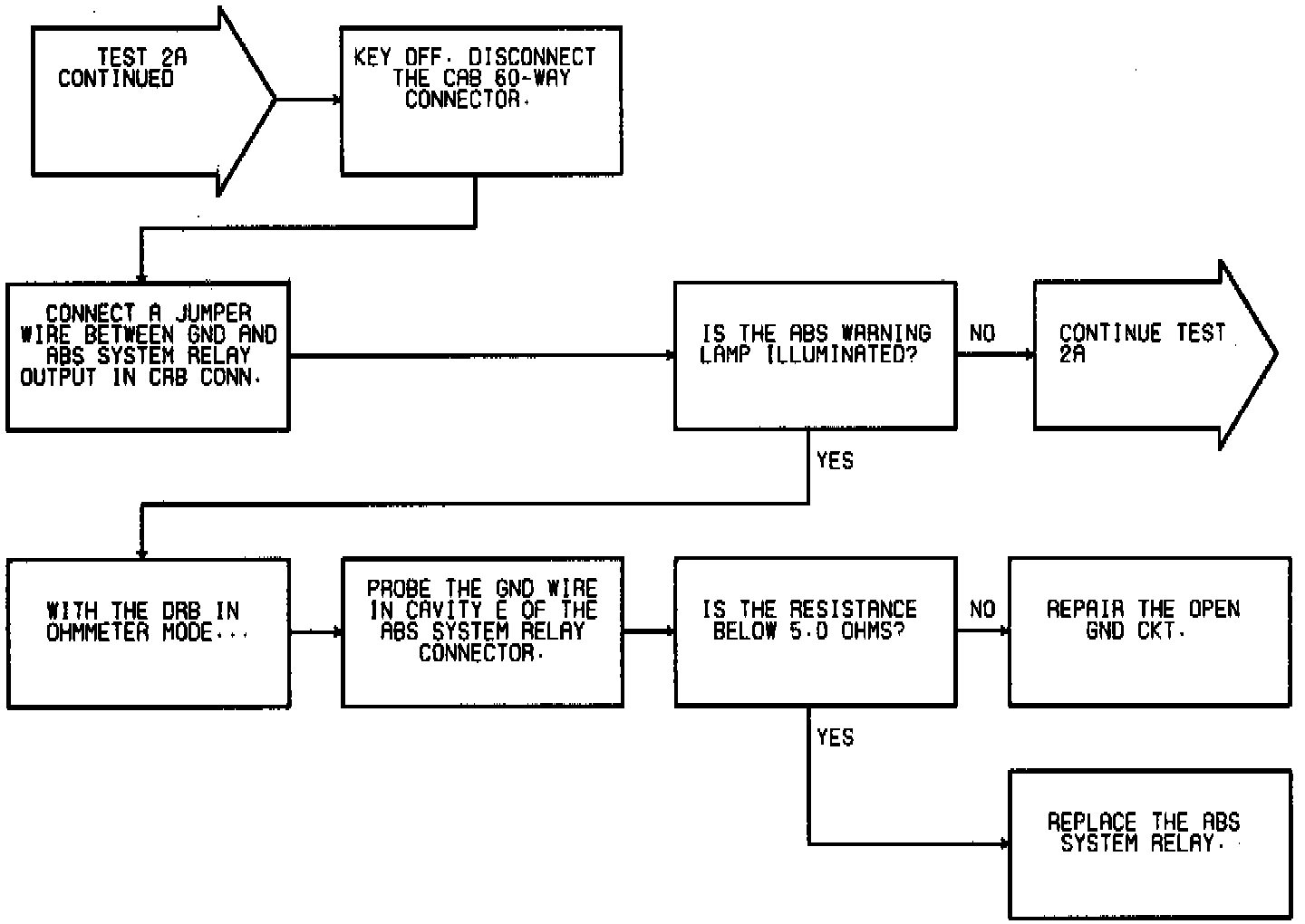

Fig. 153 Test 2A: ABS Warning Lamp Diode Circuit (Part 3 Of 3):
