Home >> Dodge >> 1994 >> Shadow Convertible V6-181 3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> 18A DRB Blank Screen

18A DRB Blank Screen

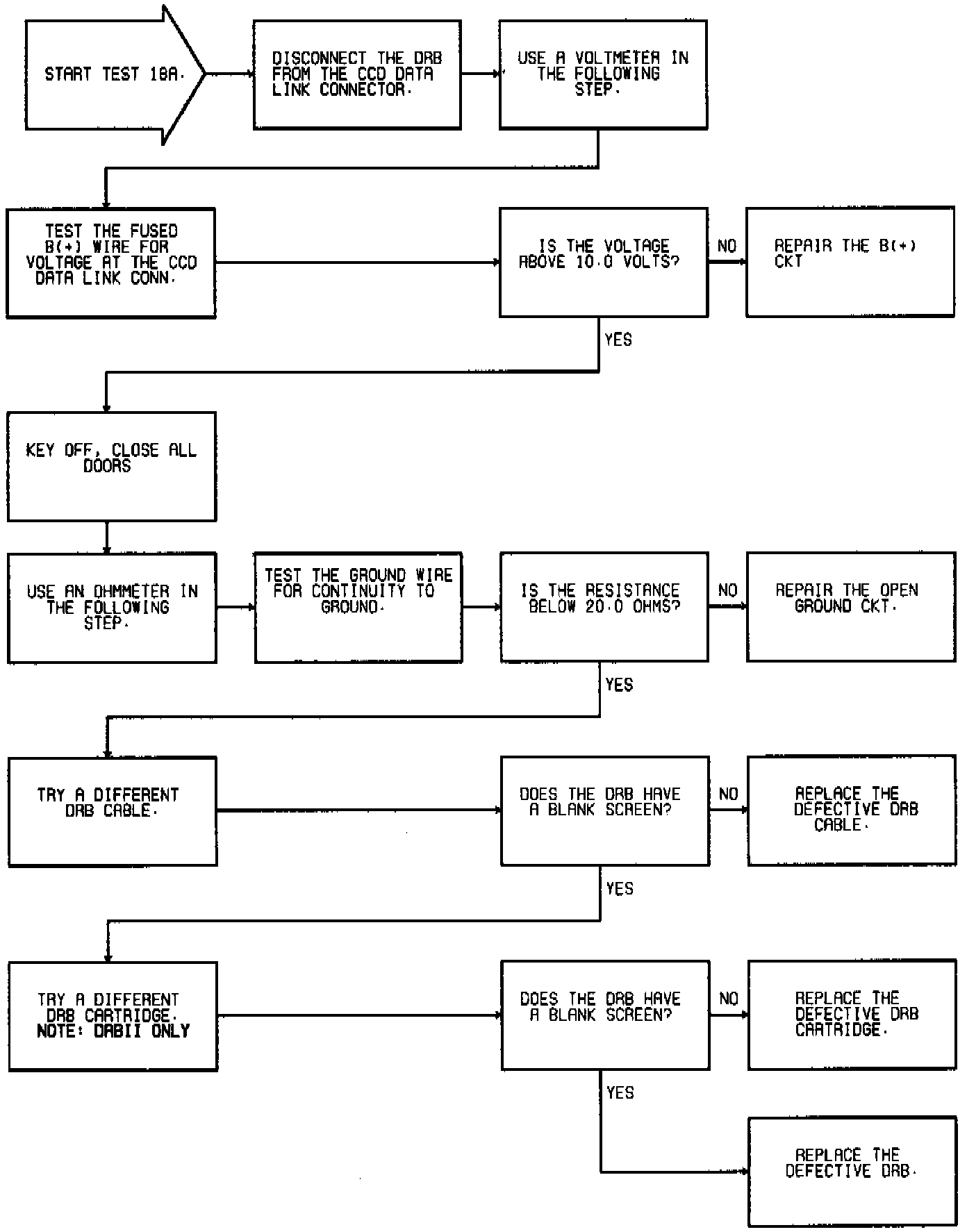

Fig. 194 Test 18A: Blank DRB Screen:
