A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
17A DRB "No Response" Message
17A DRB "No Response" Message

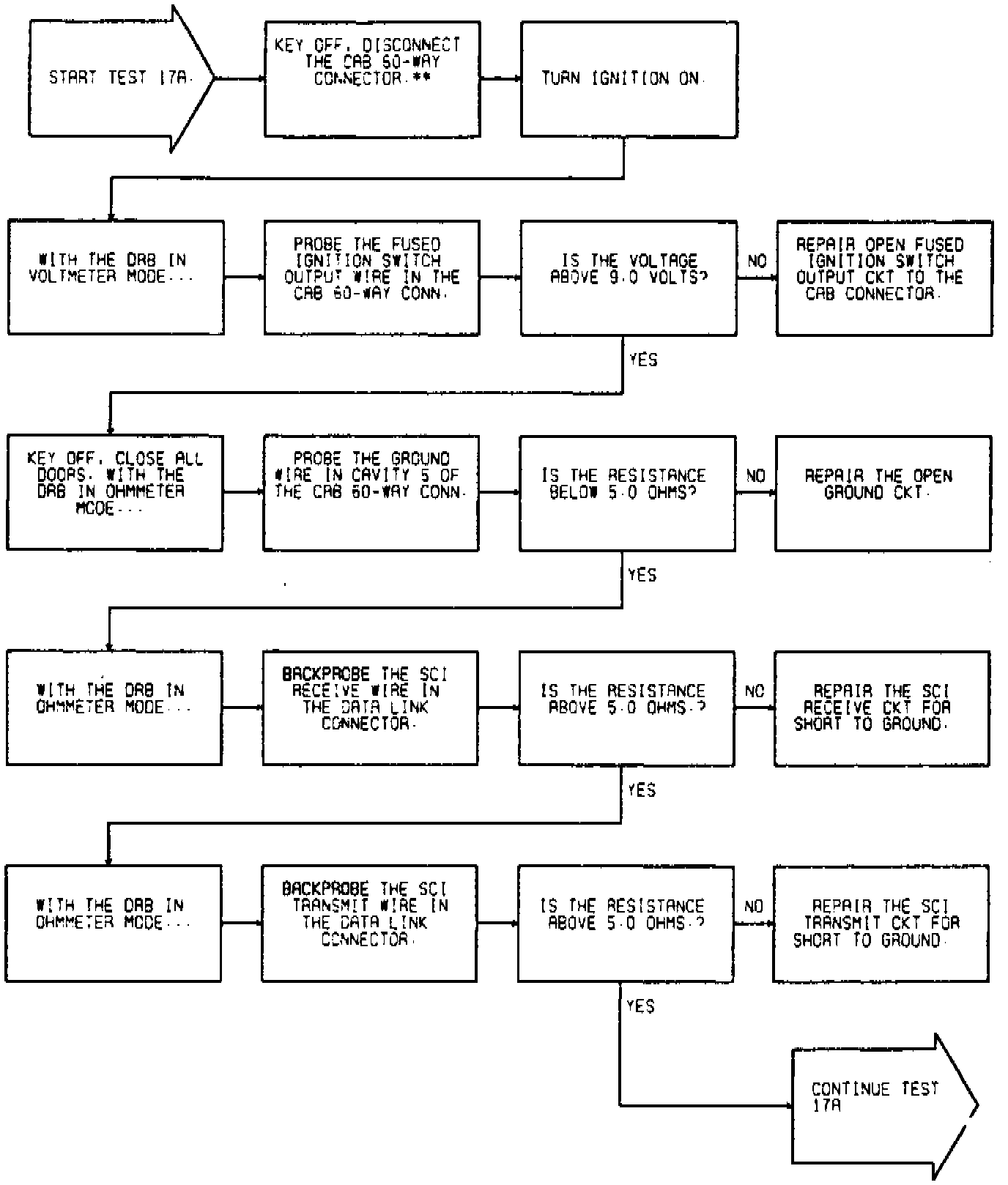

Fig. 193 Test 17A: DRB "No Response" Message (Part 1 Of 2):

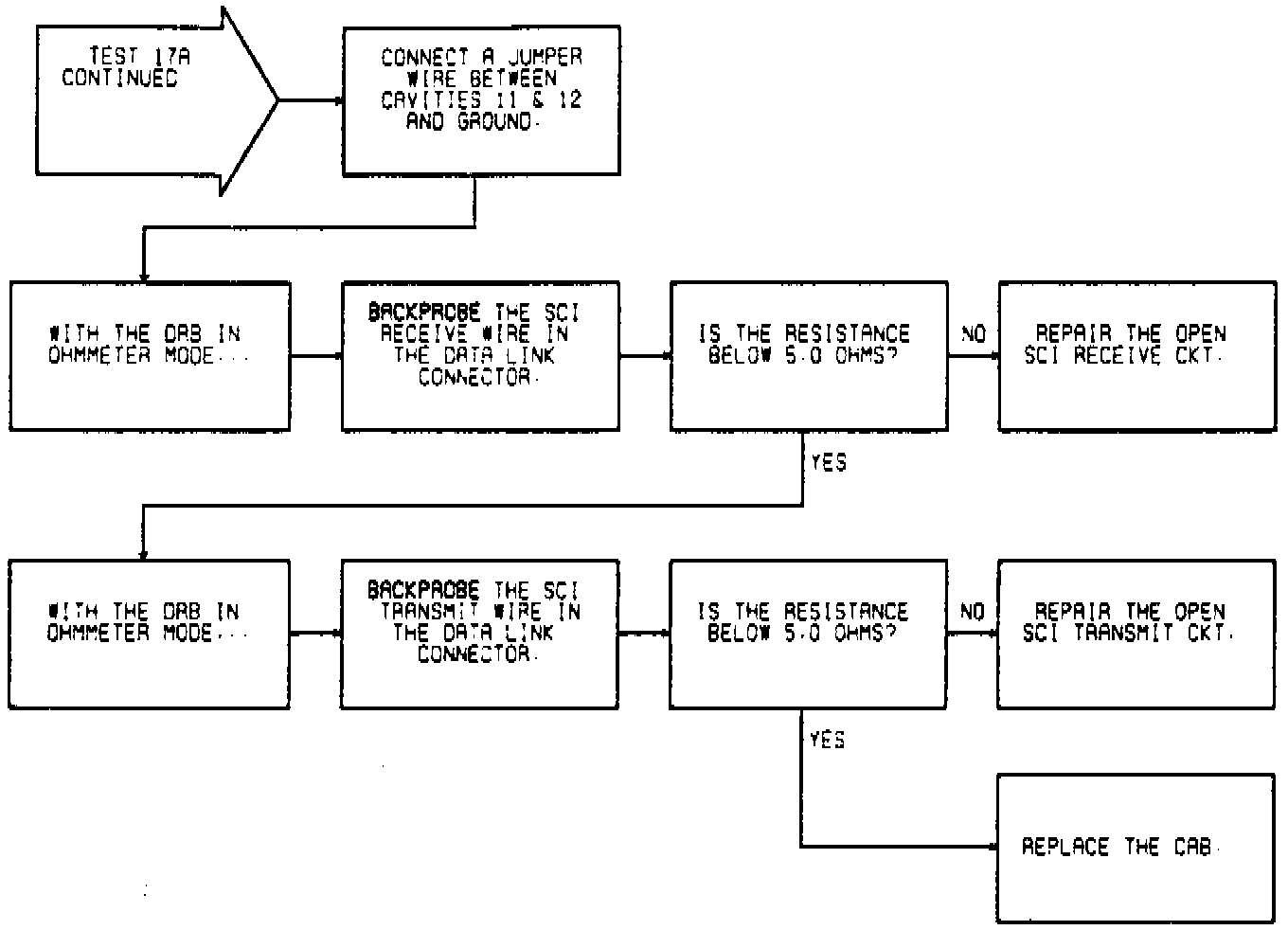

Fig. 193 Test 17A: DRB "No Response" Message (Part 2 Of 2):
