12A Right Front Wheel Speed Sensor
12A Right Front Wheel Speed Sensor

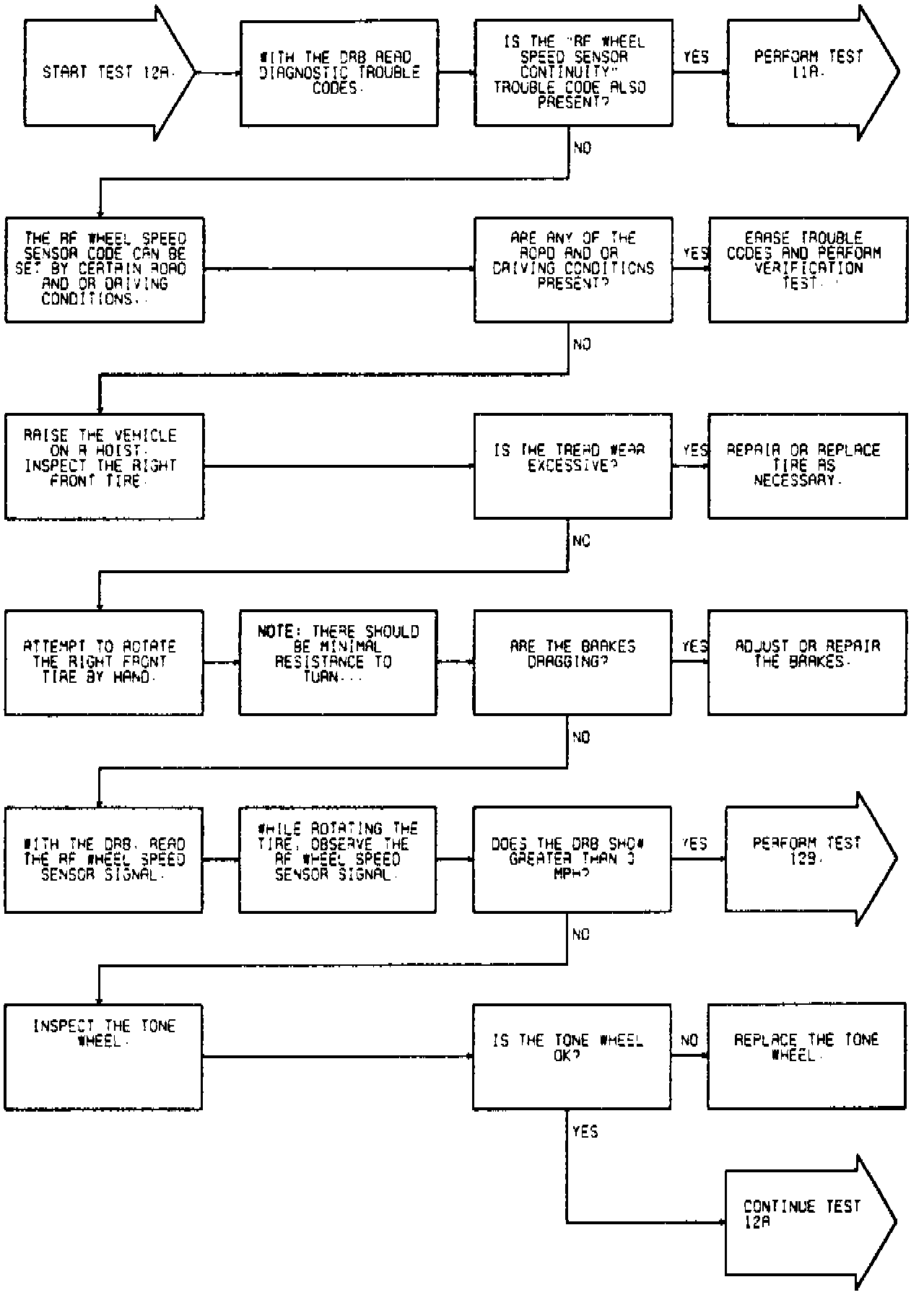

Fig. 180 Test 12A: Right Front Wheel Speed Sensor Circuit (Part 1 Of 2):

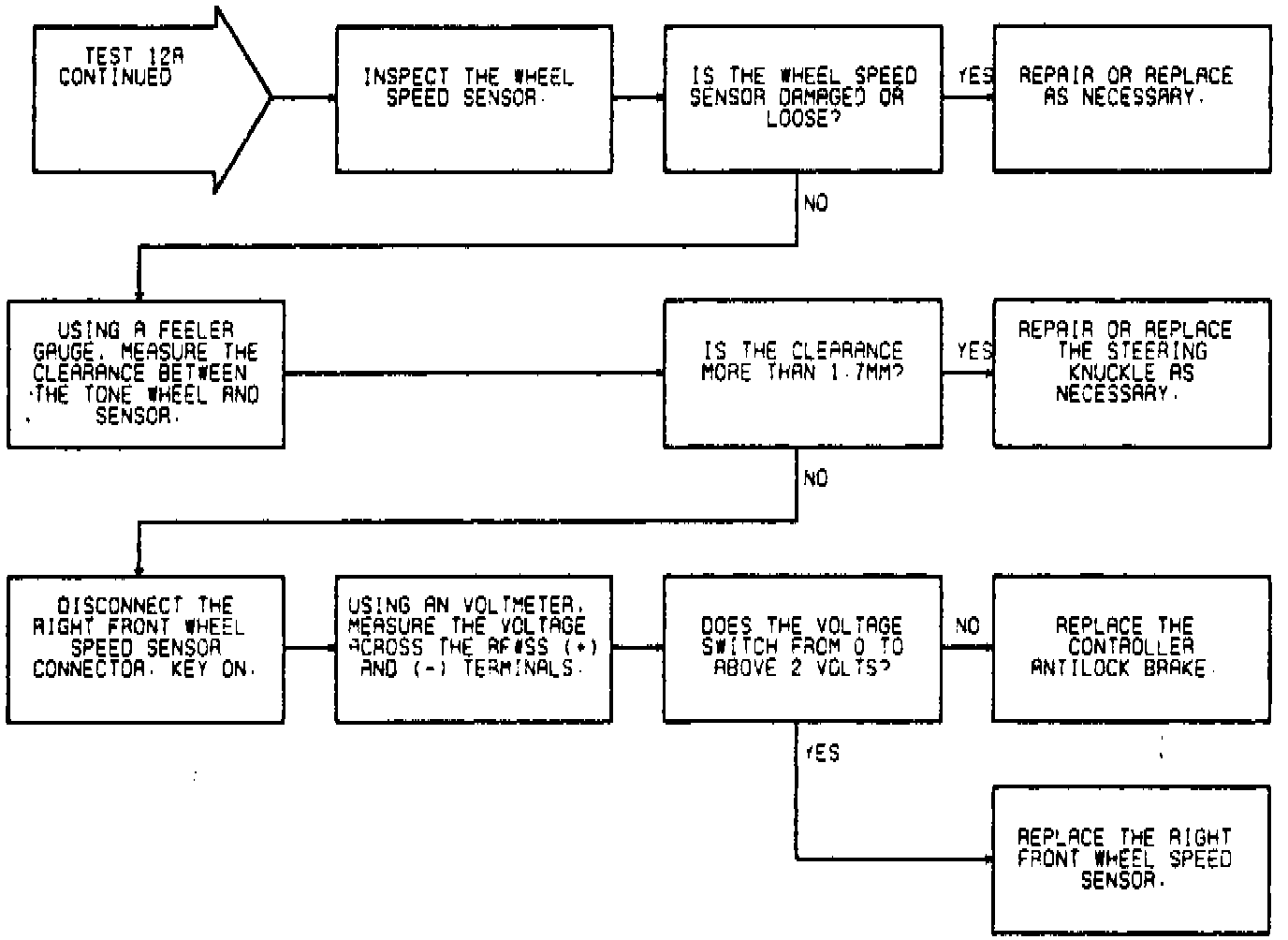

Fig. 180 Test 12A: Right Front Wheel Speed Sensor Circuit (Part 2 Of 2):
