A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
3A Repairing A "No Response" From the ASDM

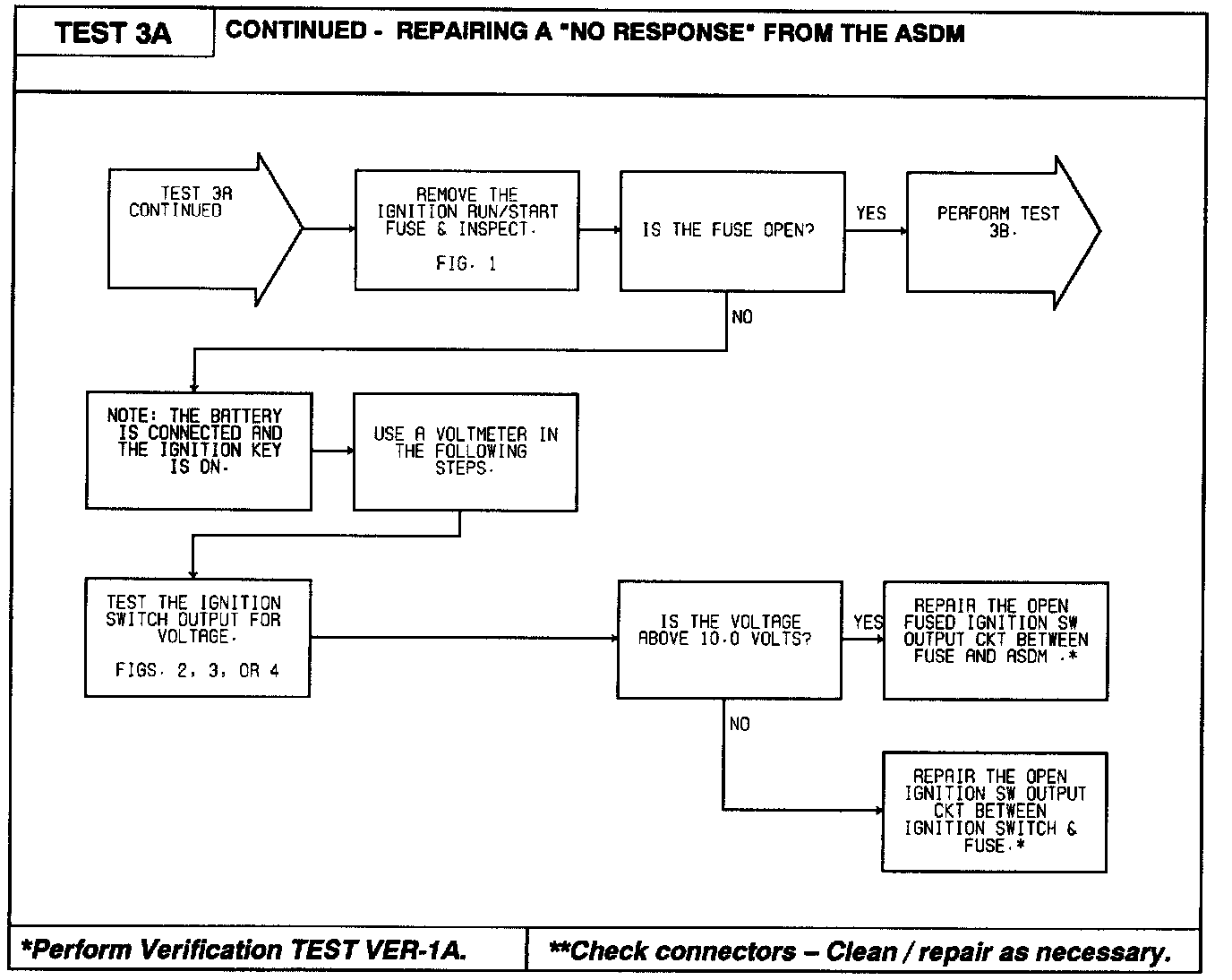

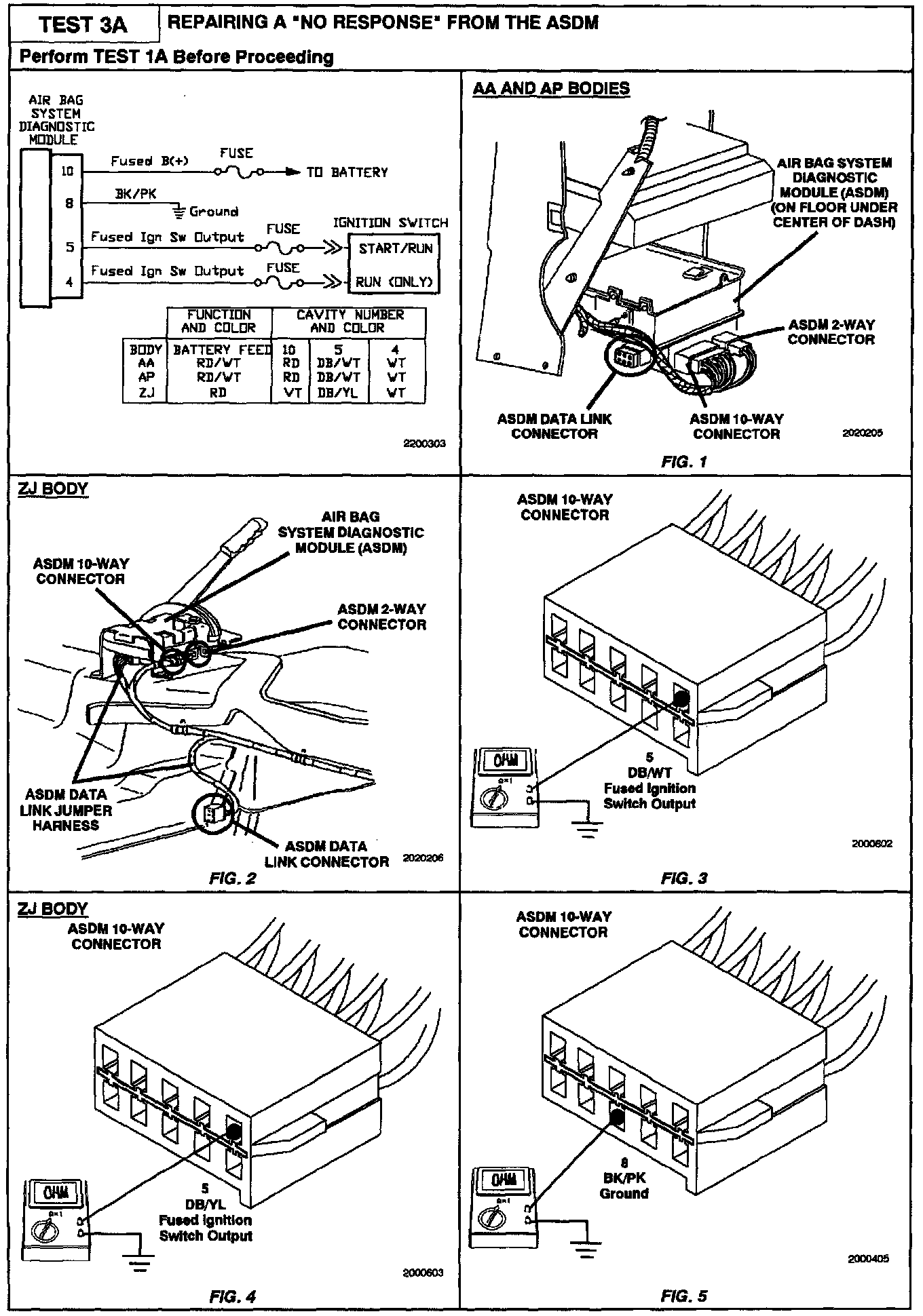

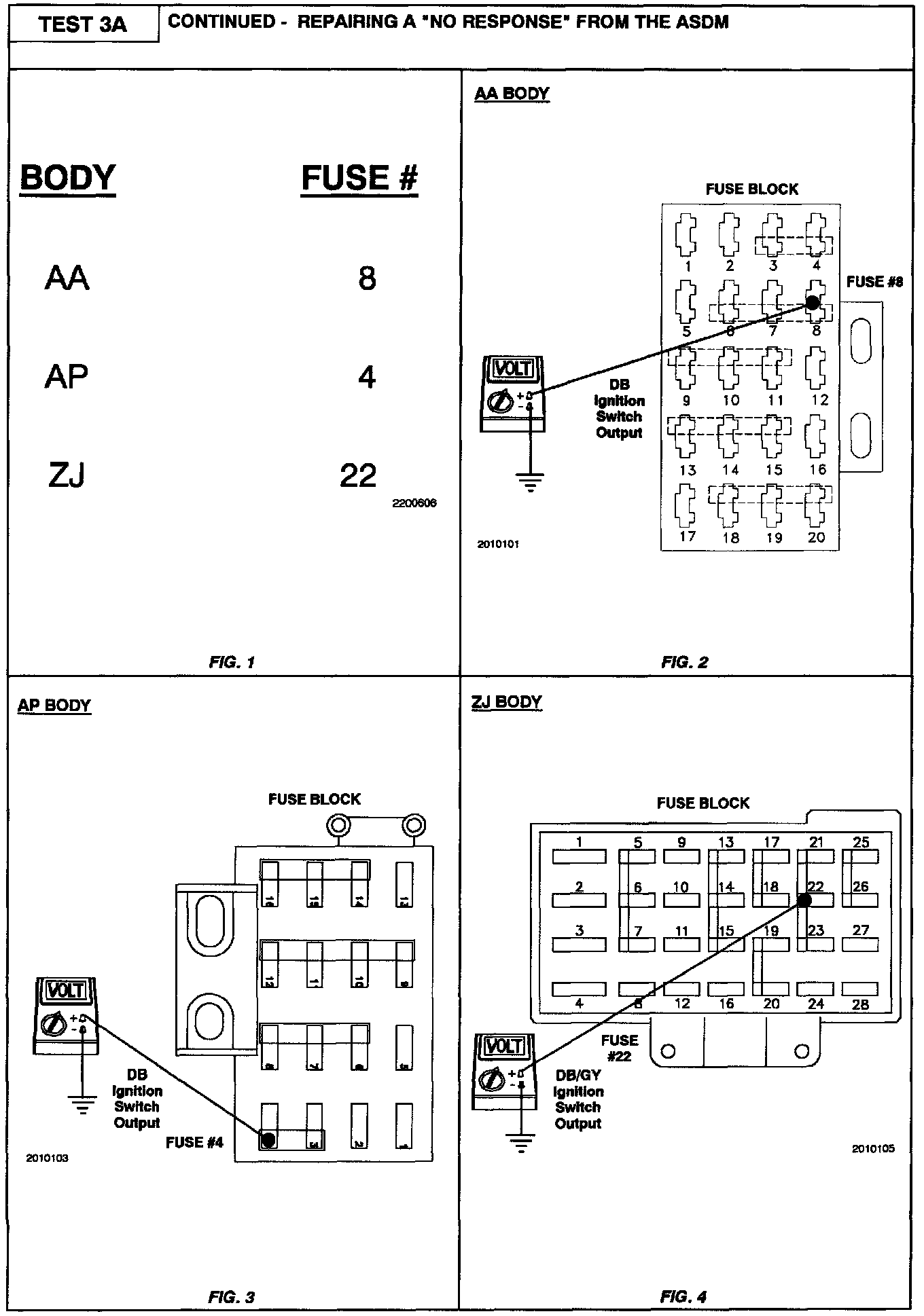

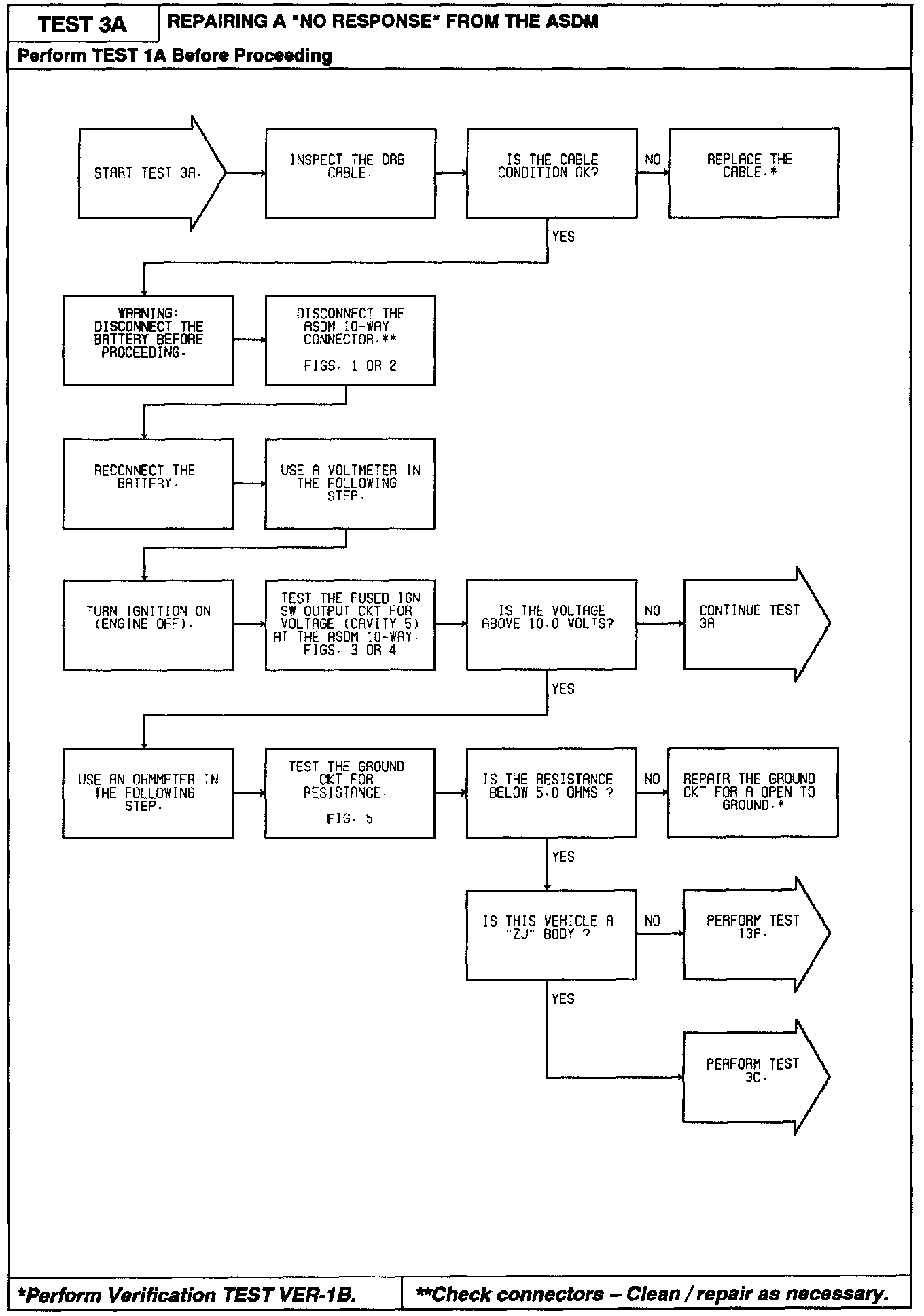

3A Repairing A "No Response" From the ASDM
Related Images:
Diagnostic Chart:
Related Images:
Diagnostic Chart:
