Shadow Convertible V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
12A Repairing Ignition 1 (Run/Start) Low
12A Repairing Ignition 1 (Run/Start) Low

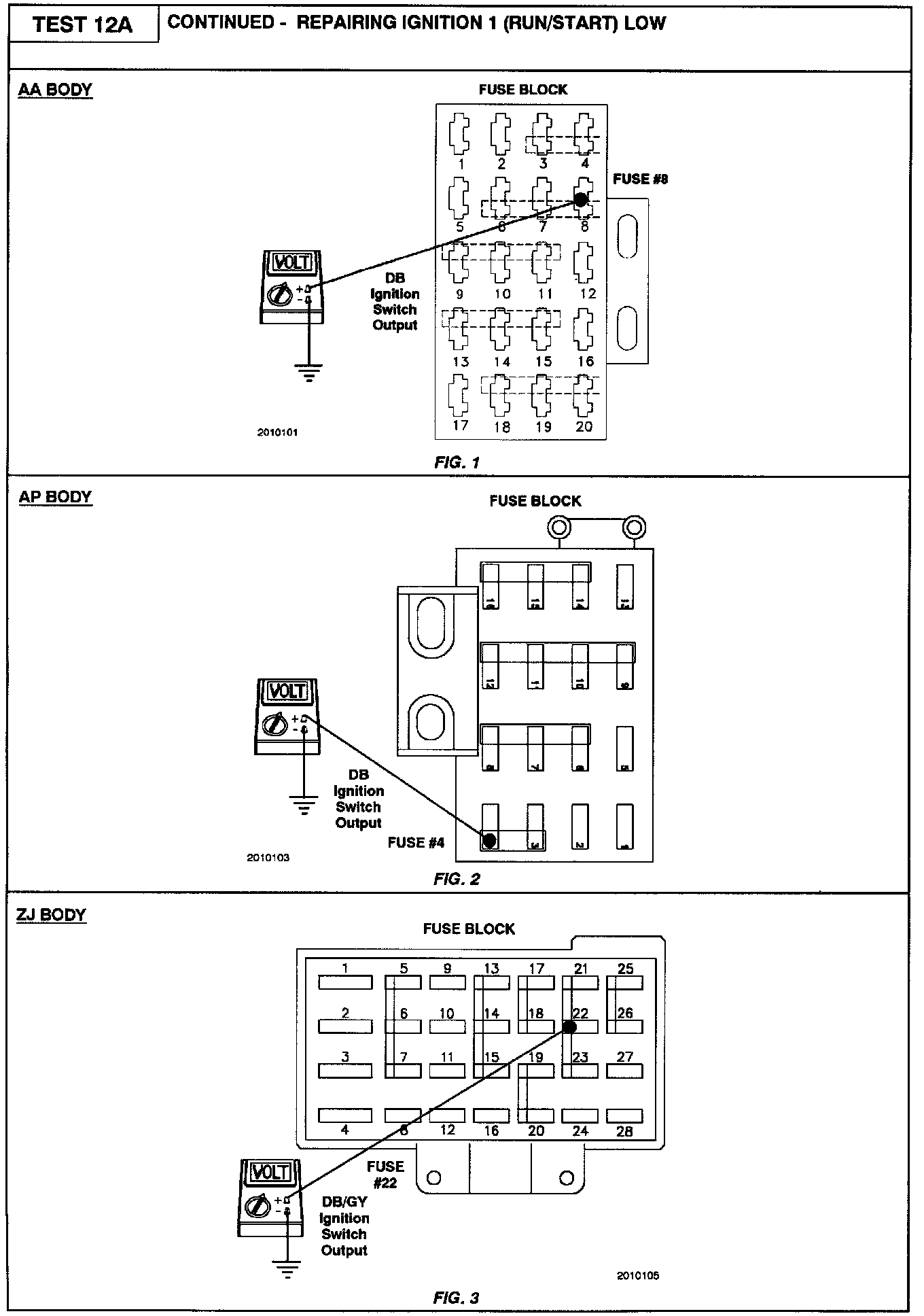

Related Images:

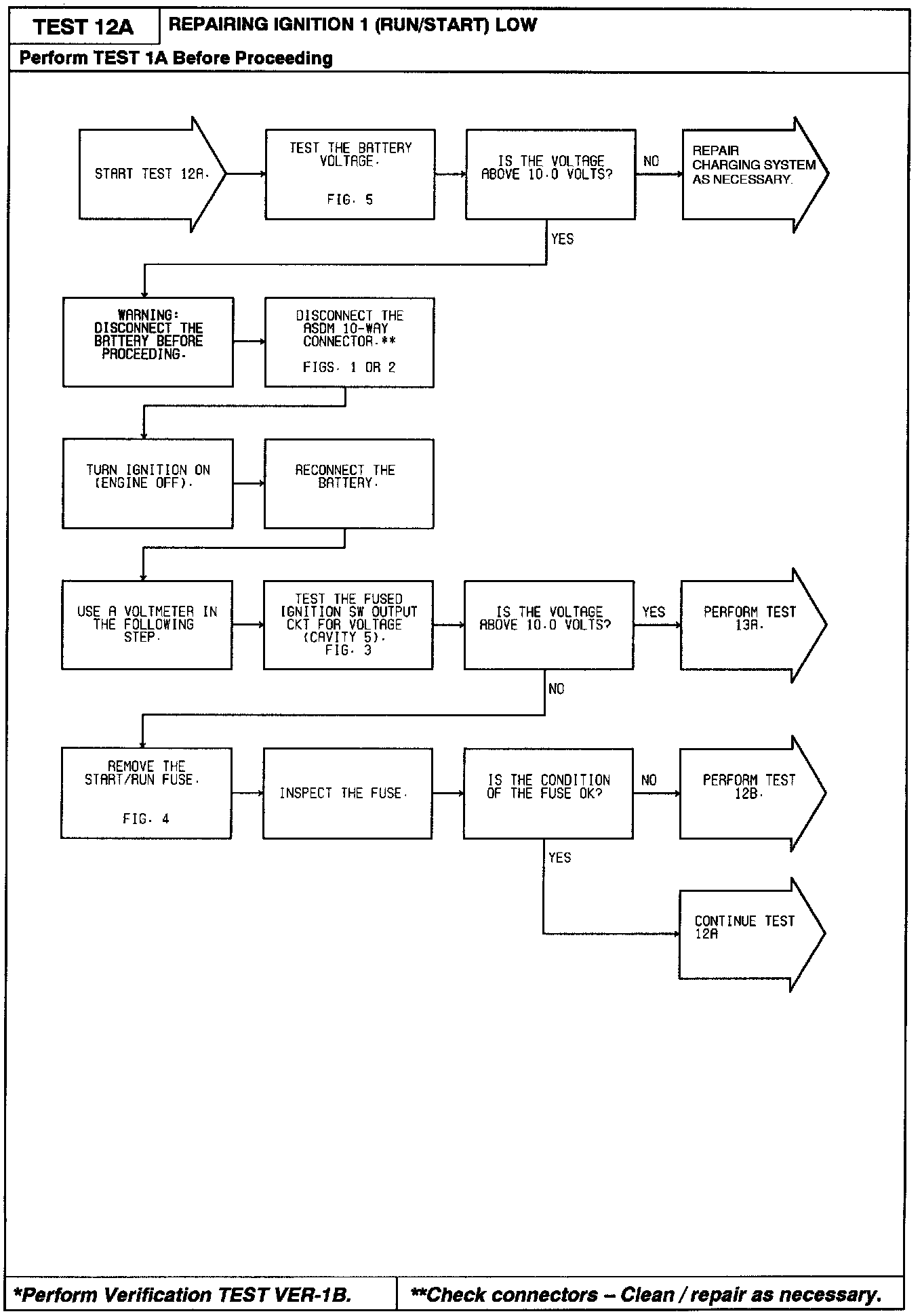

Diagnostic Chart:
Related Images:
Diagnostic Chart:
