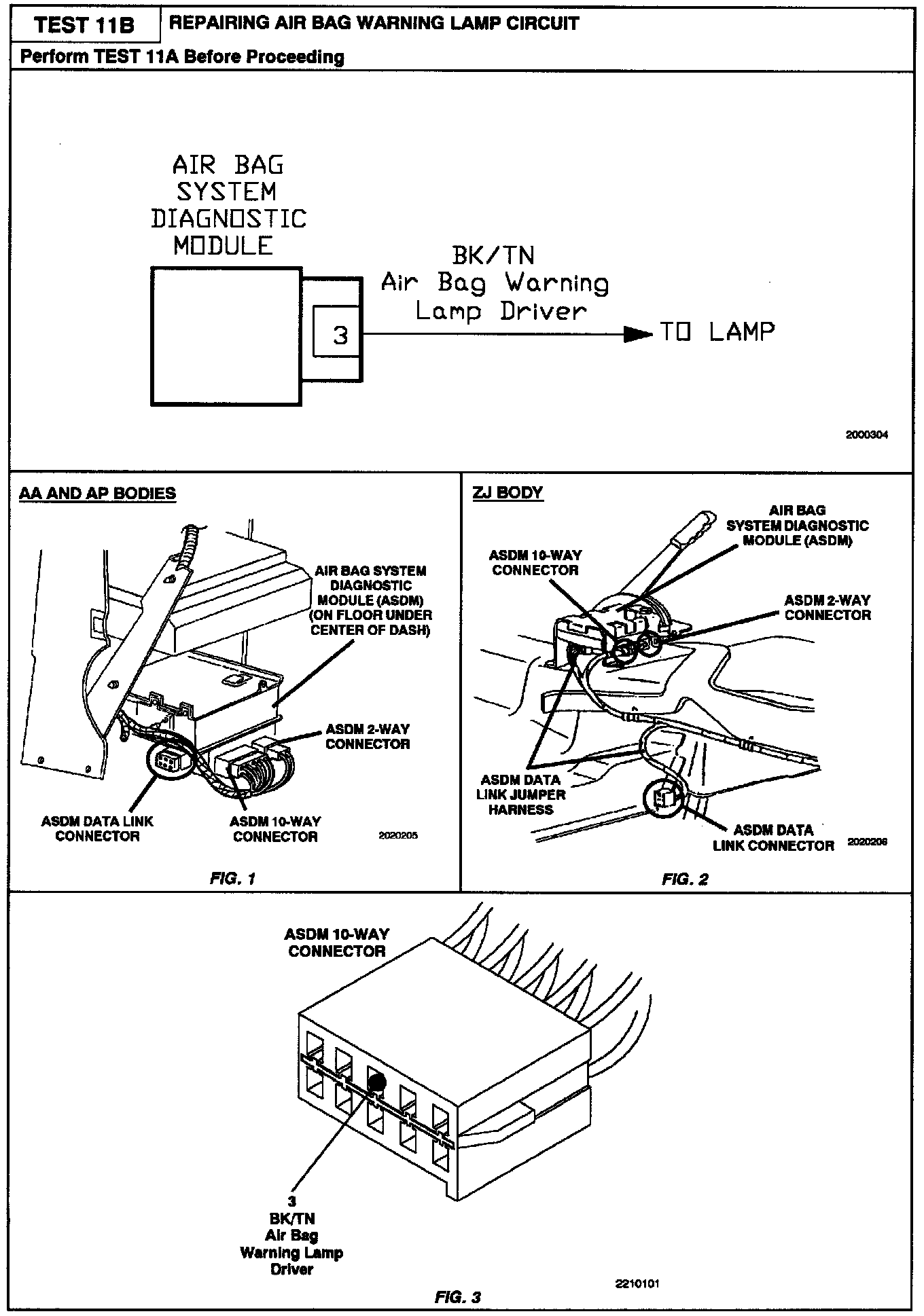

11B Repairing Air Bag Warning Lamp Circuit
11B Repairing Air Bag Warning Lamp Circuit

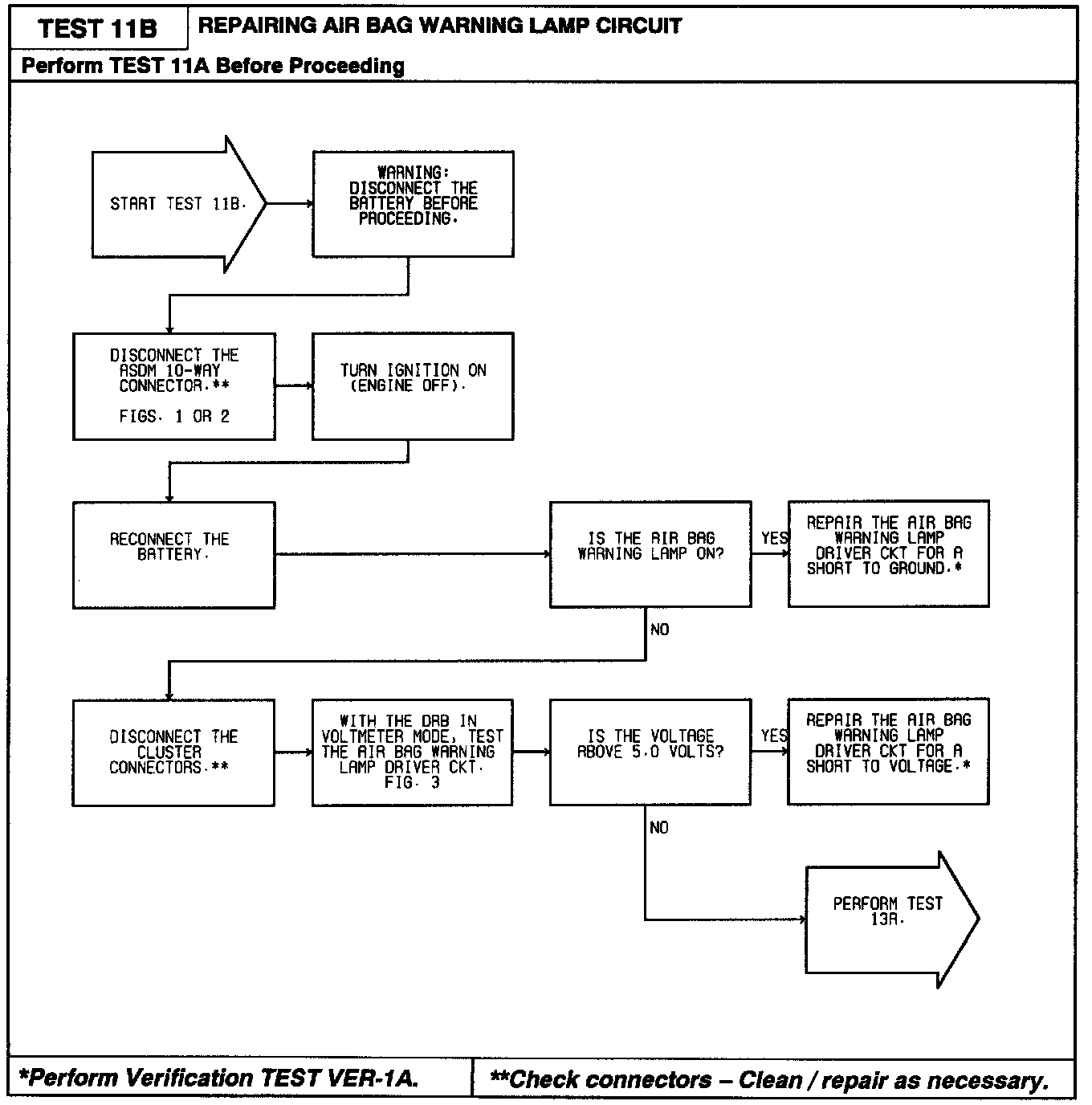

Diagnostic Chart:
Related Images:
