Shadow Convertible V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
10B Repairing Ignition 2 (Run Only) Low
10B Repairing Ignition 2 (Run Only) Low

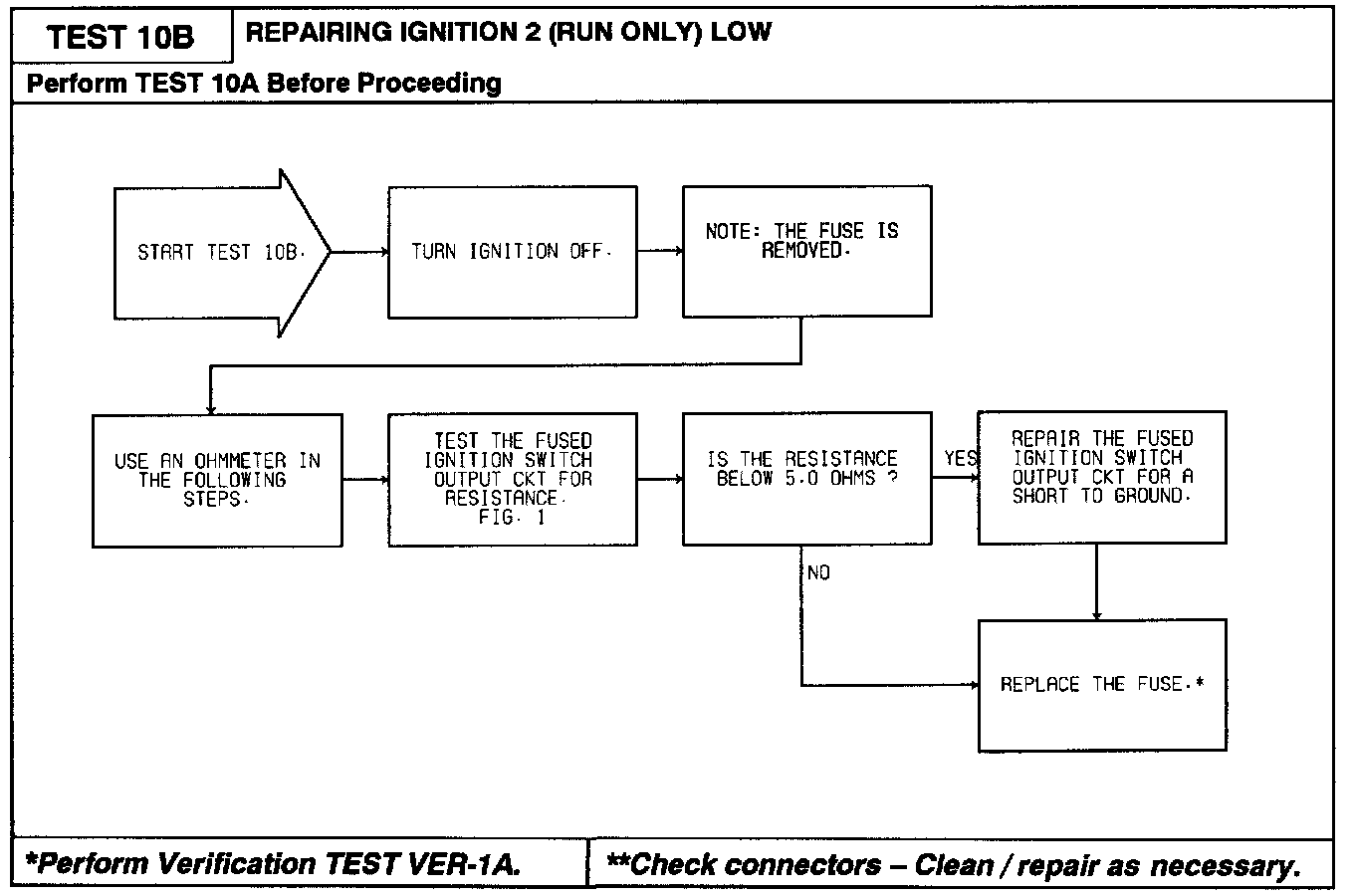

Diagnostic Chart:

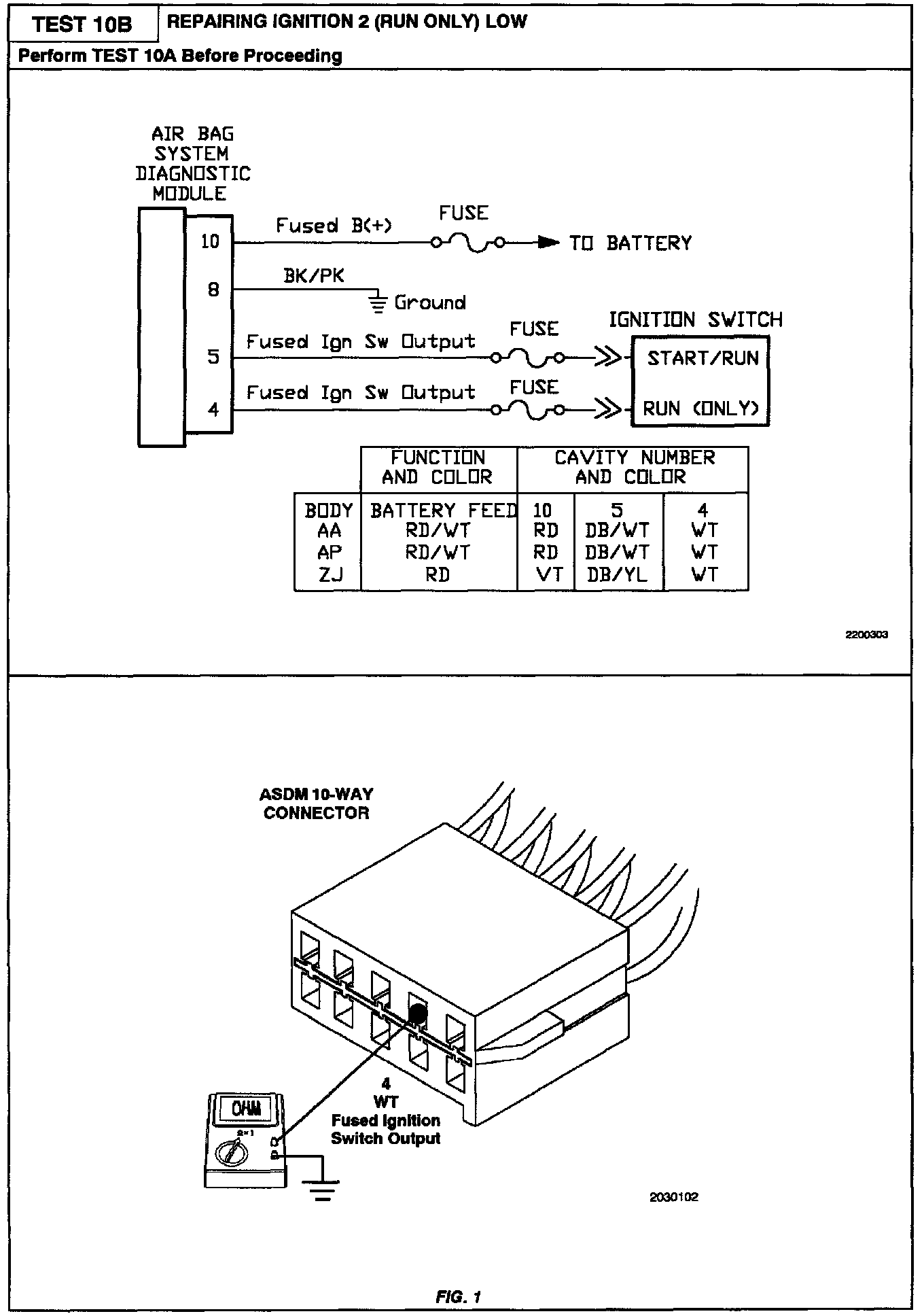

Related Images:
